DC1239 Collage Photo Wall Display Concept for 5×7 Inserts (15FT WALL)
Price range: $2,115.61 through $3,000.54 Select options This product has multiple variants. The options may be chosen on the product page
DC1239 Collage Photo Wall Display with Acrylic Frames for 5 x 7 Inserts
Description:
Transform your space into a captivating gallery with our Collage Photo Wall Display. This elegant system features sandwich-style acrylic frames for 5” x 7” photo inserts, mounted on a larger back panel with small standoffs for a ½” or 1” outward projection—or flush with screw caps only. It adds subtle depth while giving your photos strong protection, creating a clean, modern look perfect for offices, conference rooms, and entry areas. Simple to install with professional results every time.
Designed for versatility, you can arrange the frames in any pattern to fit your wall and create a truly custom collage. Swapping photos is quick and tool-free, so your display stays fresh whenever you want. Built with premium acrylic, this lightweight yet durable system will look beautiful for years to come.
- Backing Panel: ¼″ thick acrylic in clear, frost, matte white, or matte black for a clean, supportive base.
- Front Frame Set: ⅛″ thick clear acrylic back with non-glare acrylic front cover to protect and showcase your images without glare or distractions. Each frame holds one 5” x 7” photo insert.

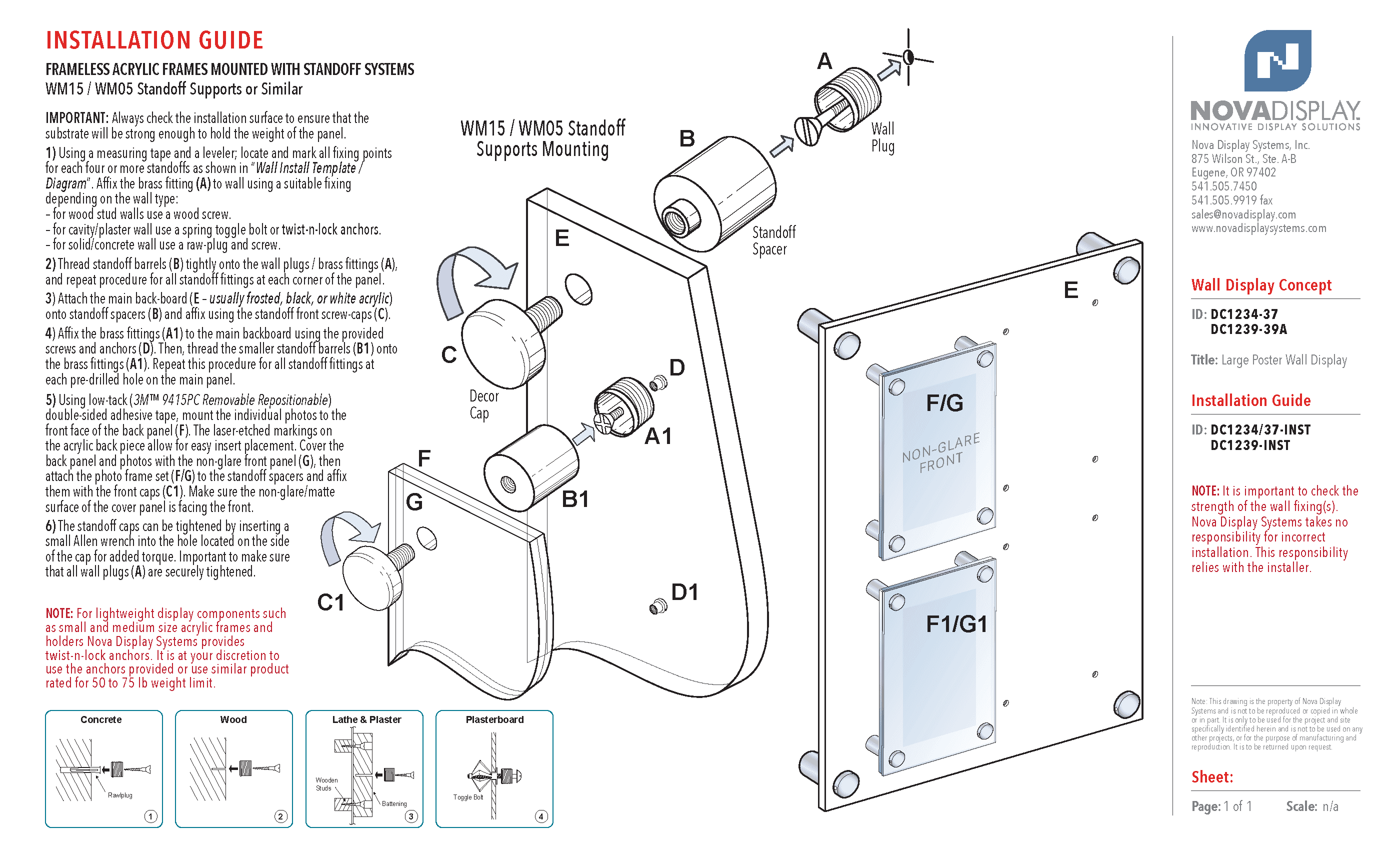

Standard standoff hardware is made from durable copper/brass alloy with a satin chrome finish for easy installation and a sleek modern look. *Select standoff hardware projection size on the product page.

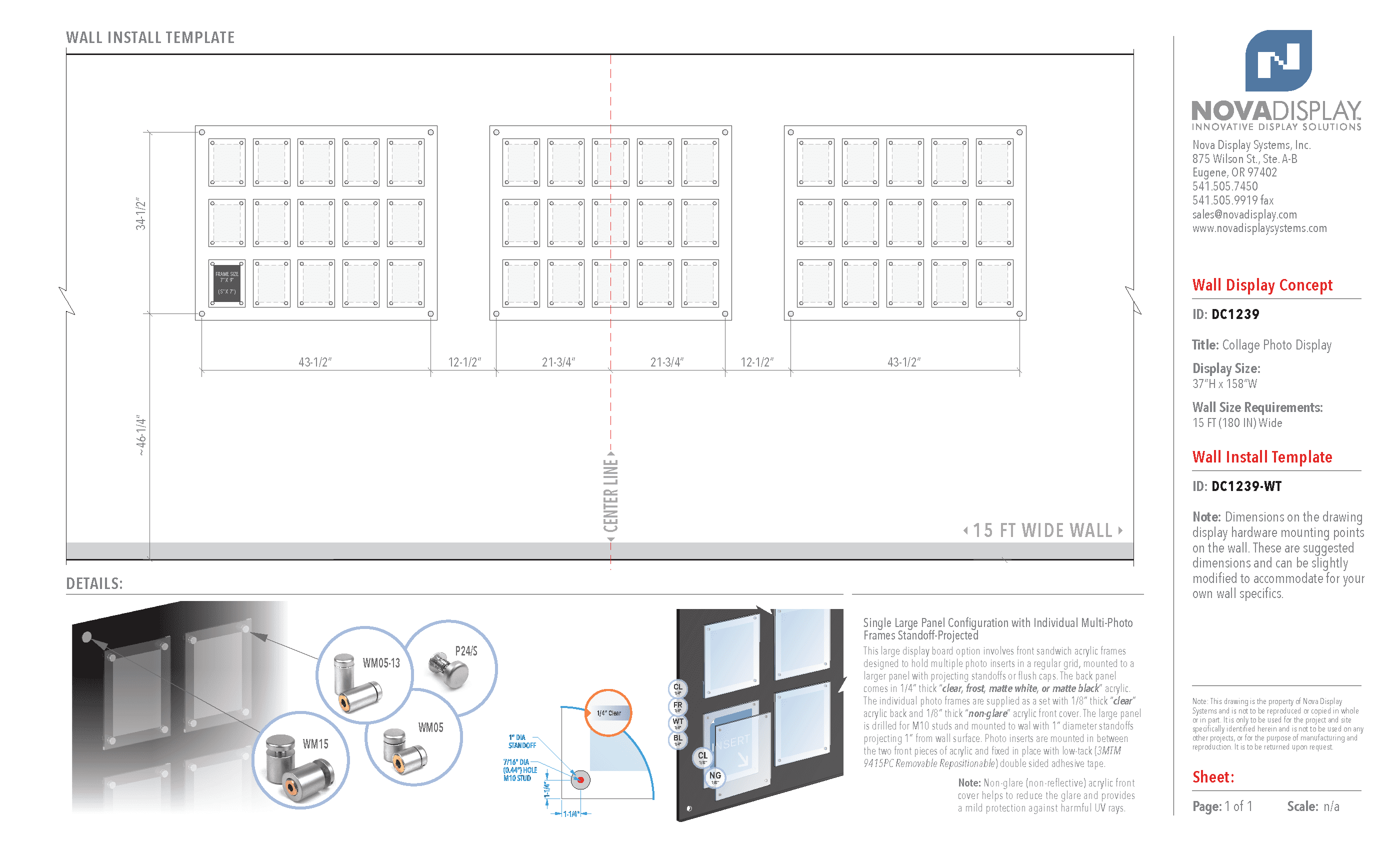

Size Requirements:

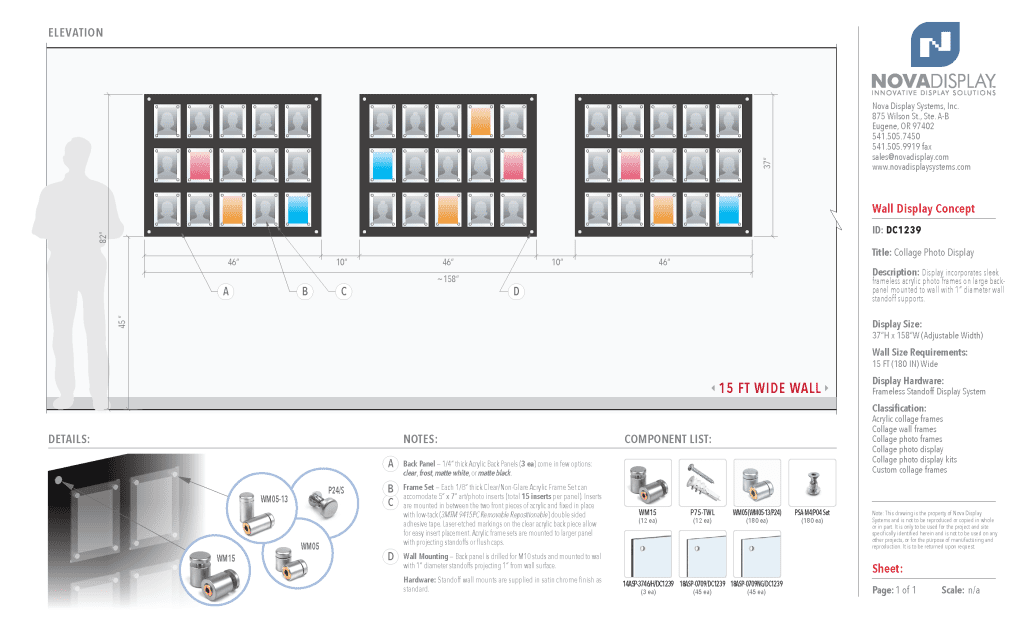

Overall Display Size: 158″W x 37″H
Wall Size: 15 ft (180 in) Wide
Component List:
- 14ASP-3746/H-M10/DC1239 (*CL/FR/WT/BL) – 1/4″ Acrylic Back Panel (3 ea)
Panel Size: 46″W x 37″H
Finish Type: Acrylic Back Panel/Backboard comes in few finish choices such as clear, frost matte, white matte, or black matte (*CL/FR/WT/BL). -
18ASP-0709/H-M4/DC1239 – 1/8″ Clear Acrylic Panel (45 ea)
-
18ASP-0709NG/H-M4/DC1239 – 1/8″ Non-Glare Acrylic Front Panel (45 ea)
Frame Size: 7″W x 9″H; Insert Size: 5″ x 7″ -
WM15 – 1″ Dia. Standoff in Satin Chrome Finish (12 ea)
-
P75-TWL – Twist-n-Lock Drywall Anchor Set (12 ea)
-
WM05-13 (*WM05 or P24/S) – 5/8″ Dia. Standoff in Satin Chrome Finish (180 ea)
Projection Type: Frame supports are available in a few options — ½” or 1” standoffs for outward projection, or screw caps only for a flush mount (*WM05-13 / WM05 / P24/S). -
PSA-M4/P04 Set – Anchor and Screw Set for mounting frames to back panel (180 ea)
Key Features:
- Attractive, modern appearance. Perfect for offices, conference rooms, or entryways.
- Provides a quick and easy way to change photo inserts.
- Photo inserts are mounted in between the two front pieces of acrylic and fixed in place with low-tack (3MTM 9415PC Removable Repositionable) double sided adhesive tape.
- Laser-etched markings on the clear acrylic back piece allow for easy insert placement.
- Works with standard prints or paper posters up to 135 gsm or 1 mm (1/32′′) thickness.
- Non-reflective acrylic front used to reduce the glare from sunny windows and spot lighting.
- Customizable to your needs at no extra cost.
Availability & Customizations:
- Fabrication Time: 5-10 Bus. Days
- For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form
Add-ons:
- Raised Letters / Logo Signage
Order dimensional / raised letters or logos to come with your newly purchased display. Letters are manufactured out of 1/4” thick acrylic and supplied in white or black acrylic with matte (satin) finish face and double-sided tape on the back for wall mounting. To order raised letters go to “Laser-Cut Acrylic Letters” store page and select a font style, letter size, finish, and submit your graphic file. For custom font styles and logos send your vector files to receive an estimate using our “Quote Request Form“.
