DC2602 Recognition Wall Display Concept (16FT WALL)
$2,123.82 – $2,128.86

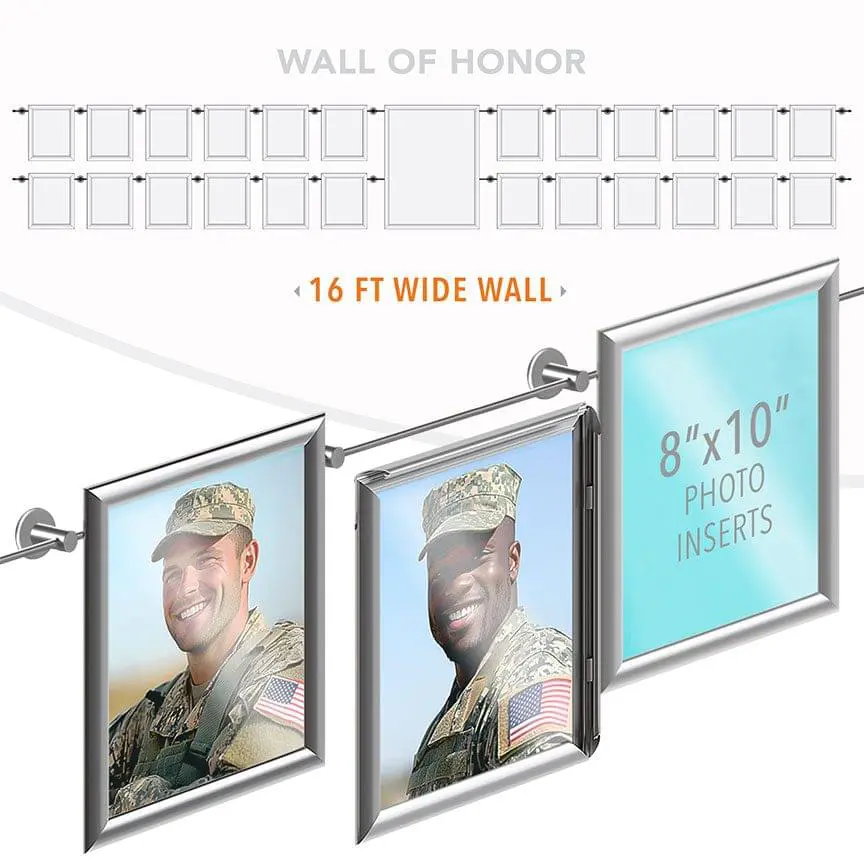

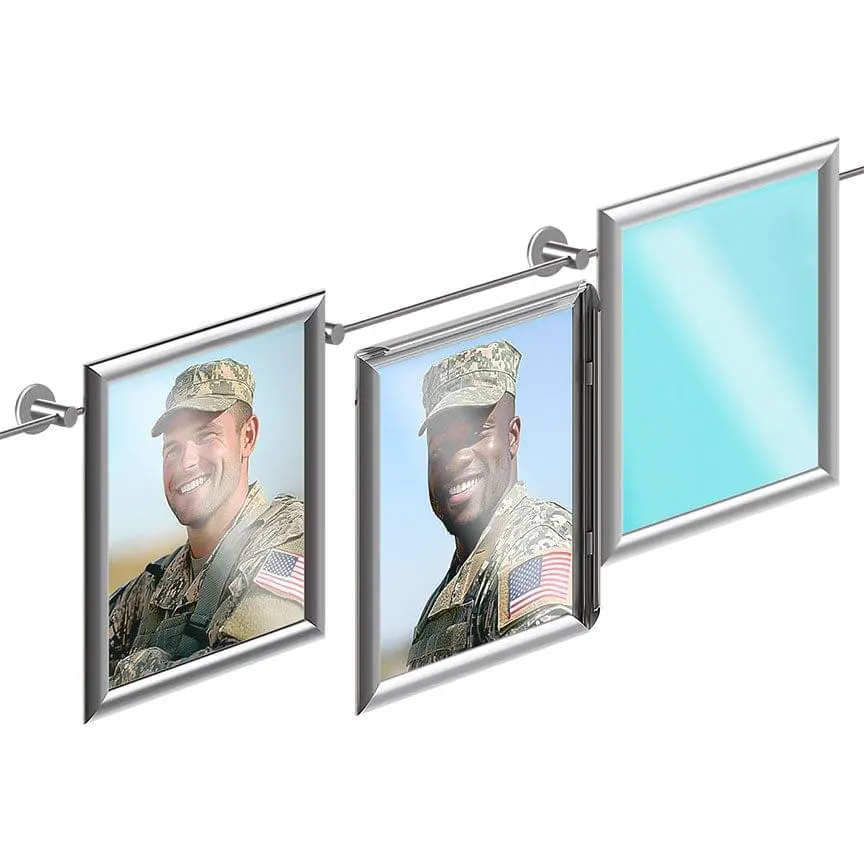

Recognition Wall Display / Wall of Honor – incorporates aluminum snap-open front load frames for 8” x 10“ photo inserts and 18” x 24“ info/poster inserts mounted to wall with rod display system. The display is durable, elegant, and ideal for displaying photos, certificates, and documents that require frequent updates. Aluminum frames are mounted to wall using 6mm horizontal rods which can be joined together for longer lengths. Frames can be easily rearranged or removed. Display comes with wall mounts made of brass in satin chrome finish, steel rods in natural brushed stainless finish, and aluminum frames with round or square profile styles finished in silver or black. *Select frame profile style and finish type below.
Overall Display Size: 172″W x 40″H
Wall Size Requirements: 16 ft (192 in) Wide
PROJECT DETAILS & DOWNLOADS:
Follow the link below for additional details on DC2602 Recognition Wall Display

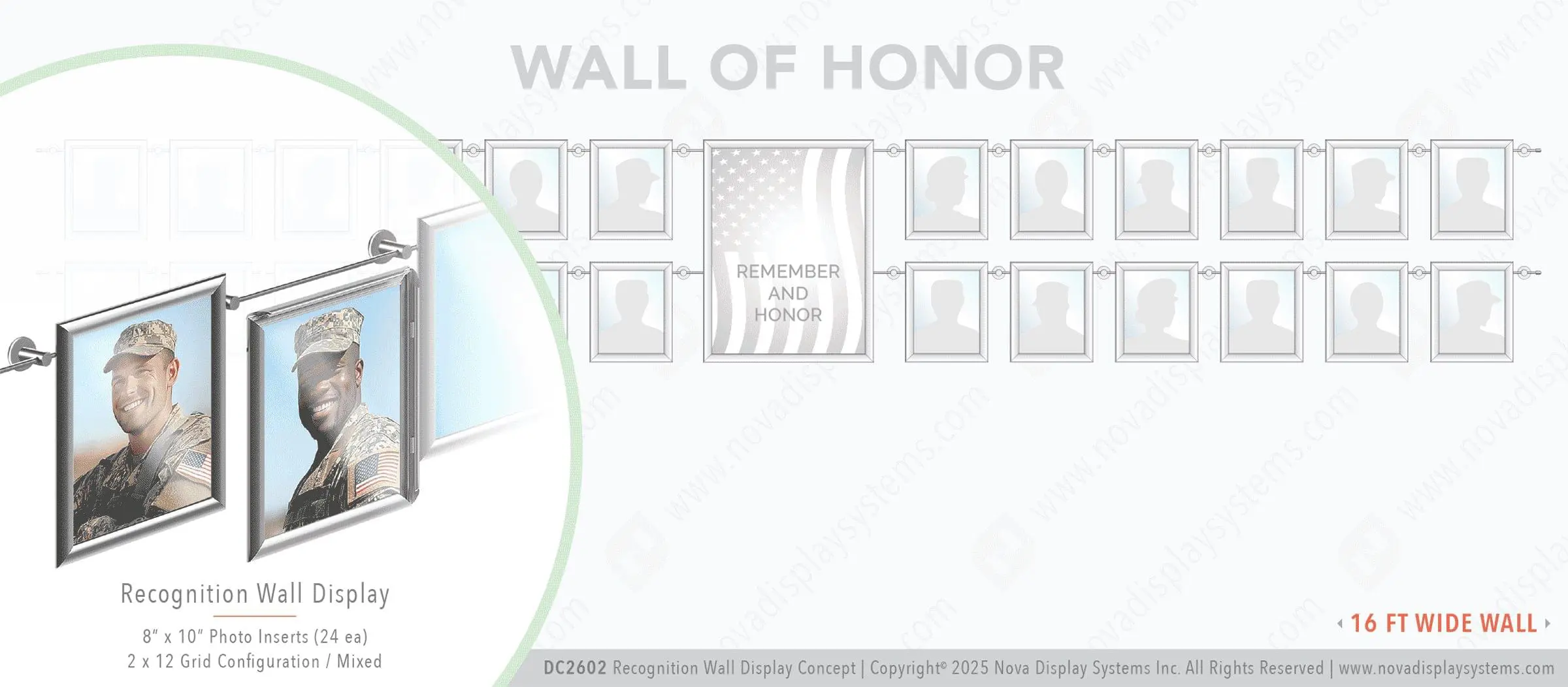

- Concept Layout
- Wall Template
- Install Guide
*Aluminum Frames are Made-to-Order (MTO) – All sales are final, no returns, no exchanges. Please read our WebStore “Terms & Conditions Policy“.
Product Description
DC2602 Recognition Wall Display Concept / Wall of Honor / 16ft Wall
PROJECT INCLUDES:
SW-12FF100-0810 (*R/SQ) – Front-Load Aluminum Frame for Photo Inserts (24 ea) / *Select profile style and finish type above.
Insert Size: 8″W x 10″H
SW-12-0306/8×10 – 0.030pt thick PETG Liner / Clear Protective Film (24 ea)
Film Size: 8″ x 10″
18HAP-0707/6mm – Acrylic Back Hanger / Hook-on Support w/Adhesive Tape (24 ea)
Use with 8″ x 10″ frames
SW-12FF100-1824 (*R/SQ) – Front-Load Aluminum Frame for Photo Inserts (1 ea) / *Select profile style and finish type above.
Insert Size: 18″W x 24″H
SW-12-0306/18×24 – 0.030pt thick PETG Liner / Clear Protective Film (1 ea)
Film Size: 18″ x 24″
18HAP-CUSTOM/DC2602 – Acrylic Back Hanger / Hook-on Support w/Adhesive Tape (1 ea)
Use with 18″ x 24″ frames
14LTR-AVENIR-BLACK-5IN-12-BK – Acrylic Raised Letters in 5” high Avenir Black Font Style (1 set)
Laser Cut Acrylic Letters in 1/4” thick satin/matte black finish face and double-sided tape on the back for wall mounting.
Line Copy: “WALL OF HONOR”
WM11 – Rod Wall Fixing (28 ea)
P01 – Decorative Base Plate (28 ea)
R1500 – 1.5m (4′ 11-1/16″) 6mm Dia. Rod (6 ea)
*** JOIN AND CUT RODS TO 172″ LENGTH / FLAT ENDS (2 sets)
REC – Decorative End Cap (4 ea)
P50-TWL – Twist-n-Lock Drywall Anchor Set (28 ea)
AVAILABILITY: 10-15 Bus. Days (Fabrication and Delivery Time)
FINISHES: Mounting Hardware is supplied in a satin chrome finish. Aluminum frames are available in silver or black anodized finishes.
CUSTOMIZATIONS: For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form
Additional Information
| Insert Size | |
|---|---|
| Load Option | |
| Graphic Thickness | |
| Frame Profile Style | |
| Mounting Options | |
| Finish | |
| Availability |
Add-on Services
- Graphic Inserts Printing
Order high-resolution photographic quality prints to come with your newly purchased display. Inserts are printed onto 9mil satin polyester film and trimmed to sizes specified in each display kit description. To order your prints go to “Printing Services” page and select your print type, size and quantity and add to cart. Use the same page to upload and submit your print files. - Raised Letters / Logo Signage
Order dimensional / raised letters or logos to come with your newly purchased display. Letters are manufactured out of 1/4” thick acrylic and supplied in white or black acrylic with matte (satin) finish face and double-sided tape on the back for wall mounting. To order raised letters go to “Laser-Cut Acrylic Letters” store page and select a font style, letter size, finish, and submit your graphic file. For custom font styles and logos send your vector files to receive an estimate using our “Quote Request Form“. - Graphic Pre-placement
Prints will be placed inside the acrylic sandwich frames before Packing & Shipping – mounted in between the two pieces of acrylic and fixed in place with low-tack (3MTM 9415PC Removable Repositionable) double sided adhesive tape. If you require this option please request an estimate using our “Quote Request Form“.
