DC3306 Wine-Cellar Display Rack with Cable Suspended Shelves (12FT WALL)
$2,661.36 – $5,224.68
Wine-Cellar Display with 3mm Cable System — This elegant wine rack display features 16″ x 14″ acrylic shelves, each designed to showcase three bottles. The shelves are suspended using our refined 3mm stainless steel cable system, creating a striking visual effect. Engineered for ceiling-to-countertop installations, this display combines sleek acrylic and durable stainless steel components, offering a modern, space-efficient solution for showcasing your wine collection. The nest shelves are crafted from premium clear acrylic, available in 3/4″ or 1″ thickness, and feature a sophisticated satin/matte edge finish, adding a touch of elegance to your wine display.
Display Capacity: 96 Bottles
Overall Display Size: 134″W x 78″H
Wall Size Requirements: 12 ft (144 in) Wide
PROJECT DETAILS & DOWNLOADS:
Follow the link below for additional details on DC3306 Wine-Cellar Display
- Concept Layout
- Wall Template
- Install Guide
*Acrylic Nest Shelves are Made-to-Order (MTO) – All sales are final, no returns, no exchanges. Please read our WebStore “Terms & Conditions Policy“.
Product Description

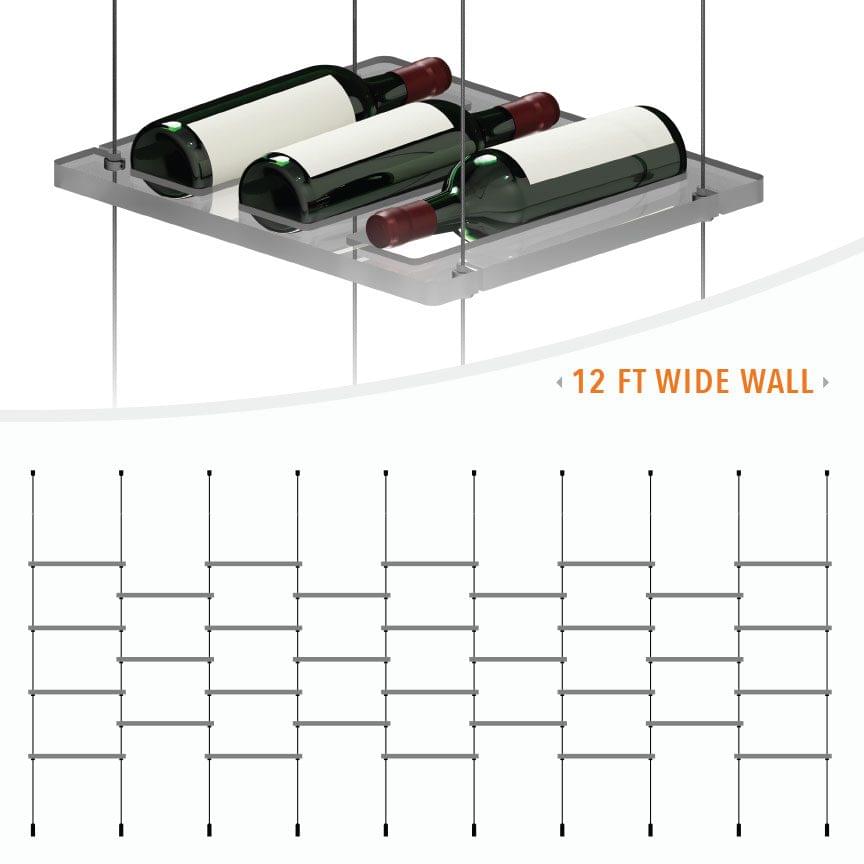

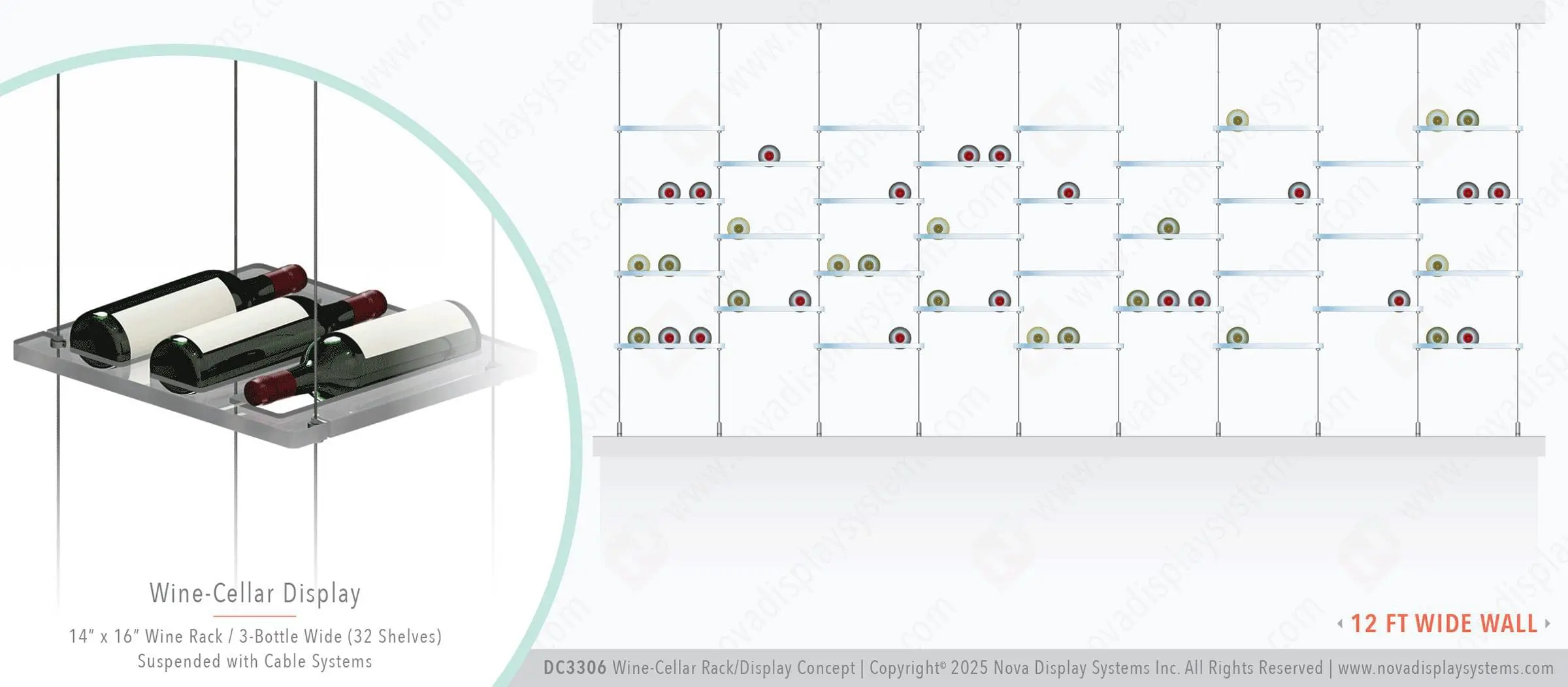

DC3306 Wine-Cellar Display Concept / 12ft Wall

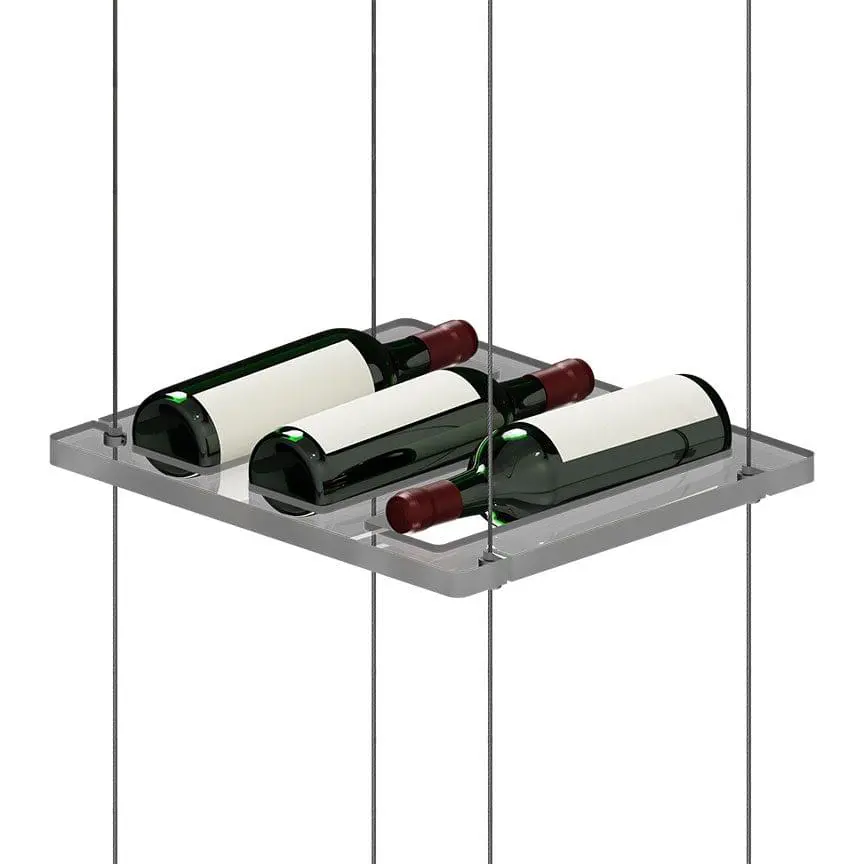

34WRT-SQ-1614/H-3mm (*10WRT-SQ-1614/H-3mm) – 3/4″ or 1″ Thick Clear Acrylic Nest Shelves for Three Bottles (32 ea) / *Choose shelf thickness type above.
Shelf Size: 16″W x 14″D
C301-4M/SS – 3mm Cable Suspension Fixing Kit for Ceiling-to-Countertop or Ceiling-to-Floor Installations (20 ea)
CS301/SS – Support for Drilled or Slotted Shelves (128 ea)
AVAILABILITY: 10-15 Bus. Days (Fabrication and Delivery Time)
FINISHES: Mounting hardware features a stainless steel finish. The high-quality acrylic nest shelves are made with 3/4″ or 1″ thick clear acrylic with a refined satin/matte edge.
CUSTOMIZATIONS: For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form
Additional Information
| Thickness | |
|---|---|
| Mounting Options | Ceiling-to-Floor Suspensions, Ceiling-to-Countetop Suspensions |
| Load Option | |
| Finish | |
| Availability |
Cleaning & Handling of Acrylic Display Products
When caring for acrylic accessories, it’s crucial to avoid using incorrect cleaners, as they can cause harm. Never use cleaners containing ammonia, glass cleaners, or furniture polish such as Fantastik, Tilex, Windex, or Clorox, as they can damage your acrylic. Instead, use mild soap and water or products specifically recommended for cleaning acrylic, such as Novus or other Rated Anti-Static Cleaner and Polish for Plastics. When cleaning, use micro-fiber disposable low lint cloths designed for acrylic and other plastics, and avoid using a dry cloth or your hand. Using the wrong cleaner can lead to immediate or delayed damage, weakening structural joints and causing cracking. During installation, handle acrylic with care to prevent cracking.
Product Limitations
Acrylic is not as rigid as glass or metals. Large, flat acrylic sheets, if insufficiently supported, may deform permanently due to continuous loads or even their own weight. Acrylic sheet can be used at temperatures from -30°F (-34°C) up to +190°F (+88°C), depending on the application. It is recommended that temperatures not exceed 160°F (71°C) for continuous service, or 190°F (88°C) for short, intermittent use. Components should not be exposed to high heat sources such as high wattage incandescent lamps, unless the finished product is ventilated to permit the dissipation of heat. Acrylic sheet is a combustible thermoplastic. Precautions should be taken to protect this material from flames and high heat sources.
Acrylic/Plastic Cleaning Kit
Cleaner & Polisher — cleans and brightens acrylic and all hard plastic surfaces. Leaves a shiny polished surface that resists dust and fingerprints. Contains no abrasives or harsh chemicals. Cleans, glazes, and eliminates static charge all in one operation. Recommended for: Acrylic, Plexiglass, Lexan, Vinyl, Glass, and all hard plastics. Use disposable or reusable cleaning cloths.
