DC3302 Wine-Cellar Display Rack with Rod Suspended Shelves (10FT WALL)
Original price was: $6,382.50.$5,744.25Current price is: $5,744.25.
Wine-Cellar Display with 10mm Rod System — features sleek acrylic shelves with a rod-grid assembly for three-bottle depth storage, each elegantly suspended by our robust 10mm stainless steel rod system, this display is designed for sophisticated ceiling-to-countertop installations. Perfect for both residential cellars and upscale commercial venues, this innovative system transforms your wine storage into a captivating visual centerpiece, enhancing the overall ambiance of any space while maximizing storage efficiency, allowing you to showcase your prized vintages with unparalleled elegance.
Display Capacity: 75 Bottles
Overall Display Size: 110″W x 78″H
Wall Size Requirements: 10 ft (120 in) Wide
PROJECT DETAILS & DOWNLOADS:
Follow the link below for additional details on DC3302 Wine-Cellar Display
- Concept Layout
- Wall Template
- Install Guide
*Acrylic Cradle Shelves with Rod-Grid Assembly are Made-to-Order (MTO) – All sales are final, no returns, no exchanges. Please read our WebStore “Terms & Conditions Policy“.
Product Description

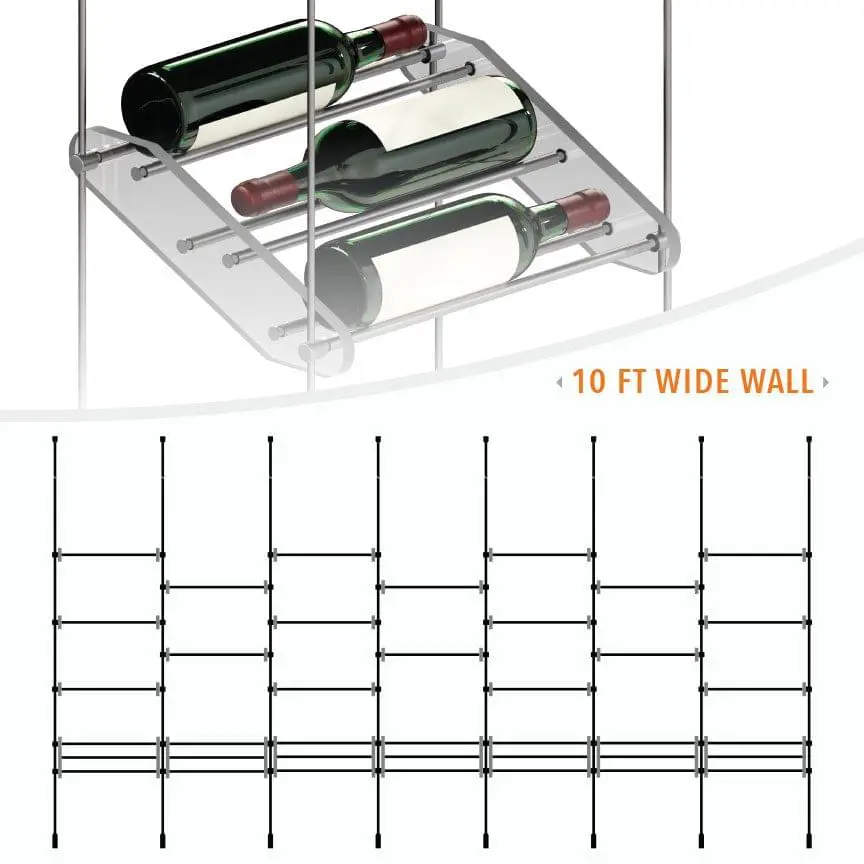

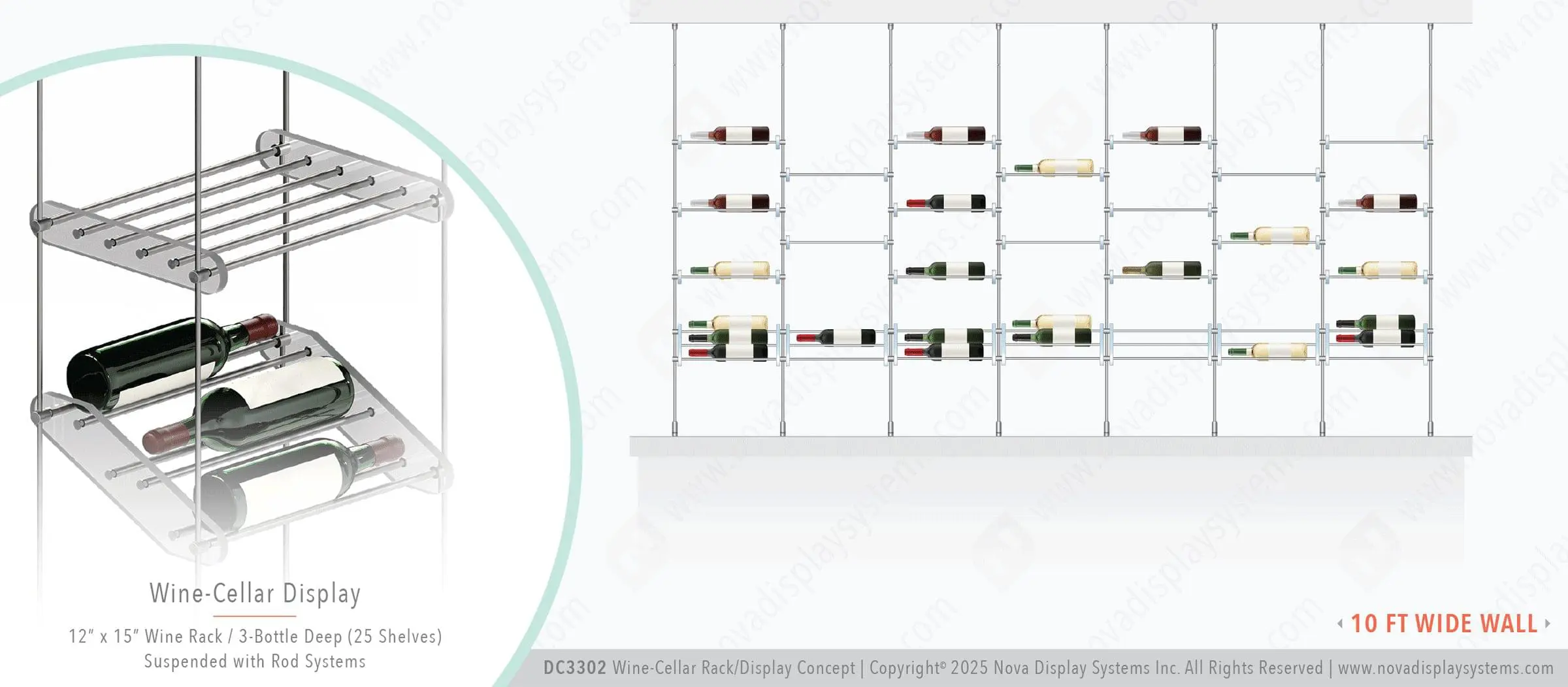

DC3302 Wine-Cellar Display Concept / 10ft Wall

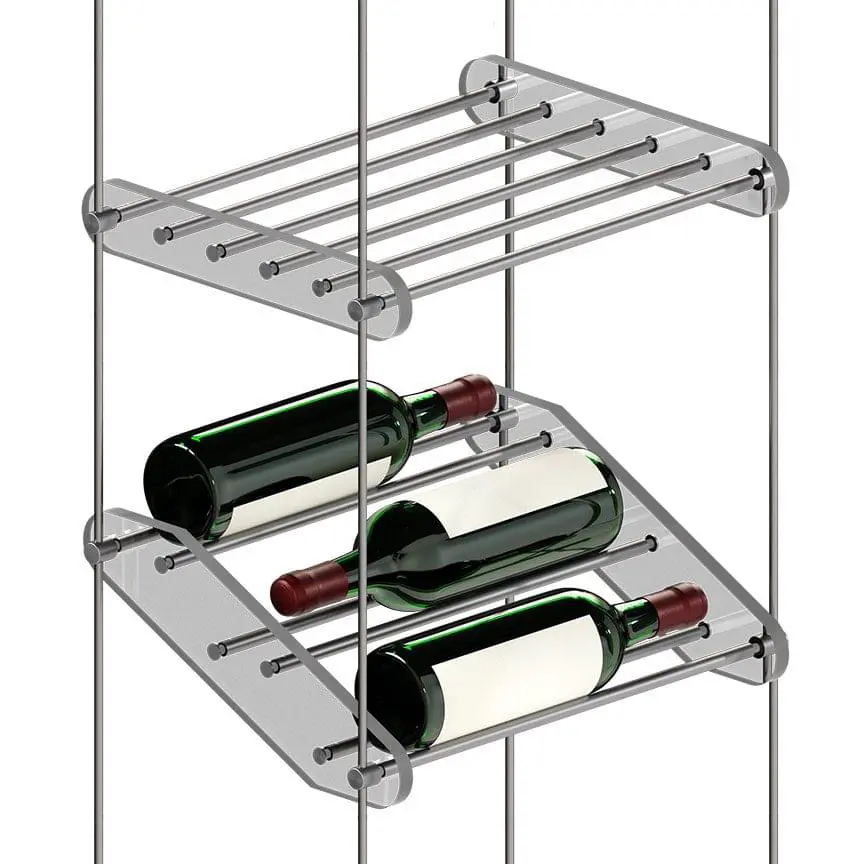

12WRR-3-1014 – Three-Bottle Deep Cradle Shelf with Rod-Grid Assembly and 1/2″ Thick Clear Acrylic Support Sides (18 ea)
Shelf Size: 15″W x 12″D
12WRR-3RC-1014 – Three-Bottle Deep Sloping Cradle Shelf with Rod-Grid Assembly and 1/2″ Thick Clear Acrylic Support Sides (7 ea)
Shelf Size: 15″W x 12″D
RCF-10/SS – Ceiling-to-Floor Fixing Kit for 10mm Rod Suspension (16 ea)
R1500-10 – 10mm Stainless Steel Rod 1.5M (4′ 11-1/16”) Long / M6 Right-Hand Threaded (16 ea)
R500-10 – 10mm Stainless Steel Rod 0.5M (1′ 7-11/16”) Long / M6 Right-Hand Threaded (16 ea)
RR103/SS – Support Single w/Boss for Shelves (76 ea)
RR104/SS – Support Double w/Boss for Shelves (12 ea)
AVAILABILITY: 10-15 Bus. Days (Fabrication and Delivery Time)
FINISHES: Mounting hardware features a stainless steel finish. The high-quality acrylic cradle shelves incorporate a rod-grid assembly and 1/2″ thick clear acrylic support sides with a refined satin/matte edge.
CUSTOMIZATIONS: For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form
Additional Information
| Mounting Options | Ceiling-to-Floor Suspensions, Ceiling-to-Countetop Suspensions |
|---|---|
| Load Option | |
| Finish | |
| Availability |
Cleaning & Handling of Acrylic Display Products
When caring for acrylic accessories, it’s crucial to avoid using incorrect cleaners, as they can cause harm. Never use cleaners containing ammonia, glass cleaners, or furniture polish such as Fantastik, Tilex, Windex, or Clorox, as they can damage your acrylic. Instead, use mild soap and water or products specifically recommended for cleaning acrylic, such as Novus or other Rated Anti-Static Cleaner and Polish for Plastics. When cleaning, use micro-fiber disposable low lint cloths designed for acrylic and other plastics, and avoid using a dry cloth or your hand. Using the wrong cleaner can lead to immediate or delayed damage, weakening structural joints and causing cracking. During installation, handle acrylic with care to prevent cracking.
Product Limitations
Acrylic is not as rigid as glass or metals. Large, flat acrylic sheets, if insufficiently supported, may deform permanently due to continuous loads or even their own weight. Acrylic sheet can be used at temperatures from -30°F (-34°C) up to +190°F (+88°C), depending on the application. It is recommended that temperatures not exceed 160°F (71°C) for continuous service, or 190°F (88°C) for short, intermittent use. Components should not be exposed to high heat sources such as high wattage incandescent lamps, unless the finished product is ventilated to permit the dissipation of heat. Acrylic sheet is a combustible thermoplastic. Precautions should be taken to protect this material from flames and high heat sources.
Acrylic/Plastic Cleaning Kit
Cleaner & Polisher — cleans and brightens acrylic and all hard plastic surfaces. Leaves a shiny polished surface that resists dust and fingerprints. Contains no abrasives or harsh chemicals. Cleans, glazes, and eliminates static charge all in one operation. Recommended for: Acrylic, Plexiglass, Lexan, Vinyl, Glass, and all hard plastics. Use disposable or reusable cleaning cloths.
