DC2130 Photo Wall Display with Acrylic Frames for 5×7 and 24×36 Inserts (18FT WALL)
Original price was: $2,007.27.$1,806.54Current price is: $1,806.54.
Photo Wall Display with Integrated Information Panels – incorporates hook-on acrylic holders/sleeves designed for 5″ x 7″ photos mounted on horizontal rods for a sleek floating appearance and larger 24″ x 36″ frameless acrylic frames, perfect for showcasing posters, infographics, or other informational content. Engineered for both aesthetics and functionality, this versatile system allows you to effortlessly create and update stylish interior displays in minutes. Display comes with wall mounts and standoff components made of brass with satin chrome finish, steel rods in natural brushed stainless finish, and non-glare (non-reflective) acrylic holders and frames.
Overall Display Size: 188″W x 36″H
Wall Size Requirements: 18 ft (216 in) Wide
PROJECT DETAILS & DOWNLOADS:
Follow the link below for additional details on DC2130 Photo Wall Display
- Concept Layout
- Wall Template
- Install Guide
*Acrylic Holders and Frames are Made-to-Order (MTO) – All sales are final, no returns, no exchanges. Please read our WebStore “Terms & Conditions Policy“.
Product Description

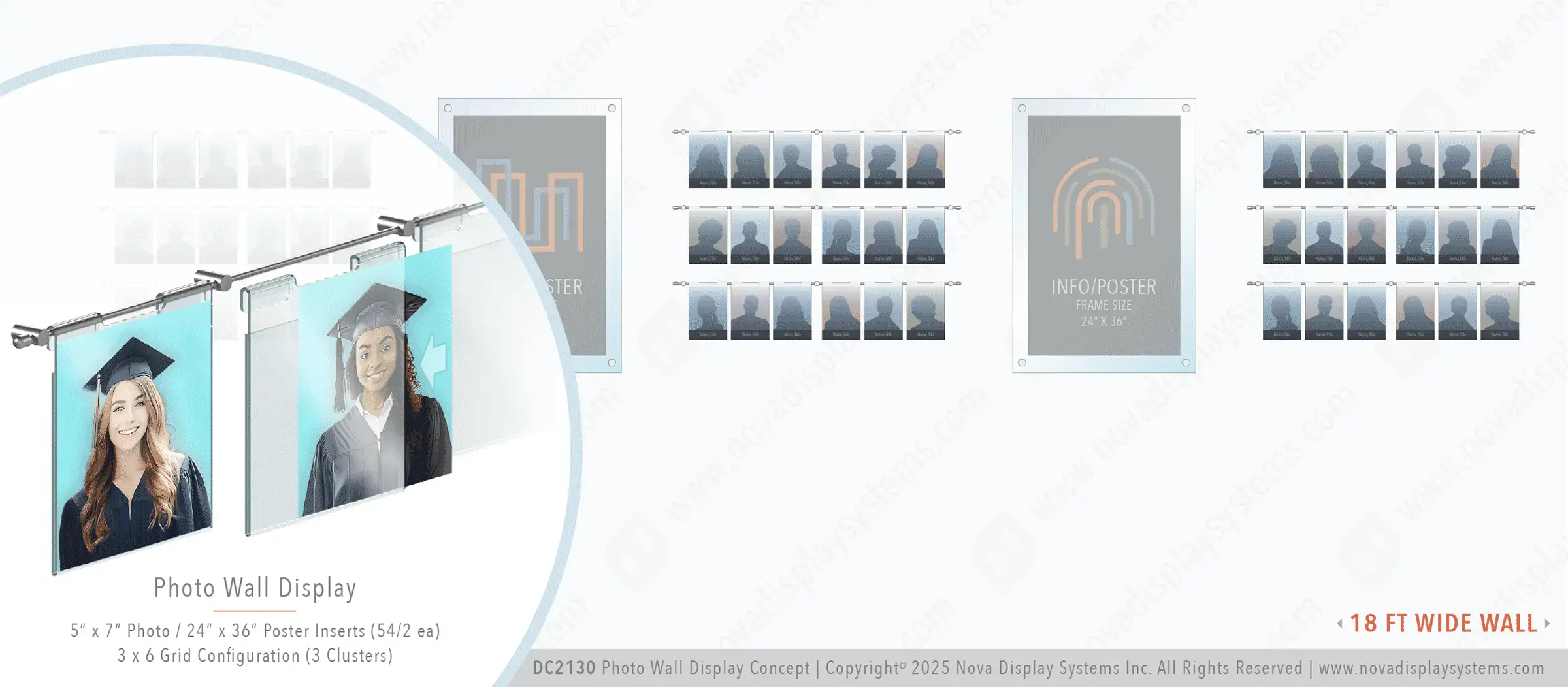

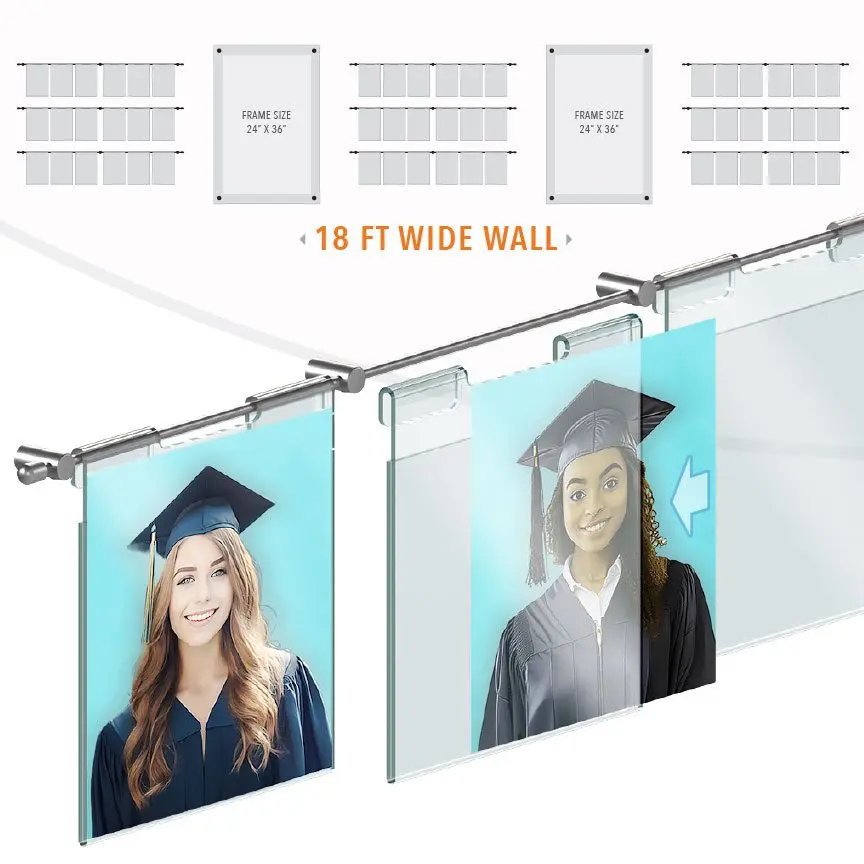

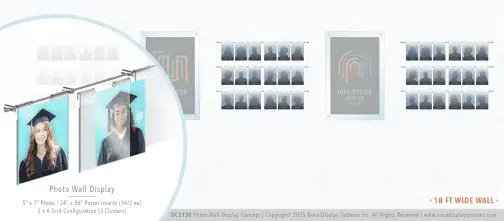

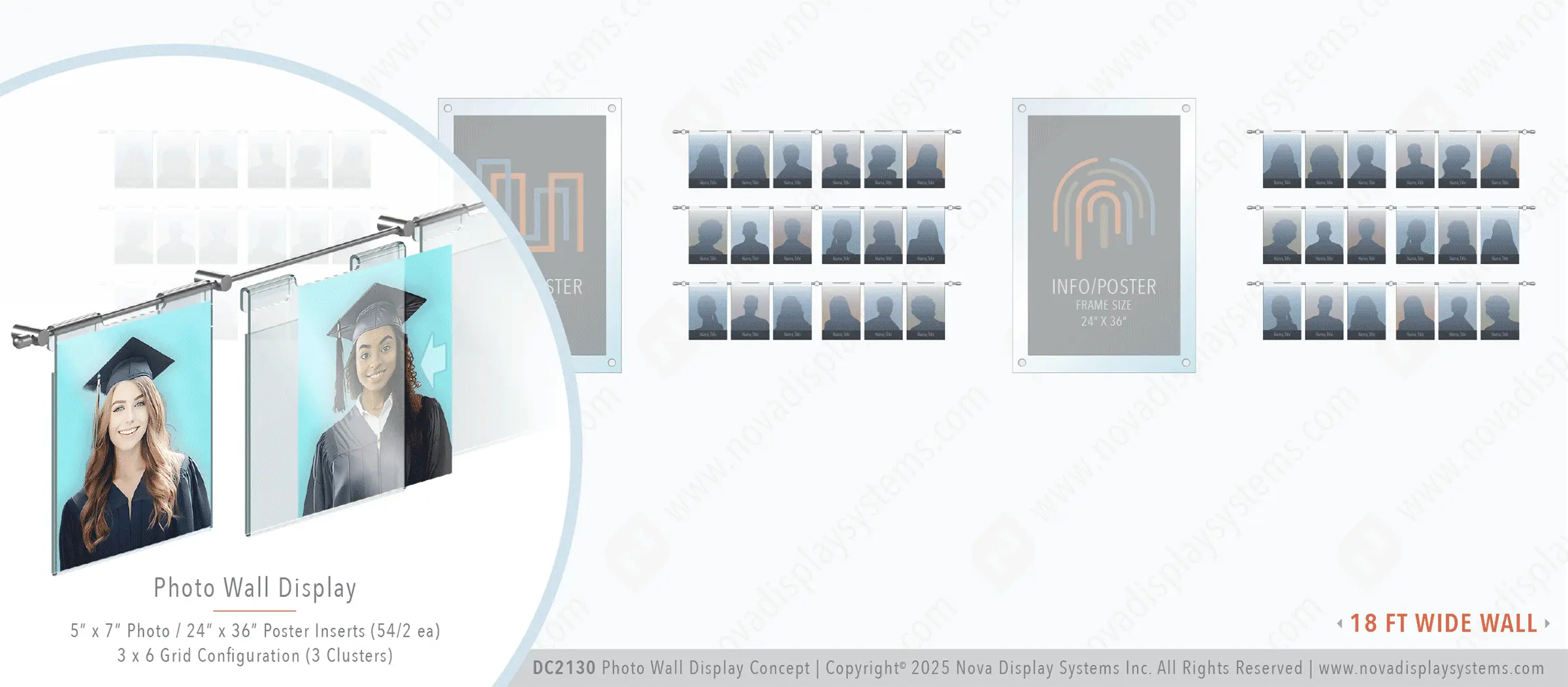

DC2130 Photo Wall Display Concept / 18ft Wall
PROJECT INCLUDES:

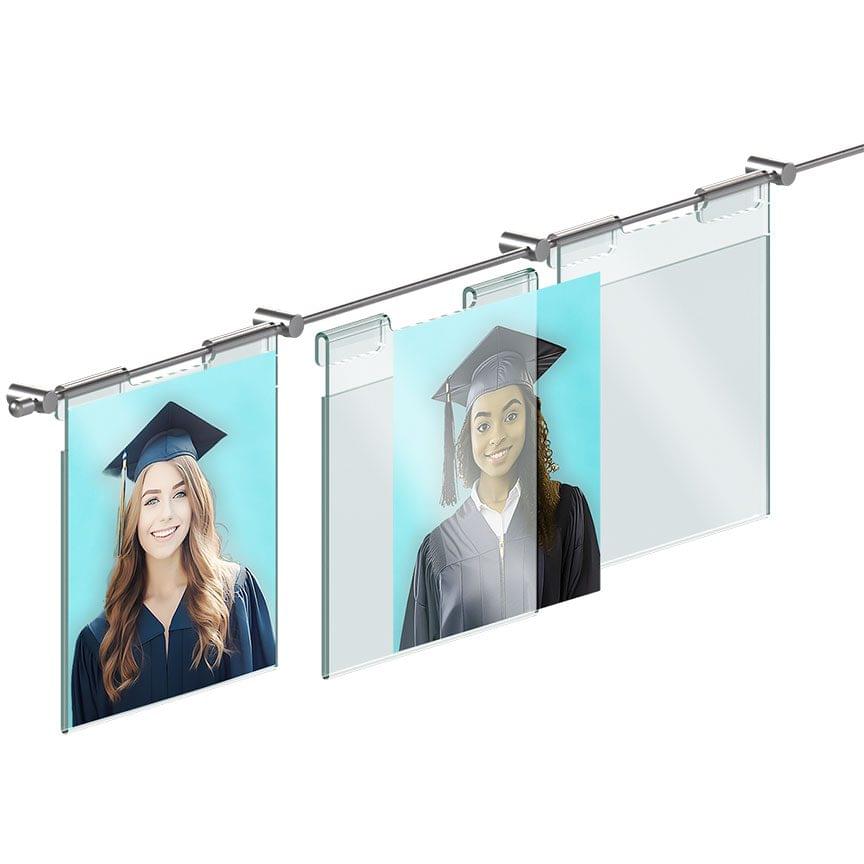

18HAP-0507P/NG – Non-Glare Acrylic Hook-on Holder (54 ea)
Insert Size: 5″W x 7″H
14ASP-2436/H – Clear Acrylic Back Panel (2 ea)
18ASP-2436NG/H – Non-Glare Acrylic Front Panel (2 ea)
Frame Size: 24″W x 36″H, Insert Size: 20″W x 32″H
WM11 – Rod Wall Fixing (27 ea)
R1000P – 1.0m (3′ 3-3/8″) 6mm Dia. Rod (9 ea)
*** CUT RODS TO 37″ LENGTH / FLAT ENDS
REC – Decorative End Cap (18 ea)
WM15 – 1″ Dia. Standoff Support (8 ea)
P50-TWL – Twist-n-Lock Drywall Anchor Set (35 ea)
AVAILABILITY: 5-7 Bus. Days (Fabrication and Delivery Time)
FINISHES: Mounting Hardware is supplied in a satin chrome finish. Acrylic holders and frames are made of high-quality 1/4″ thick clear and 1/8″ thick non-glare acrylic.
CUSTOMIZATIONS: For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form
Additional Information
| Insert Size | |
|---|---|
| Load Option | |
| Graphic Thickness | |
| Material Thickness | |
| Mounting Options | |
| Finish | Satin Chrome, Clear Acrylic, Non-Glare Acrylic / Anti-Reflective (P99) |
| Availability |
Cleaning & Handling of Acrylic Display Products
When caring for acrylic accessories, it’s crucial to avoid using incorrect cleaners, as they can cause harm. Never use cleaners containing ammonia, glass cleaners, or furniture polish such as Fantastik, Tilex, Windex, or Clorox, as they can damage your acrylic. Instead, use mild soap and water or products specifically recommended for cleaning acrylic, such as Novus or other Rated Anti-Static Cleaner and Polish for Plastics. When cleaning, use micro-fiber disposable low lint cloths designed for acrylic and other plastics, and avoid using a dry cloth or your hand. Using the wrong cleaner can lead to immediate or delayed damage, weakening structural joints and causing cracking. During installation, handle acrylic with care to prevent cracking.
Product Limitations
Acrylic is not as rigid as glass or metals. Large, flat acrylic sheets, if insufficiently supported, may deform permanently due to continuous loads or even their own weight. Acrylic sheet can be used at temperatures from -30°F (-34°C) up to +190°F (+88°C), depending on the application. It is recommended that temperatures not exceed 160°F (71°C) for continuous service, or 190°F (88°C) for short, intermittent use. Components should not be exposed to high heat sources such as high wattage incandescent lamps, unless the finished product is ventilated to permit the dissipation of heat. Acrylic sheet is a combustible thermoplastic. Precautions should be taken to protect this material from flames and high heat sources.
Acrylic/Plastic Cleaning Kit
Cleaner & Polisher — cleans and brightens acrylic and all hard plastic surfaces. Leaves a shiny polished surface that resists dust and fingerprints. Contains no abrasives or harsh chemicals. Cleans, glazes, and eliminates static charge all in one operation. Recommended for: Acrylic, Plexiglass, Lexan, Vinyl, Glass, and all hard plastics. Use disposable or reusable cleaning cloths.
Add-on Services
- Graphic Inserts Printing
Order high-resolution photographic quality prints to come with your newly purchased display. Inserts are printed onto 9mil satin polyester film and trimmed to sizes specified in each display kit description. To order your prints go to “Printing Services” page and select your print type, size and quantity and add to cart. Use the same page to upload and submit your print files. - Raised Letters / Logo Signage
Order dimensional / raised letters or logos to come with your newly purchased display. Letters are manufactured out of 1/4” thick acrylic and supplied in white or black acrylic with matte (satin) finish face and double-sided tape on the back for wall mounting. To order raised letters go to “Laser-Cut Acrylic Letters” store page and select a font style, letter size, finish, and submit your graphic file. For custom font styles and logos send your vector files to receive an estimate using our “Quote Request Form“. - Graphic Pre-placement
Prints will be placed inside the acrylic sandwich frames before Packing & Shipping – mounted in between the two pieces of acrylic and fixed in place with low-tack (3MTM 9415PC Removable Repositionable) double sided adhesive tape. If you require this option please request an estimate using our “Quote Request Form“.
