-10%

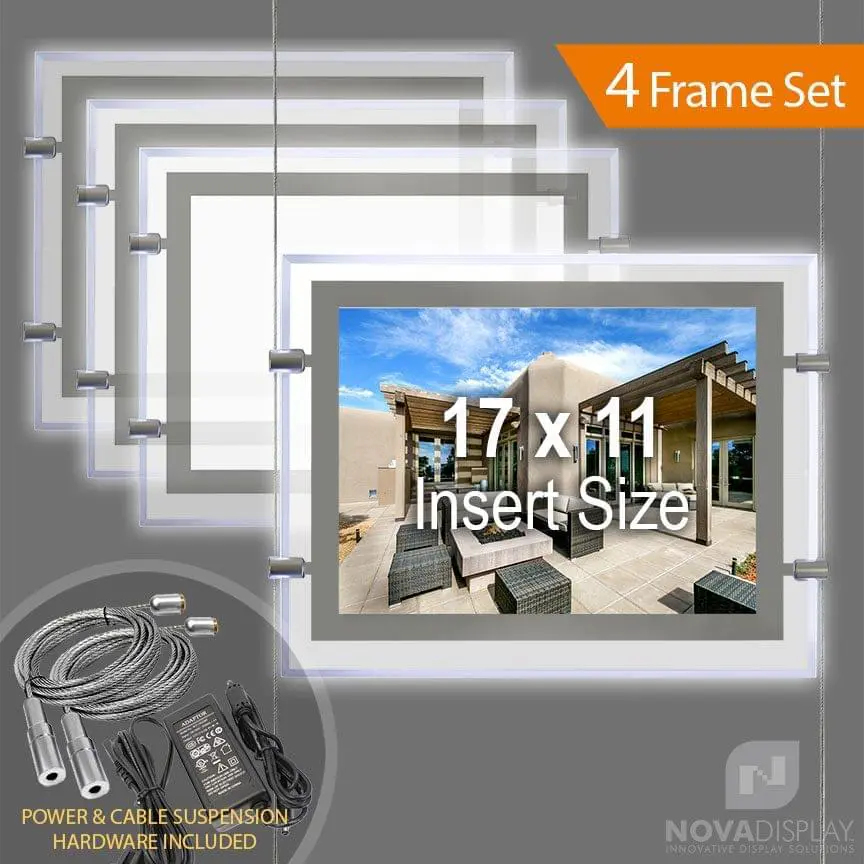

Glow-Edge LED Backlit Display / Cable Suspended. Insert Size: 17″W x 11″H / SET OF 4 FRAMES

Original price was: $690.50.Current price is: $621.45.

Slim magnetic open style LED backlit display frames with glowing edges for windows and interiors – only 3/8″ thick. Designed to take standard tabloid size prints and posters. Supplied with cable suspension hardware, power connectors, and power supply. / 4 PCS SET

Out of stock

Product Description

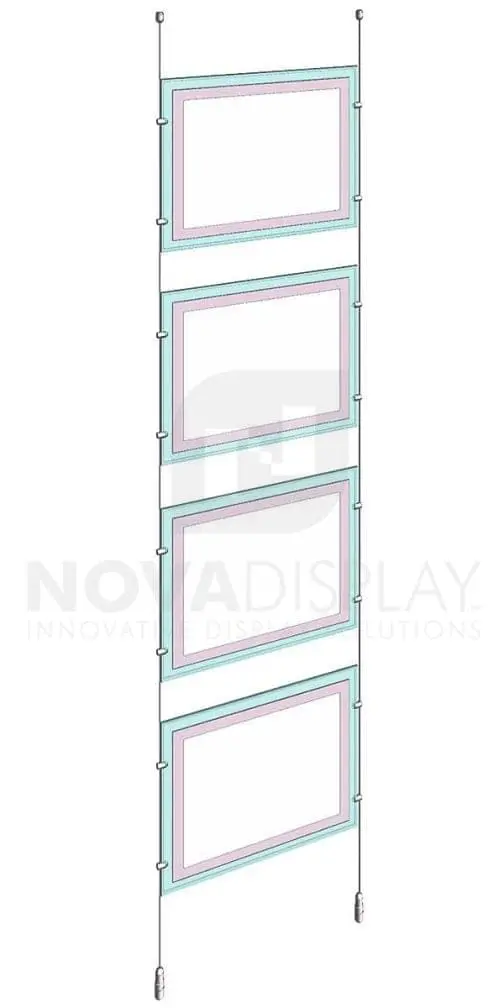

Glow-Edge LED Backlit Window Display with Cable Suspension Set (4 Frames per Set)

SET INCLUDES:
LP-1117L – LED Display Frame for 17″W x 11″H Inserts / Single-Sided (4 ea)
CA4-IS – Top/Bottom Fixings & Cable (2 ea)
Cable Length – up to 13 feet (*To be cut/adjusted in place)
CS08 – Power Connector (2 ea)
LPS12V/4.0A – AC Power Supply (1 ea)
LPS-EXT 16 feet long AC Cable Extension (1 ea)

FINISHES: Mounting Hardware is supplied in a satin chrome finish as standard. The LED Light Pockets are made of high-quality clear acrylic and are less than 12mm (1/2″) thick.

INSTALLATION NOTES: Assembly required.

Attributes

Panel Size

Load Option

Graphic Thickness

Mounting Options

Availability

Cleaning & Handling of Acrylic Display Products

When caring for acrylic accessories, it’s crucial to avoid using incorrect cleaners, as they can cause harm. Never use cleaners containing ammonia, glass cleaners, or furniture polish such as Fantastik, Tilex, Windex, or Clorox, as they can damage your acrylic. Instead, use mild soap and water or products specifically recommended for cleaning acrylic, such as Novus or other Rated Anti-Static Cleaner and Polish for Plastics. When cleaning, use micro-fiber disposable low lint cloths designed for acrylic and other plastics, and avoid using a dry cloth or your hand. Using the wrong cleaner can lead to immediate or delayed damage, weakening structural joints and causing cracking. During installation, handle acrylic with care to prevent cracking.

Product Limitations

Acrylic is not as rigid as glass or metals. Large, flat acrylic sheets, if insufficiently supported, may deform permanently due to continuous loads or even their own weight. Acrylic sheet can be used at temperatures from -30°F (-34°C) up to +190°F (+88°C), depending on the application. It is recommended that temperatures not exceed 160°F (71°C) for continuous service, or 190°F (88°C) for short, intermittent use. Components should not be exposed to high heat sources such as high wattage incandescent lamps, unless the finished product is ventilated to permit the dissipation of heat. Acrylic sheet is a combustible thermoplastic. Precautions should be taken to protect this material from flames and high heat sources.

Acrylic/Plastic Cleaning KitAcrylic/Plastic Cleaning Kit

Cleaner & Polisher — cleans and brightens acrylic and all hard plastic surfaces. Leaves a shiny polished surface that resists dust and fingerprints. Contains no abrasives or harsh chemicals. Cleans, glazes, and eliminates static charge all in one operation. Recommended for: Acrylic, Plexiglass, Lexan, Vinyl, Glass, and all hard plastics. Use disposable or reusable cleaning cloths.

Install Guide

How to Install the Glow-Edge LED Light Pockets with Cable Suspension Systems ❯ DOWNLOAD PDF HERE

More Installation Instructions are available at the Installation Guides / Download Pages. You may search for correct install guides by item code, component SKU, or product description. If you can’t find the correct guide contact us by email – General Inquires & Questions.
