Product Description

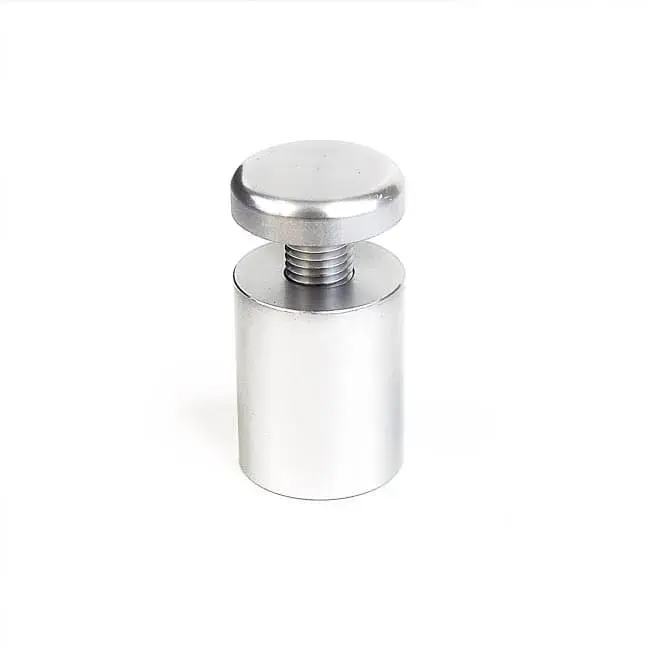

3/4″ Dia. x 1″ Sign Standoff (3-Part Standoff with M8 Stud-Cap) / Clear Anodized Aluminum Finish

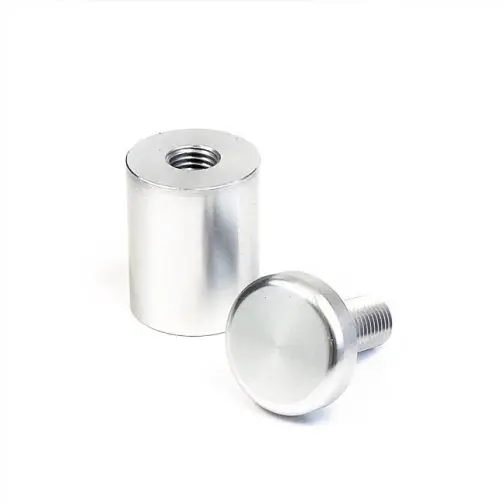

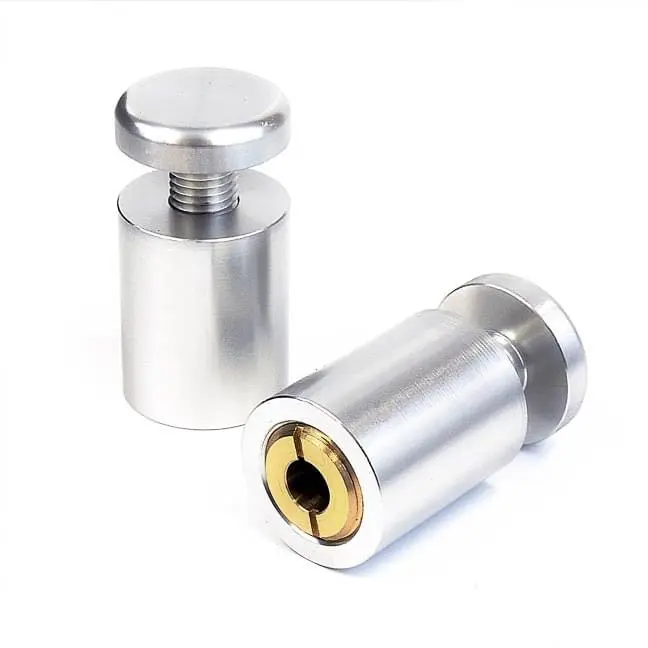

The WSO2025-M8 AL sign standoff includes an M8 threaded stud-cap, a standoff spacer/barrel, and a coupling anchor/wall plug. It is suitable for sign panels up to 12.5mm (1/2″) thick and requires 10mm (3/8″) diameter holes drilled into the sign panel. These are solid, durable aluminum standoffs machined using high-grade aluminum and supplied with a quality clear anodized finish. They are widely used in various applications across hotels, lobbies, airports, schools, museums, galleries, libraries, and more.
The WSO2025-M8 AL sign standoffs are designed for interior and exterior use and can effectively hold signs, logo panels, frameless graphic panels, acrylic poster frames, picture frames, awards, architectural plaques, decorative screens, literature displays, and other accessories made of acrylic, glass, aluminum composites, corian, stone, and more.
Our range of sign standoffs includes multiple diameters, sizes, and finishes, such as clear anodized, black anodized, satin chrome, polished chrome, brushed nickel, and stainless steel. Standoffs are available in 12mm (1/8″), 16mm (5/8″), 20mm (3/4″), 25mm (1″), 32mm (1-1/4″), and 38mm (1-1/2″) diameters. To explore our entire selection of sign standoffs and panel fittings, crafted exclusively from premium-grade aluminum, brass, or stainless steel, click on the link below.
Explore Other Sign Standoffs Options ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

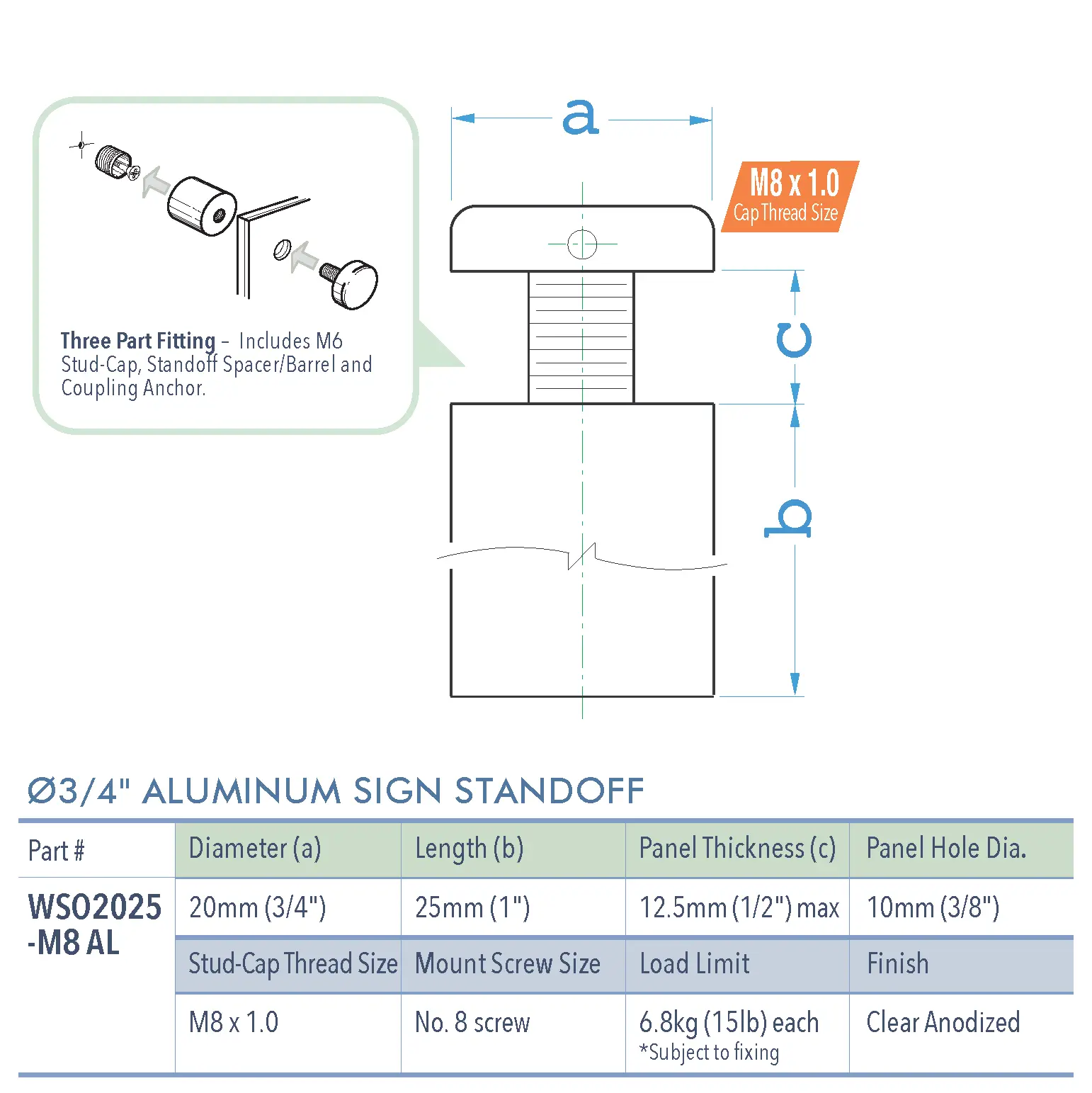

Attributes
| Standoff Diameter | |
|---|---|
| Standoff Length | |
| Panel Hole Diameter | |
| Stud Thread Size | |
| Material Thickness | |
| Load Limits | |
| Weight | |
| Screw Size | |
| Mounting Options | |
| Materials | |
| Finish | |
| Availability |
Composition and Materials:
For quality and durability, all sign/panel support fittings are machined from high-grade brass or aluminum alloy, or from solid stainless steel #SS201 or #SS304 as standard. Other stainless steel type #SS316 or #SS582 is also available for custom items. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors and Finishes:
Brass fittings – are available in stock in standard satin chrome finish. Custom finishes such as polished chrome, polished brass or brushed warm nickel plating are available upon request. Lead times will be longer and a minimum quantity may be required.
Aluminum fittings – are available in stock in standard clear or satin anodized finish.
Stainless steel fittings – are available in stock in standard satin brushed stainless finish. Polished stainless is also available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
Brass fittings – are rated for indoor use only. They perform well in all closed environments as long as not exposed to direct weathering such as rain, snow, moisture, etc.
Aluminum fittings – are suggested for both interior and exterior use. Other custom finishes such as black or color anodized are available upon request. Lead times will be longer and a minimum quantity may be required.
Stainless steel fittings – stock items are rated for indoor use only. For marine or other high humidity environments, please request stainless steel type 316/582 fittings that have a higher corrosion resistance. Lead times will be longer and a minimum quantity may be required.
Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Sign/panel support fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
You may also consider these products...
-
3/4″ DIA. x 1″ SIGN STANDOFF w/WALL PLUG & TWIST-N-LOCK ANCHOR KIT / QTY 100
Original price was: $477.00.$405.45Current price is: $405.45. Add to cart -

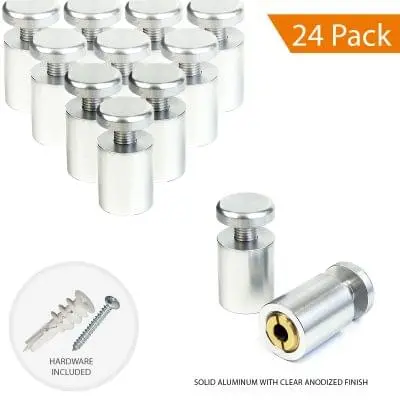

3/4″ DIA. x 1″ SIGN STANDOFF w/WALL PLUG & TWIST-N-LOCK ANCHOR KIT / QTY 24
Original price was: $114.48.$108.76Current price is: $108.76. Add to cart -
3/4″ DIA. x 3/4″ SIGN STANDOFF – Clear Anodized
Original price was: $3.25.$2.44Current price is: $2.44. Add to cart -

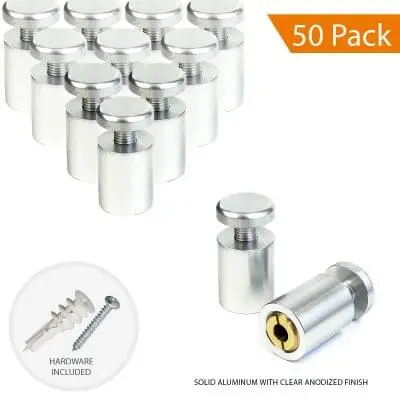

3/4″ DIA. x 1″ SIGN STANDOFF w/WALL PLUG & TWIST-N-LOCK ANCHOR KIT / QTY 50
