3/4″ PROJECTING STANDOFF SUPPORT – Screw Cap Set (For 1/4″ thick panels/shelves)
$7.40

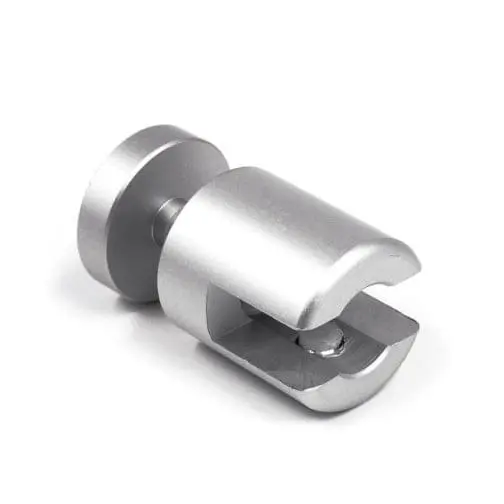

Made of Aluminum with Satin Anodized Finish. The clamp support is threaded at the base to accept the M6 Stud-Cap included in the set.
Availability: In stock
Product Description
3/4″ Dia. Projecting Standoff Support – Screw Cap Set / Satin Clear Anodized Finish

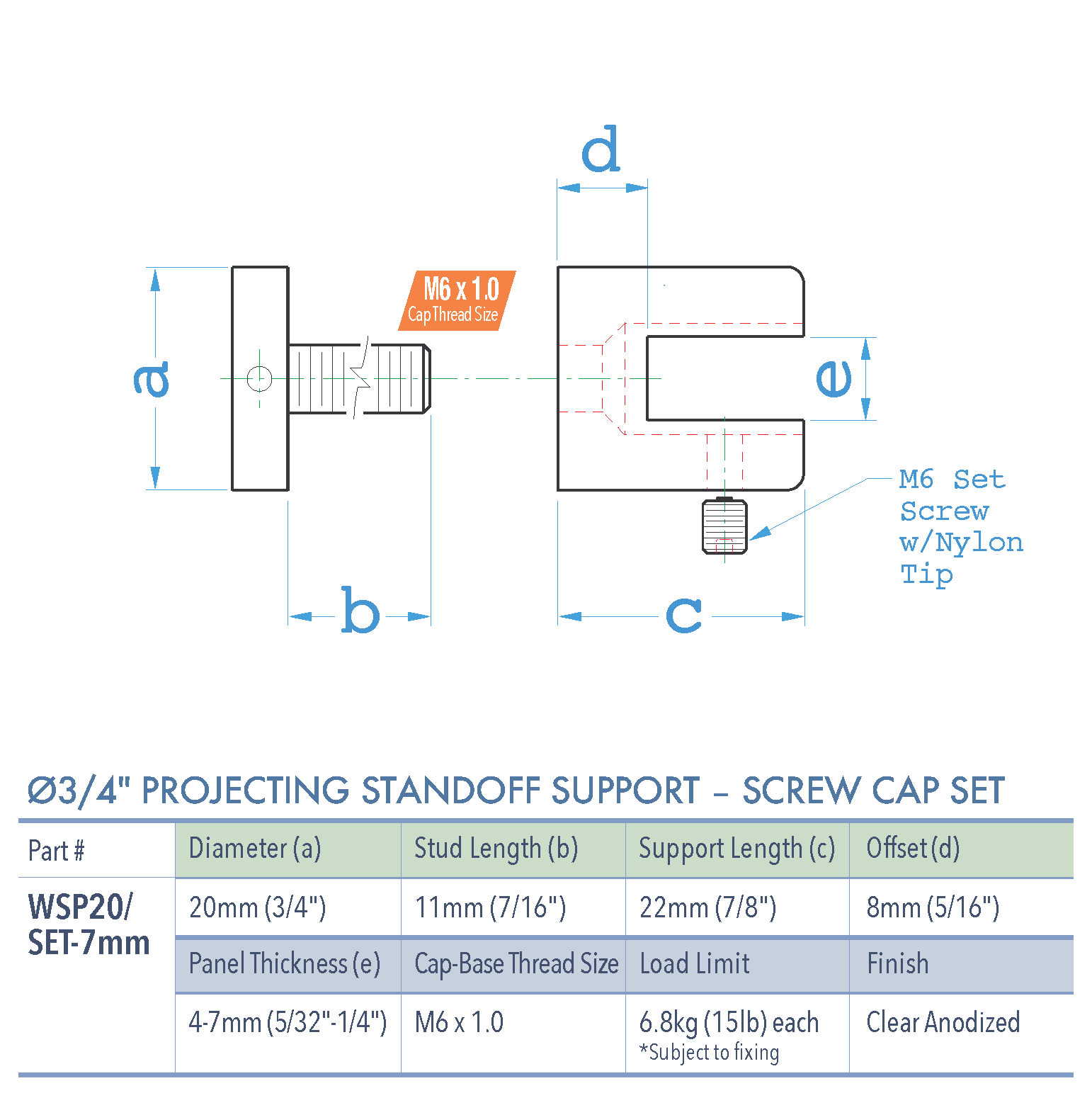

The WSP20/SET-7mm AL projecting standoff support/gripper and screw cap set features a 20mm (3/4″) diameter round profile fitting, designed for mounting panels and shelves up to 4-7mm (5/32″-1/4″) thick onto drilled vertical panels and dividers. Great for supporting shelves inside glass or acrylic showcases, and for constructing dividers, protective screens, sneeze guards that require a top shelf. Spacing from the base is 8mm (5/16″). Nylon-tipped grub screws securely fasten the panels and protect the surfaces from damage.
These are solid, durable aluminum standoff supports machined using high-grade aluminum and supplied with a quality satin clear anodized finish. The fittings are modular and can be used with other interchangeable components such as threaded caps to create projecting fork panel supports with screw caps.
Our range of projecting standoffs includes multiple diameters, sizes, and finishes, such as clear anodized, black anodized, satin chrome, and stainless steel. To explore our entire selection of sign standoffs and panel fittings, crafted exclusively from premium-grade aluminum, brass, or stainless steel, click on the link below.
Explore Other Projecting Standoffs Options ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Standoff Diameter | |
|---|---|
| Standoff Length | |
| Panel Hole Diameter | |
| Stud Thread Size | |
| Material Thickness | |
| Load Limits | |
| Accessory Compatibility | |
| Accessory Dimensions | |
| Weight | |
| Mounting Options | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
Composition and Materials:
For quality and durability, all sign/panel support fittings are machined from high-grade brass or aluminum alloy, or from solid stainless steel #SS201 or #SS304 as standard. Other stainless steel type #SS316 or #SS582 is also available for custom items. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors and Finishes:
Brass fittings – are available in stock in standard satin chrome finish. Custom finishes such as polished chrome, polished brass or brushed warm nickel plating are available upon request. Lead times will be longer and a minimum quantity may be required.
Aluminum fittings – are available in stock in standard clear or satin anodized finish.
Stainless steel fittings – are available in stock in standard satin brushed stainless finish. Polished stainless is also available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
Brass fittings – are rated for indoor use only. They perform well in all closed environments as long as not exposed to direct weathering such as rain, snow, moisture, etc.
Aluminum fittings – are suggested for both interior and exterior use. Other custom finishes such as black or color anodized are available upon request. Lead times will be longer and a minimum quantity may be required.
Stainless steel fittings – stock items are rated for indoor use only. For marine or other high humidity environments, please request stainless steel type 316/582 fittings that have a higher corrosion resistance. Lead times will be longer and a minimum quantity may be required.
Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Sign/panel support fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
