3/4″ x 1″ DUAL-GRIP STANDOFF – Clear Satin Anodized
$7.10
Made of Aluminum with Satin Clear Anodized Finish. Includes Standoff Spacer/Barrel, Coupling Anchor, and M6 Stud-Caps.
Out of stock
Product Description

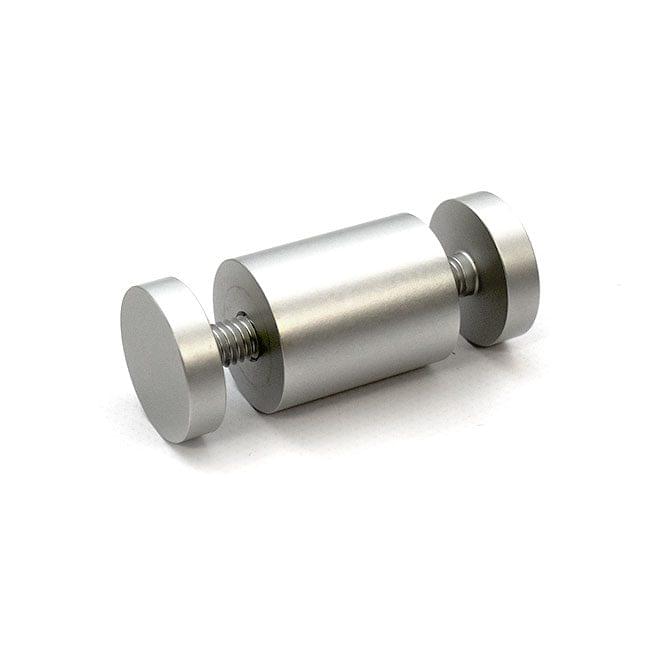

3/4″ Dia. x 1″ Dual-Grip Standoff Support with M6 Stud-Caps / Satin Clear Anodized Aluminum Finish

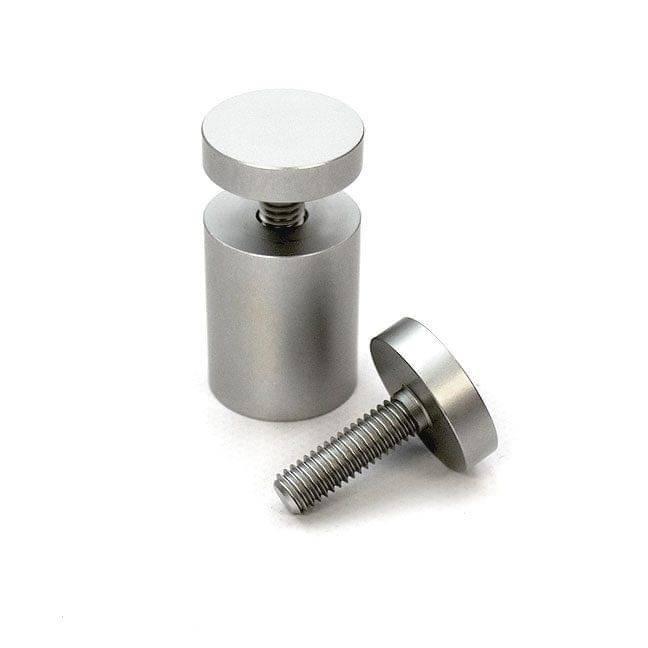

The KWSM2025-M6-SC20-SET dual-grip standoff set includes a standoff spacer/barrel, a coupling anchor, and two M6 threaded stud-caps. It is suitable for supporting 8-12mm (3/8″-1/2″) thick sign panels. It requires a 8mm (5/16″) diameter holes drilled into the panel.
These are solid, durable aluminum standoffs machined using high-grade aluminum and supplied with a quality satin clear anodized finish. The double-grip standoffs are used to hold panels and signage from two sides, eliminating the need for additional mounting supports.
Our range of sign standoffs includes multiple diameters, sizes, and finishes, such as clear anodized, black anodized, satin chrome, polished chrome, brushed nickel, and stainless steel. Standoffs are available in 12mm (1/8″), 16mm (5/8″), 20mm (3/4″), 25mm (1″), 32mm (1-1/4″), and 38mm (1-1/2″) diameters. To explore our entire selection of sign standoffs and panel fittings, crafted exclusively from premium-grade aluminum, brass, or stainless steel, click on the link below.
Explore Other Sign Standoffs Options ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Standoff Diameter | |
|---|---|
| Standoff Length | |
| Panel Hole Diameter | |
| Stud Thread Size | |
| Material Thickness | |
| Load Limits | |
| Accessory Compatibility | |
| Weight | |
| Screw Size | |
| Mounting Options | |
| Materials | |
| Finish | |
| Availability |
Composition and Materials:
For quality and durability, all sign/panel support fittings are machined from high-grade brass or aluminum alloy, or from solid stainless steel #SS201 or #SS304 as standard. Other stainless steel type #SS316 or #SS582 is also available for custom items. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors and Finishes:
Brass fittings – are available in stock in standard satin chrome finish. Custom finishes such as polished chrome, polished brass or brushed warm nickel plating are available upon request. Lead times will be longer and a minimum quantity may be required.
Aluminum fittings – are available in stock in standard clear or satin anodized finish.
Stainless steel fittings – are available in stock in standard satin brushed stainless finish. Polished stainless is also available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
Brass fittings – are rated for indoor use only. They perform well in all closed environments as long as not exposed to direct weathering such as rain, snow, moisture, etc.
Aluminum fittings – are suggested for both interior and exterior use. Other custom finishes such as black or color anodized are available upon request. Lead times will be longer and a minimum quantity may be required.
Stainless steel fittings – stock items are rated for indoor use only. For marine or other high humidity environments, please request stainless steel type 316/582 fittings that have a higher corrosion resistance. Lead times will be longer and a minimum quantity may be required.
Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Sign/panel support fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
