5/8″ x 7/8″ EDGE-GRIP PANEL SUPPORT – Satin Clear Anodized Aluminum (w/Front Set Screw)
$3.45
Made of Aluminum with Satin Anodized Finish. Includes Edge-Grip Support and Coupling Anchor.
Availability: In stock
Product Description

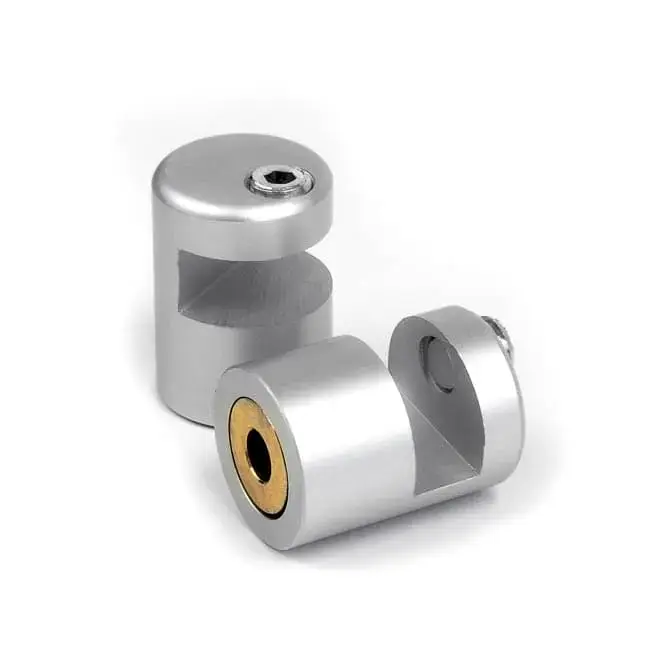

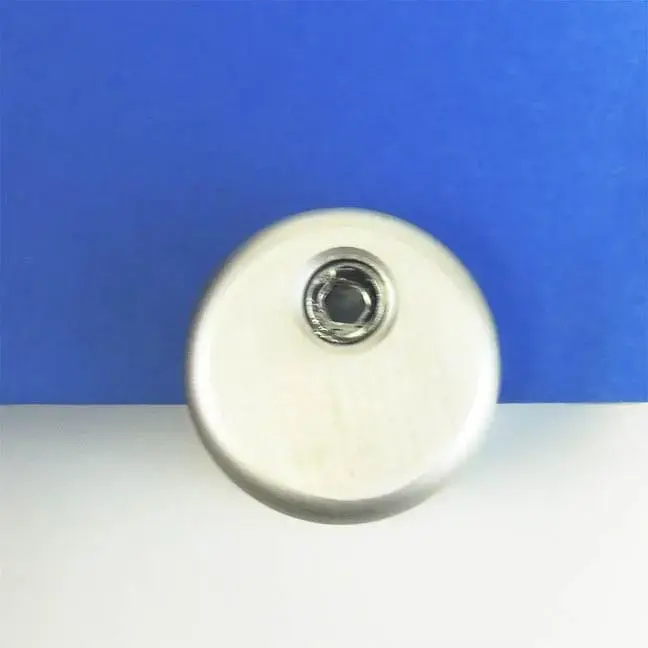

5/8″ Dia. x 7/8″ Edge-Grip Standoff Support / Panel Gripper with Front Set Screw / Satin Clear Anodized Aluminum Finish

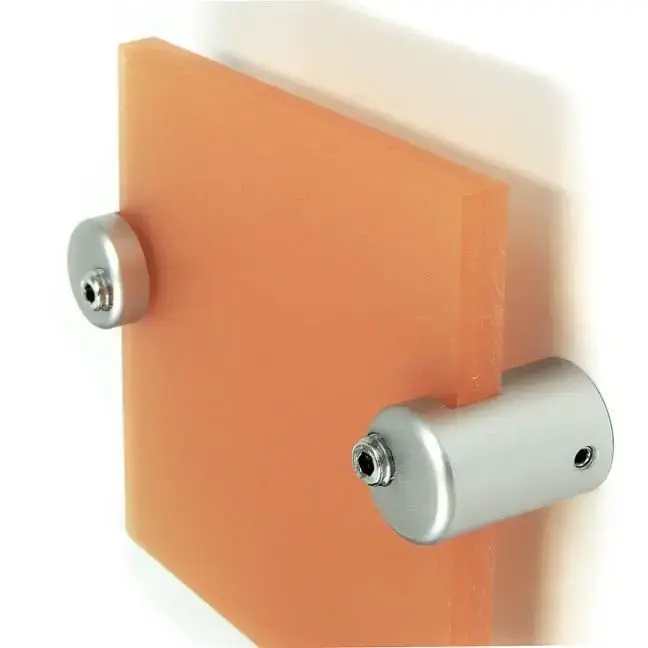

The WGS1622-6mm edge-grip standoff support/panel gripper features a 16mm (5/8″) diameter round profile fitting, designed for wall mounting signs and panels up to 4-6mm (5/32″-15/64″) thick. It is ideal for supporting small to medium size signage or decorative paneling. Spacing from the wall is 10mm (3/8″). Nylon-tipped grub screws securely fasten the panels and protect the surfaces from damage. These are solid, durable aluminum standoff supports machined using high-grade aluminum and supplied with a quality satin clear anodized finish.
Our range of edge-grip standoffs includes multiple diameters, sizes, and finishes, such as clear anodized and stainless steel. To explore our entire selection of sign standoffs and panel fittings, crafted exclusively from premium-grade aluminum, brass, or stainless steel, click on the link below.
Explore Other Projecting Standoffs Options ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Standoff Diameter | |
|---|---|
| Standoff Length | |
| Material Thickness | |
| Load Limits | |
| Accessory Compatibility | |
| Weight | |
| Screw Size | |
| Mounting Options | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
Composition and Materials:
For quality and durability, all sign/panel support fittings are machined from high-grade brass or aluminum alloy, or from solid stainless steel #SS201 or #SS304 as standard. Other stainless steel type #SS316 or #SS582 is also available for custom items. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors and Finishes:
Brass fittings – are available in stock in standard satin chrome finish. Custom finishes such as polished chrome, polished brass or brushed warm nickel plating are available upon request. Lead times will be longer and a minimum quantity may be required.
Aluminum fittings – are available in stock in standard clear or satin anodized finish.
Stainless steel fittings – are available in stock in standard satin brushed stainless finish. Polished stainless is also available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
Brass fittings – are rated for indoor use only. They perform well in all closed environments as long as not exposed to direct weathering such as rain, snow, moisture, etc.
Aluminum fittings – are suggested for both interior and exterior use. Other custom finishes such as black or color anodized are available upon request. Lead times will be longer and a minimum quantity may be required.
Stainless steel fittings – stock items are rated for indoor use only. For marine or other high humidity environments, please request stainless steel type 316/582 fittings that have a higher corrosion resistance. Lead times will be longer and a minimum quantity may be required.
Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Sign/panel support fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
