MULTI-POSITION SUPPORT for 6mm Rod (Use with 6mm Rods)
Original price was: $10.50.$9.45Current price is: $9.45.
Use with 6mm (1/4″) Rod Suspension System to create angled presentations or support custom design fixtures.
Availability: In stock
Product Description
6mm Rod-to-Rod Support / Multi-Position — Support for Sloped Rod

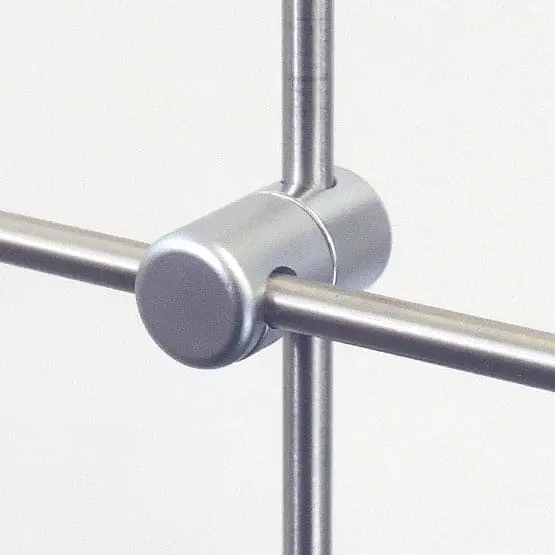

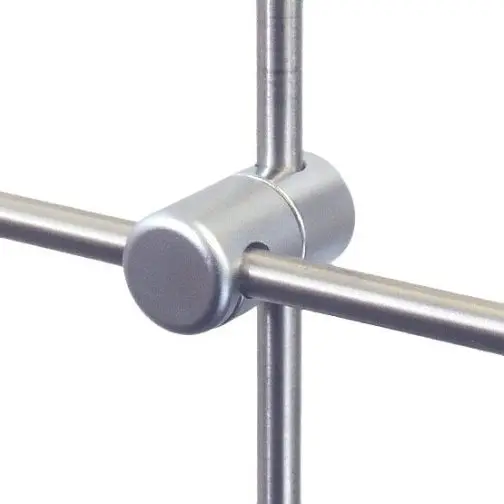

The RR01 multi-position rod-to-rod support features a 16mm (5/8″) diameter round profile fitting, designed for holding a 6mm (1/4″) rod horizontally or at an angle between two vertically suspended rods. The fittings are adjustable to any angle and can be locked into position. This high-quality rod support is made of solid brass and is compatible with our 6mm rod display system / rod hanging hardware kits.

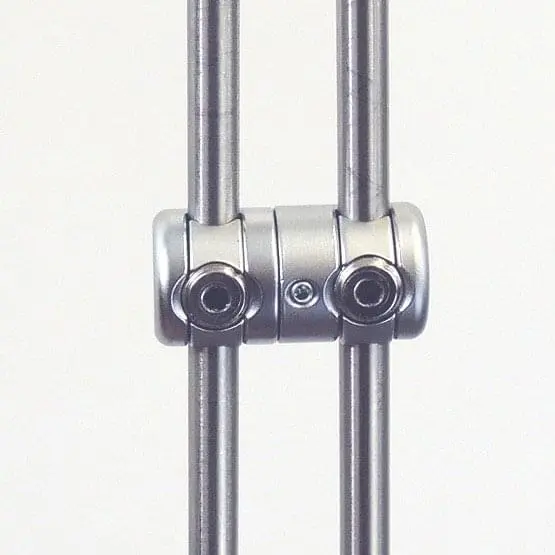

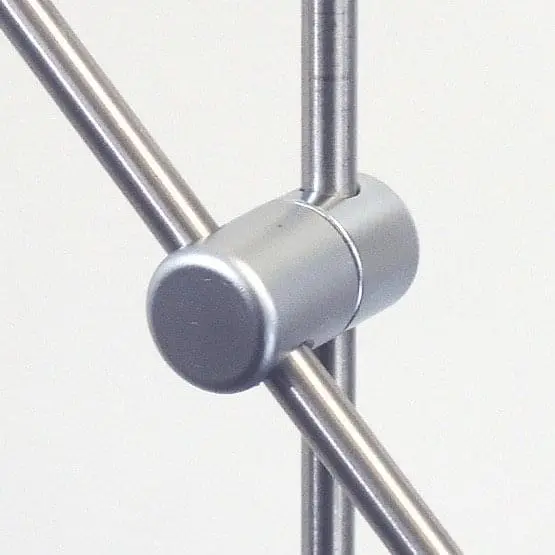

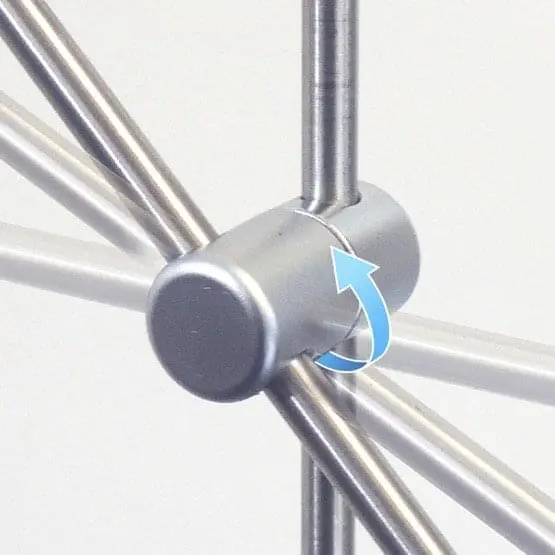

The pivoting angle rod supports with rods are ideal for creating angled presentations or supporting custom design fixtures and exhibit items. Attaching the rods is easily accomplished by inserting the rods into the support fitting and securing them with the set screw. The entire assembly is then attached to two vertically suspended rods and securely locked into the desired position with set screws and the supplied hex key. The supports swivel to any angle and are locked in place by a set screw.
Key Features:
• Multi-position rod supports are recommended for use with non-threaded or threaded rods in lengths of 0.5m (1′ 7-11/16”), 1.0m (3′ 3-3/8”), and 1.5m (4′ 11-1/16”).
• Use threaded rods joined together to create long displays (that will require multiple cable supports along the length).
• Use the 6mm horizontal rods with lightweight items only (to display heavier merchandise, use 10mm rods or hanging rails).
• Ideal for hanging angled presentations or supporting custom design fixtures.
• Made of solid brass alloy with a satin chrome finish.
• Compatible with 6mm (1/4″) diameter rod suspension system
Explore All Mounting Options ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

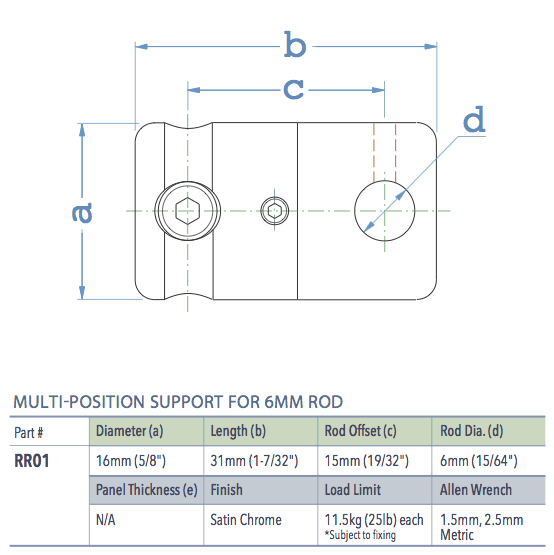

Attributes
| Load Limits | |
|---|---|
| Compatibility | Use with 6mm (1/4") Dia. Rods to Suspend Banners, Signs or Garments on Horizontal Rods |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all rod display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors/Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Rod system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 316/582 rods that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Rod fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
Installations Instructions
How to Install RR01 Multi-Position Single-Sided Support for Rod / Front Mount ❯ DOWNLOAD THE PDF HERE.
