WALL-TO-WALL FIXING KIT with 6mm Rod and End Caps – 3M (9’ 10”) Length
Original price was: $65.20.$55.42Current price is: $55.42.
Availability: In stock
Product Description

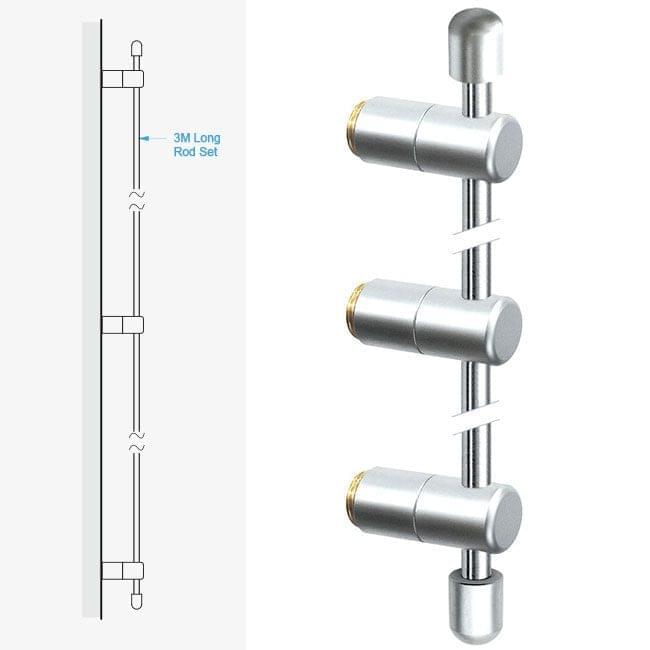

6mm (1/4″) Dia. Rod Suspension Kit with Wall-to-Wall Fixings, 1.5M Long Rods, and End Caps — 3M (9’ 10”) Length
The KWM11-3M rod suspension kit includes wall fixings, decorative end caps, and two threaded rods. It is designed for typical wall-to-wall suspended applications and display installations. The kit comes with two 1.5M (4′ 11-1/16″) long threaded rods, which can be joined to create a 3M (9′ 10″) total height and cut to size on-site during installation. Once screwed together, the rods appear continuous. For projects requiring longer lengths, additional rods can be purchased separately.
The KWM11-3M wall-to-wall rod hanging kit features a minimalist ergonomic design and is engineered for flexibility and durability. The wall fittings and end caps are crafted from robust solid brass alloy. The rods, made from durable stainless steel, provide exceptional weight support and stability. When properly secured to wall, the rods can support up to 120 kg (264 lbs) for vertical installations. However, for wall-mounted applications, we recommend adhering to a safety working load limit of 60 kg (132 lbs) per rod to ensure optimal security and longevity. The 6mm (1/4″) diameter rods can be used with various standard, multi-position, or specialty supports for holding graphic panels, literature displays, acrylic shelves, decorative panels and screens, display showcases, aluminum or wood frames, graphic holders, horizontal rods for fabrics, and various other presentations. This versatility allows for creative and functional solutions in retail environments, exhibitions, office spaces, and other commercial or residential settings where sleek, adaptable display systems are desired.
Additionally, the KWM11-3M rod suspension kit is compatible with a range of accessories, such as info/poster acrylic holders, acrylic frames, backlit displays, brochure and literature acrylic holders, magazine and book acrylic holders, acrylic showcases, flat glass shelves, and sloped acrylic shelves.
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Dimensions | |
|---|---|
| Rod Diameter | |
| Rod Length | |
| Load Limits | |
| Compatibility | Use with any 6mm rods for wall or fixture fixings for a variety of applications |
| Weight | |
| Mounting Options | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all rod display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors/Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Rod system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 316/582 rods that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Rod fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
Installations Instructions
How to Install WM11 Wall Fixing for Rods ❯ DOWNLOAD THE PDF HERE.
