TOP/CEILING FIXING KIT with 6mm Rod and Panel Support – 1.5M (4’ 11-1/16”) Length
Original price was: $33.30.$28.31Current price is: $28.31.
Availability: In stock
Product Description

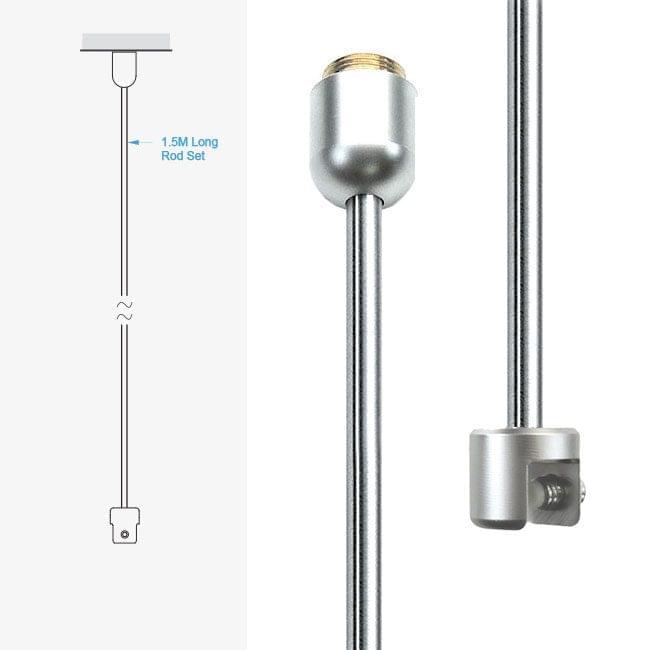

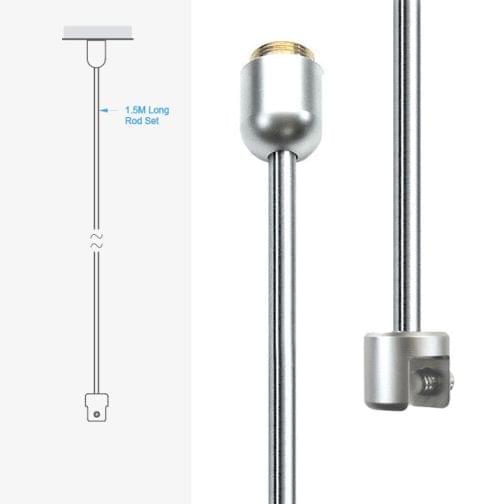

6mm (1/4″) Dia. Rod Suspension Kit with Top/Ceiling Fixing, 1.5M Long Rod, and Top Panel Clamp
The KRS-RG05 rod suspension kit includes a ceiling fixing, a threaded rod, a top panel clamp for 6mm (1/4″) thick panels. It is designed for typical ceiling-overhead suspended applications. The kit comes with one 1.5M (4′ 11-1/16″) long threaded rod, which can be cut to size on-site during installation. For projects requiring longer lengths, additional rods can be purchased separately.
The KRS-RG05 top/ceiling rod hanging kit with panel clamp features a minimalist ergonomic design and is engineered for flexibility and durability. The top fitting and panel clamp support are crafted from robust solid brass alloy. The rod, made from durable stainless steel, provides exceptional weight support and stability. However, for ceiling-mounted applications, we recommend adhering to a safety working load limit of 15 kg (33 lbs) per rod to ensure optimal security and longevity. The 6mm (1/4″) diameter rods can be used with various standard, multi-position, or specialty supports for holding graphic panels, hanging overhead signs, decorative panels, and protective screens.
Additionally, the KRS-RG05 rod suspension kit is compatible with a range of accessories, such as sign blanks and info/poster acrylic holders.
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Top Fixing | |
|---|---|
| Rod Diameter | |
| Rod Length | |
| Load Limits | |
| Compatibility | |
| Weight | |
| Mounting Options | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all rod display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors/Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Rod system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 316/582 rods that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Rod fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
Installations Instructions
How to Install RS Top/Ceiling Fixing for Rods – Screw Fit ❯ DOWNLOAD THE PDF HERE.
