-15%

TOP/CEILING FIXING KIT with 6mm Rod – 0.5M (1′ 7-11/16”) Length

Original price was: $15.90.Current price is: $13.52.

Top/Ceiling Fixing Kit with 6mm Rod — Includes RS Top Fixing (1 ea) and R500 6mm (1/4″) diameter threaded rod with dome end (1 ea). Use for ceiling suspensions or wall projecting installations.



Frequently Bought Together with:

PANEL SUPPORT SINGLE / NON REMOVABLE – For panels up to 7mm (1/4") thick. (Use with 6mm Rods)

For vertical panels up to 7mm (1/4") thick. Use with 6mm (1/4") Dia. Rod Hanging System to support acrylic pockets, signs and graphic panels from sides.

VERTICAL SUPPORT SINGLE – For panels up to 7mm (1/4") thick. (Use with 6mm Rods)

For panels up to 7mm (1/4") thick. Use with 6mm (1/4") Dia. Rod Suspensions. Ideal for supporting acrylic pockets, signs and graphic panels from sides

VERTICAL SUPPORT DOUBLE – For panels up to 7mm (1/4") thick. (Use with 6mm Rods)

For panels up to 7mm (1/4") thick. Use with 6mm (1/4") Dia. Rod Suspensions. Ideal for supporting acrylic pockets, signs and graphic panels from sides

SUPPORT for Drilled or Slotted Shelf (Use with 6mm Rods)

Use for supporting drilled or slotted acrylic and glass shelves. Located under the shelf. Hole Diameter – 10mm (3/8"). Use with 6mm (1/4") Dia Rod Suspensions.

Availability: In stock

Product Description

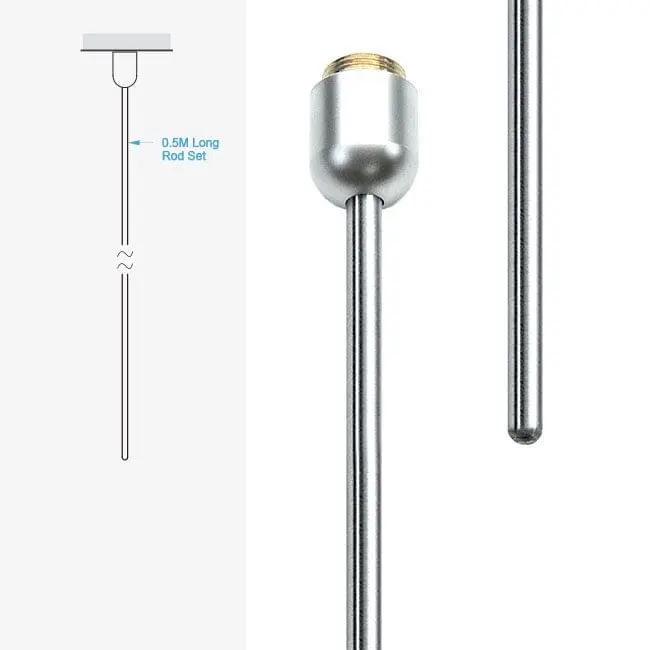

6mm (1/4″) Dia. Rod Suspension Kit with Top/Ceiling Fixing and 0.5M Long Rod w/Dome End

The KRS-0.5M rod suspension kit includes a ceiling fixing and a threaded rod with dome end. It is designed for typical ceiling-overhead suspended applications or wall projecting installations. The kit comes with one 0.5M (1′ 7-11/16”) long threaded rod.

The KRS-0.5M top/ceiling rod hanging kit features a minimalist ergonomic design and is engineered for flexibility and durability. The top fitting is crafted from robust solid brass alloy. The rod, made from durable stainless steel, provides exceptional weight support and stability. When properly secured, the rods can support up to 200 kg (441 lbs) per fixing point (subject to fixing). The 6mm (1/4″) diameter rods can be used with various standard, multi-position, or specialty supports for holding graphic panels, hanging overhead signs, acrylic or glass shelves, graphic holders, horizontal rods for fabrics, and various other presentations.

Additionally, the KRS-0.5M rod suspension kit is compatible with a range of accessories, such as sign blanksinfo/poster acrylic holdersacrylic frames, and acrylic or glass shelves.

Explore All Rod Fixing Kits

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

Attributes

Top Fixing

Rod Diameter

Rod Length

Load Limits

Compatibility

Weight

Mounting Options

Materials

,

Finish

,

Allen Wrench Size

Availability


Specifications for RS

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all rod display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.

Colors/Finishes:

Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor use only. Rod system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 316/582 rods that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Quality/Warranty:

Rod fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.

Installations Instructions

How to Install RS Top/Ceiling Fixing for Rods – Screw Fit ❯ DOWNLOAD THE PDF HERE.
