FIXING WITH ROD SUPPORT SINGLE FOR 6mm (1/4″) DIA. RODS
Original price was: $15.70.$13.35Current price is: $13.35.
Includes Standard Push Fit Fixing and Single-Sided Support for Rods
Availability: In stock
Product Description

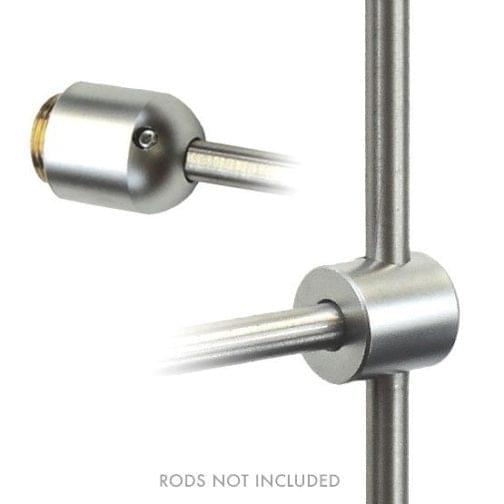

Fixing with Support Single for Rods

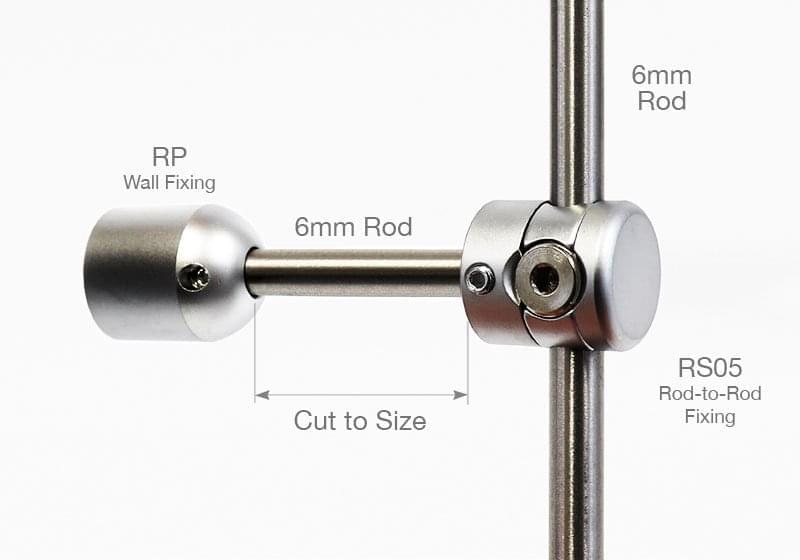

Use with 6mm (1/4″) Dia. Rods to create customized depth applications – use cut lengths of non-threaded rod as a tie-back to a wall to stabilize the rod.
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Top Fixing | |
|---|---|
| Load Limits | |
| Compatibility | Use with any 6mm non-threaded rods to create customized depth applications |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |

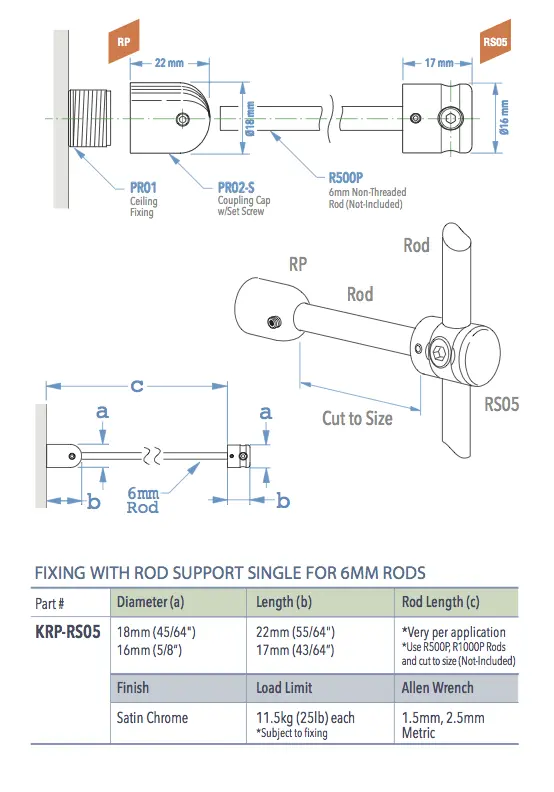

DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all rod display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors/Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Rod system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 316/582 rods that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Rod fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
Installations Instructions
How to Install KRP-RS05 Shelf Support Double-Sided ❯ DOWNLOAD THE PDF HERE.
