CEILING-TO-FLOOR ROD FIXING KIT with 6mm Rods – 3M (9’ 10”) Length
Original price was: $61.40.$52.19Current price is: $52.19.
Availability: In stock
Product Description

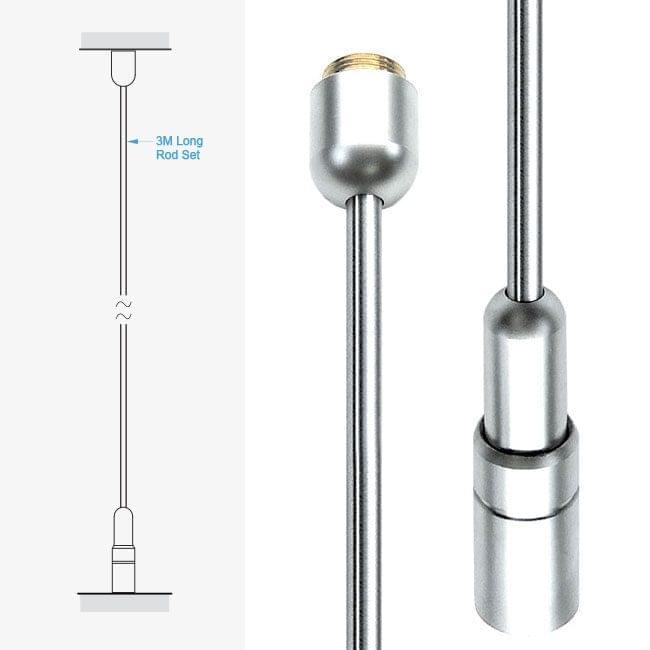

6mm (1/4″) Dia. Rod Suspension Kit with Ceiling-to-Floor Fixings and two 1.5M Long Rods — 3M (9’ 10”) Total Length

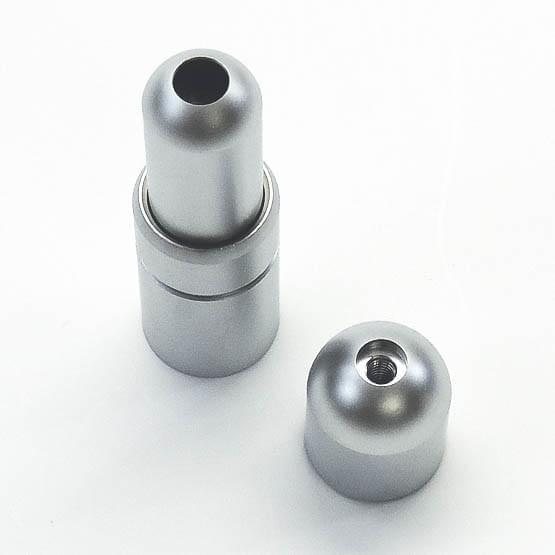

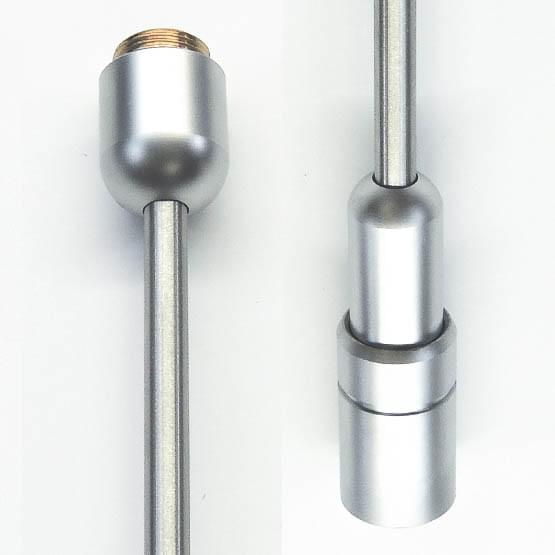

The KRAS-3M rod suspension kit includes a ceiling fixing, a bottom/floor adjustable tensioner fixing, and two rods. It is designed for typical ceiling-to-floor or tailored suspended applications, such as installations inside window frames, glass cabinets, and rails or tracks. The kit comes with two 1.5M (4′ 11-1/16″) long threaded rods, which can be joined to create a 3M (9′ 10″) total height and cut to size on-site during installation. Once screwed together, the rods appear continuous. For projects requiring longer lengths, additional rods can be purchased separately.
The KRAS-3M ceiling-to-floor rod hanging kit features a minimalist ergonomic design and is engineered for flexibility and durability. The top/bottom fittings are crafted from robust solid brass alloy. The rods, made from durable stainless steel, provide exceptional weight support and stability. When properly secured, the rods can support up to 200 kg (441 lbs) per fixing point (subject to fixing). The 6mm (1/4″) diameter rods can be used with various standard, multi-position, or specialty supports for holding graphic panels, acrylic or glass shelves, decorative partition panels, display showcases, aluminum or wood frames, hanging clothes rails, graphic holders, horizontal rods for fabrics, wine bottles, and various other presentations.
The KRAS-3M rod suspension kit can also be used with aluminum rails/tracks to enhance display flexibility and simplify installation. By using toggles affixed to the rod anchor, users can adjust the rods and move them sideways. Tracks are available in lengths of 4, 6, or 8 feet, with custom sizes or continuous runs available upon request. For installation, rail or track systems must be securely mounted to a solid structure or blocking, which includes attaching tracks to ceiling struts, structures above the ceiling line, or wall studs.
Additionally, the KRAS-3M rod suspension kit is compatible with a range of accessories, such as info/poster acrylic holders, acrylic frames, backlit displays, brochure and literature acrylic holders, magazine and book acrylic holders, acrylic showcases, flat glass shelves, and sloped acrylic shelves.
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Top Fixing | |
|---|---|
| Bottom Fixing Tensioner | |
| Rod Diameter | |
| Rod Length | |
| Load Limits | |
| Compatibility | Use with any 6mm threaded rods for top/ceiling to floor fixings for a variety of applications |
| Weight | |
| Mounting Options | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all rod display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors/Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Rod system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 316/582 rods that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Rod fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
Installations Instructions
How to Install RAS Top/Ceiling & Bottom Fixing Kit for Rods ❯ DOWNLOAD THE PDF HERE.
