TOP/CEILING FIXING FOR 10mm (3/8″) DIA. RODS – Screw Fit
Original price was: $6.90.$6.21Current price is: $6.21.
Includes Top Fixing with base support for right-hand M6 threaded rods. Use with 10mm (3/8″) diameter rods for ceiling suspensions or wall projecting installations (*not included).
Availability: In stock
Product Description

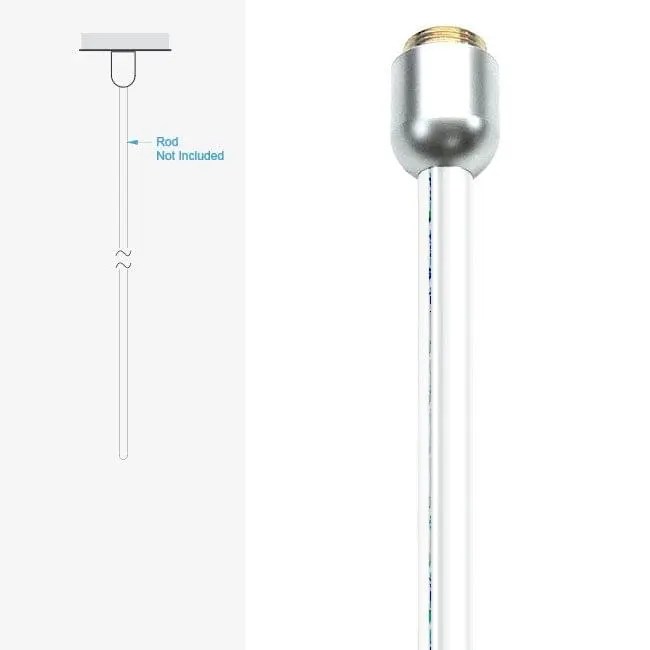

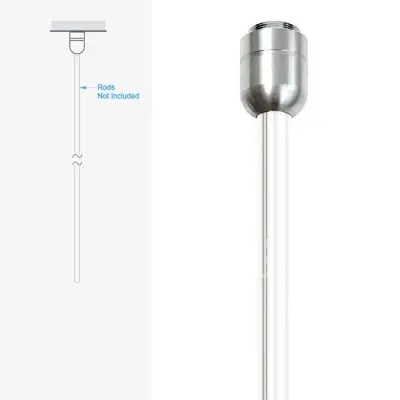

Top/Ceiling Fixing for 10mm (3/8″) Dia. Rods – Screw Fit
The RS-10 top/ceiling rod fixing is designed for typical ceiling-overhead suspended applications or wall projecting installations. It is compatible with our standard right-hand M6 threaded 10mm diameter rods in lengths of 1.5m (4′ 11-1/16″), 1.0m (3′ 3-3/8”), and 0.5m (1′ 7-11/16”).

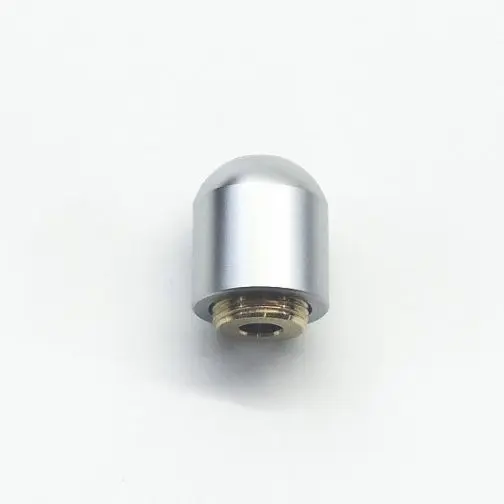

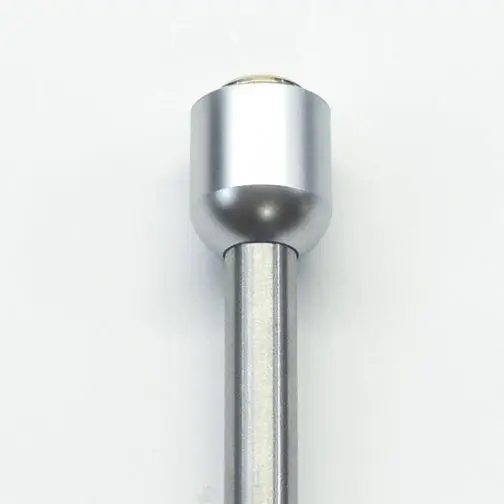

The RS-10 top/ceiling rod fixing is made of robust solid brass alloy. When properly secured to the ceiling, it can provide exceptional weight support and stability. The entire assembly with connected rods can support up to 200 kg (441 lbs) per fixing point (for ceiling applications, subject to fixing to studs or solid structure). The 10mm (3/8″) diameter rods can be used with various standard, multi-position, or specialty supports for holding graphic panels, hanging overhead signs, acrylic or glass shelves, graphic holders, horizontal rods for fabrics, and various other presentations.
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Top Fixing | |
|---|---|
| Load Limits | |
| Compatibility | |
| Weight | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |

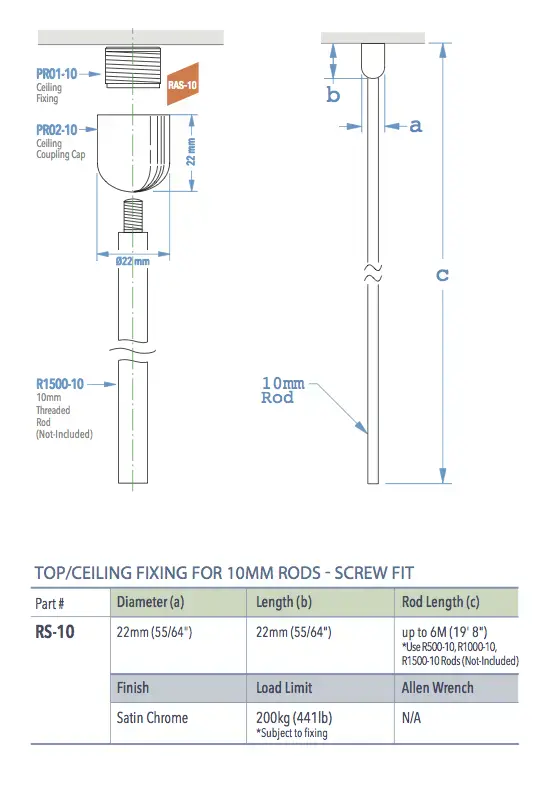

DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all rod display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors/Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Rod system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 316/582 rods that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Rod fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
Installations Instructions
How to Install RS-10 Top/Ceiling Fixing for Rods – Screw Fit ❯ DOWNLOAD THE PDF HERE.
You may also consider these products...
-

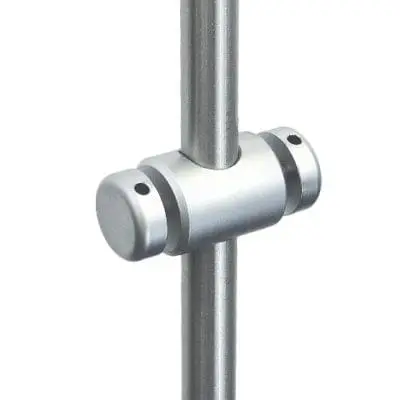

SUPPORT FOR PANELS WITH HOLES SINGLE – For panels up to 5-6mm (3/16″-15/64″) thick. (Use with 10mm Rods)
Original price was: $9.60.$8.16Current price is: $8.16. Add to cart -
MULTI-POSITION TOP/BOTTOM SUPPORT SINGLE – For panels up to 7mm (1/4″) thick. (Use with 10mm Rods)
Original price was: $8.90.$8.01Current price is: $8.01. Add to cart -

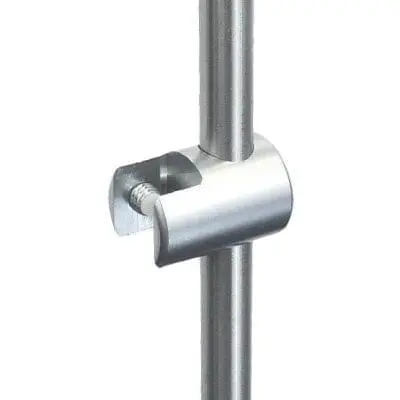

VERTICAL SUPPORT SINGLE – For panels up to 12.7mm (1/2″) thick. (Use with 10mm Rods)
