TOP/CEILING FIXING KIT with 10mm Rod – 1M (3’ 3-3/8”) Length

Original price was: $38.20.Current price is: $32.47.

Top/Ceiling Fixing Kit with 10mm Rod — Includes RS-10 Top Fixing (1 ea), R1000-10 10mm (3/8″) diameter threaded rod (1 ea), and REC-10 decorative end cap (1 ea). Use for ceiling suspended applications.

Frequently Bought Together with:

VERTICAL SUPPORT SINGLE – For panels up to 7mm (1/4") thick. (Use with 10mm Rods)

For panels up to 7mm (1/4") thick. Use with10mm (3/8") Dia. Rod Suspensions. Ideal for supporting acrylic pockets, signs and graphic panels from sides

VERTICAL SUPPORT DOUBLE – For panels up to 7mm (1/4") thick. (Use with 10mm Rods)

For panels up to 7mm (1/4") thick. Use with 10mm (3/8") Dia. Rod Suspensions. Ideal for supporting acrylic pockets, signs and graphic panels from sides

DECORATIVE SUPPORT PLATE

Ideal for use as decorative support plate

Availability: In stock

Product Description

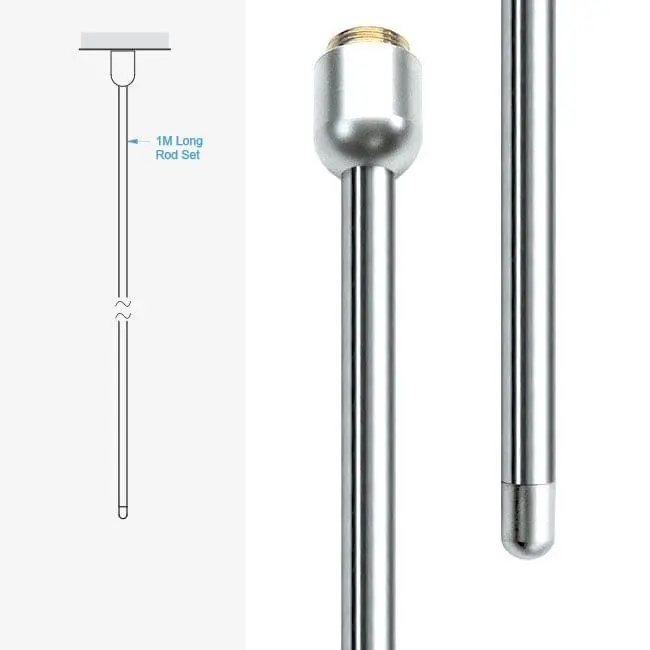

10mm (3/8″) Dia. Rod Suspension Kit with Top/Ceiling Fixing, 1.0M Long Rod, and Decorative End Cap

The KRS-10-1M rod suspension kit includes a ceiling fixing, a threaded rod, and a decorative end cap for rod. It is designed for typical ceiling-overhead suspended applications. The kit comes with one 1M (3’ 3-3/8”) long threaded rod, which can be cut to size on-site during installation. For projects requiring longer lengths, additional rods can be purchased separately.

The KRS-10-1M top/ceiling rod hanging kit features a minimalist ergonomic design and is engineered for flexibility and durability. The top fitting is crafted from robust solid brass alloy. The rod, made from durable stainless steel, provides exceptional weight support and stability. When properly secured, the rods can support up to 200 kg (441 lbs) per fixing point (subject to fixing). The 10mm (3/8″) diameter rods can be used with various standardmulti-position, or specialty supports for holding graphic panels, hanging overhead signs, acrylic or glass shelves, decorative partition panels, aluminum or wood frames, hanging clothes rails, graphic holders, horizontal rods for fabrics, and various other presentations.

Additionally, the KRS-10-1M rod suspension kit is compatible with a range of accessories, such as sign blanksinfo/poster acrylic holdersacrylic frames, and acrylic or glass shelves.

Explore All Rod Fixing Kits

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

Attributes

Top Fixing

Rod Diameter

Rod Length

Load Limits

Compatibility

Weight

Mounting Options

Materials

,

Finish

,

Allen Wrench Size

Availability


Specifications for RS-10

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all rod display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.

Colors/Finishes:

Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor use only. Rod system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 316/582 rods that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Quality/Warranty:

Rod fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.

Installations Instructions

How to Install RS-10 Top/Ceiling Fixing for Rods – Screw Fit ❯ DOWNLOAD THE PDF HERE.
