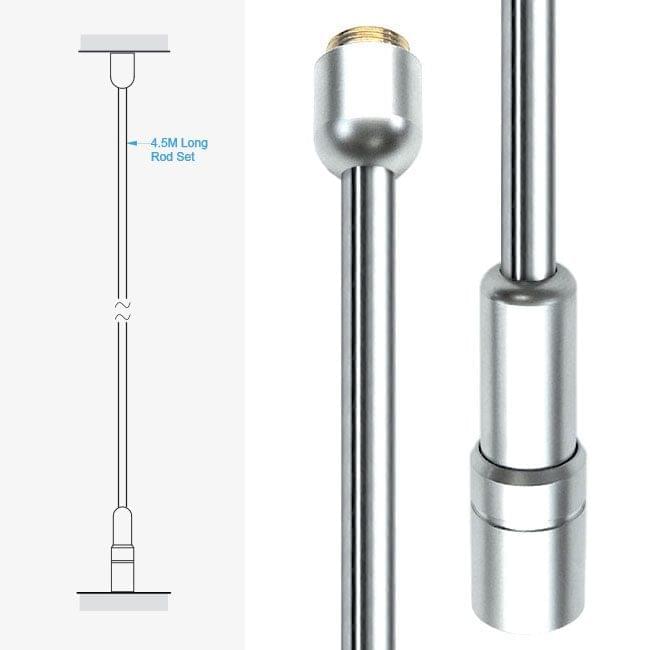

CEILING-TO-FLOOR ROD FIXING KIT with 10mm Rods – 4.5M (14’ 9”) Length

Original price was: $139.40.Current price is: $118.49.

Ceiling-to-Floor Fixing Kit with 10mm Rods – Includes RAS-10 Top/Bottom Fixings with Spring Tensioner (1 ea) and R1500-10 10mm (3/8″) diameter threaded rods (3 ea). Use with ceiling-to-floor suspended application — Join to 4.5M (14’ 9”) total height and cut to size on-site during installation.

Frequently Bought Together with:

VERTICAL SUPPORT SINGLE – For panels up to 7mm (1/4") thick. (Use with 10mm Rods)

For panels up to 7mm (1/4") thick. Use with10mm (3/8") Dia. Rod Suspensions. Ideal for supporting acrylic pockets, signs and graphic panels from sides

SHELF SUPPORT SINGLE – For shelves up to 7mm (1/4") thick. (Use with 10mm Rods)

Ideal for supporting acrylic and glass shelves up to 7mm (1/4") thick. Use with 10mm (3/8") Dia. Rod Suspensions.

SUPPORT FOR PANELS WITH HOLES SINGLE – For panels up to 5-6mm (3/16"-15/64") thick. (Use with 10mm Rods)

Use for supporting signs and graphic panels 5-6mm (3/16"-15/64") thick. Panel hole size diameter 6mm (15/64"). Use with 10mm (3/8") Dia. Rod Suspensions. *Supports for thicker panels are also available.

0.5M (1' 7-11/16") LONG 10mm (3/8") Dia. Threaded Rod

Right Handed M6 Threaded Rod at Both Ends

Availability: In stock

Product Description

10mm (5/8″) Dia. Rod Suspension Kit with Ceiling-to-Floor Fixings and two 1.5M Long Rods — 4.5M (14’ 9”) Total Length

The KRAS-10-4.5M rod suspension kit includes a ceiling fixing, a bottom/floor adjustable tensioner fixing, and three rods. It is designed for typical ceiling-to-floor or tailored suspended applications, such as installations inside window frames, glass cabinets, and rails or tracks. The kit comes with three 1.5M (4′ 11-1/16″) long threaded rods, which can be joined to create a 4.5M (14’ 9”) total height and cut to size on-site during installation. Once screwed together, the rods appear continuous. For projects requiring longer lengths, additional rods can be purchased separately.

The KRAS-10-4.5M ceiling-to-floor rod hanging kit features a minimalist ergonomic design and is engineered for flexibility and durability. The top/bottom fittings are crafted from robust solid brass alloy. The rods, made from durable stainless steel, provide exceptional weight support and stability. When properly secured, the rods can support up to 200 kg (441 lbs) per fixing point (subject to fixing). The 10mm (3/8″) diameter rods can be used with various standard, multi-position, or specialty supports for holding graphic panels, acrylic or glass shelves, decorative partition panels, display showcases, aluminum or wood frames, hanging clothes rails, graphic holders, horizontal rods for fabrics, wine bottles, and various other presentations.

The KRAS-10-4.5M rod suspension kit can also be used with aluminum rails/tracks to enhance display flexibility and simplify installation. By using toggles affixed to the rod anchor, users can adjust the rods and move them sideways. Tracks are available in lengths of 4, 6, or 8 feet, with custom sizes or continuous runs available upon request. For installation, rail or track systems must be securely mounted to a solid structure or blocking, which includes attaching tracks to ceiling struts, structures above the ceiling line, or wall studs.

Additionally, the KRAS-10-4.5M rod suspension kit is compatible with a range of accessories, such as info/poster acrylic holdersacrylic frames, backlit displays, brochure and literature acrylic holdersmagazine and book acrylic holdersacrylic showcasesflat glass shelves, and sloped acrylic shelves.

Explore All Rod Fixing Kits

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

Attributes

Top Fixing

Bottom Fixing Tensioner

Rod Diameter

Rod Length

Load Limits

Compatibility

Weight

Mounting Options

Material Thickness

Materials

,

Finish

,

Allen Wrench Size

Availability


Specifications for RAS-10

DOWNLOAD PRODUCT SPECS RAS-10

Composition and Materials:

For durability, all rod display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.

Colors/Finishes:

Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor use only. Rod system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 316/582 rods that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Quality/Warranty:

Rod fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.

Installations Instructions

How to Install RAS-10 Top/Ceiling & Bottom Fixing Kit for Rods ❯ DOWNLOAD THE PDF HERE.
