SUPPORT DOUBLE for P07/SS Boss (*Use with 10mm Stainless Rod System)
Original price was: $8.90.$8.01Current price is: $8.01.
Use with 10mm Rod Suspension System in stainless steel finish to support wood panels and shelves, display cases, or clothing/hanging rails.
Availability: In stock
Product Description
Rod Support for P07/SS Boss Double-Sided — Wood Panel/Shelf Support / Non-Removable (#304 Stainless Steel)
The RR104/SS rod boss support features a 19mm (3/4″) diameter round profile fitting, designed for suspending wood panels, shelves, or any item fitted with a boss and screw (ref. P07/SS). This high-quality double-sided panel/shelf support is made of solid stainless steel and is compatible with our 10mm stainless steel rod display system / hanging hardware kits.
The boss supports are excellent for hanging wooden panels, shelves, display cases, cabinets, and other custom suspended wood or metal fixtures. Attaching the boss supports to suspended panels or shelves is easily accomplished by affixing them to the edges of the panels or shelves with the P07/SS boss and a #10 screw or bolt. The entire assembly is then attached to rods and securely locked into the desired position with set screws and the supplied hex key. Use the double-sided boss supports to link together adjoining shelves that share a single rod.
Key Features:
• Double-sided boss support for wooden panels and shelves
• Ideal for hanging thick panels, shelves, or display cases
• Use at least two clamp supports per shelf at the joined side
• Made of stainless steel alloy with natural brushed stainless finish
• Boss supports are recommended for panels or shelves that are over 20mm (3/4″) in thickness
• Recommended safety load limit per fitting: 12kg (25lb)
• Works with a wide range of materials, such as wood, plywood, metal, aluminum composite, etc.
• Compatible with 10mm (3/8″) diameter stainless steel rod suspension system
Attributes
| Load Limits | |
|---|---|
| Compatibility | |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |

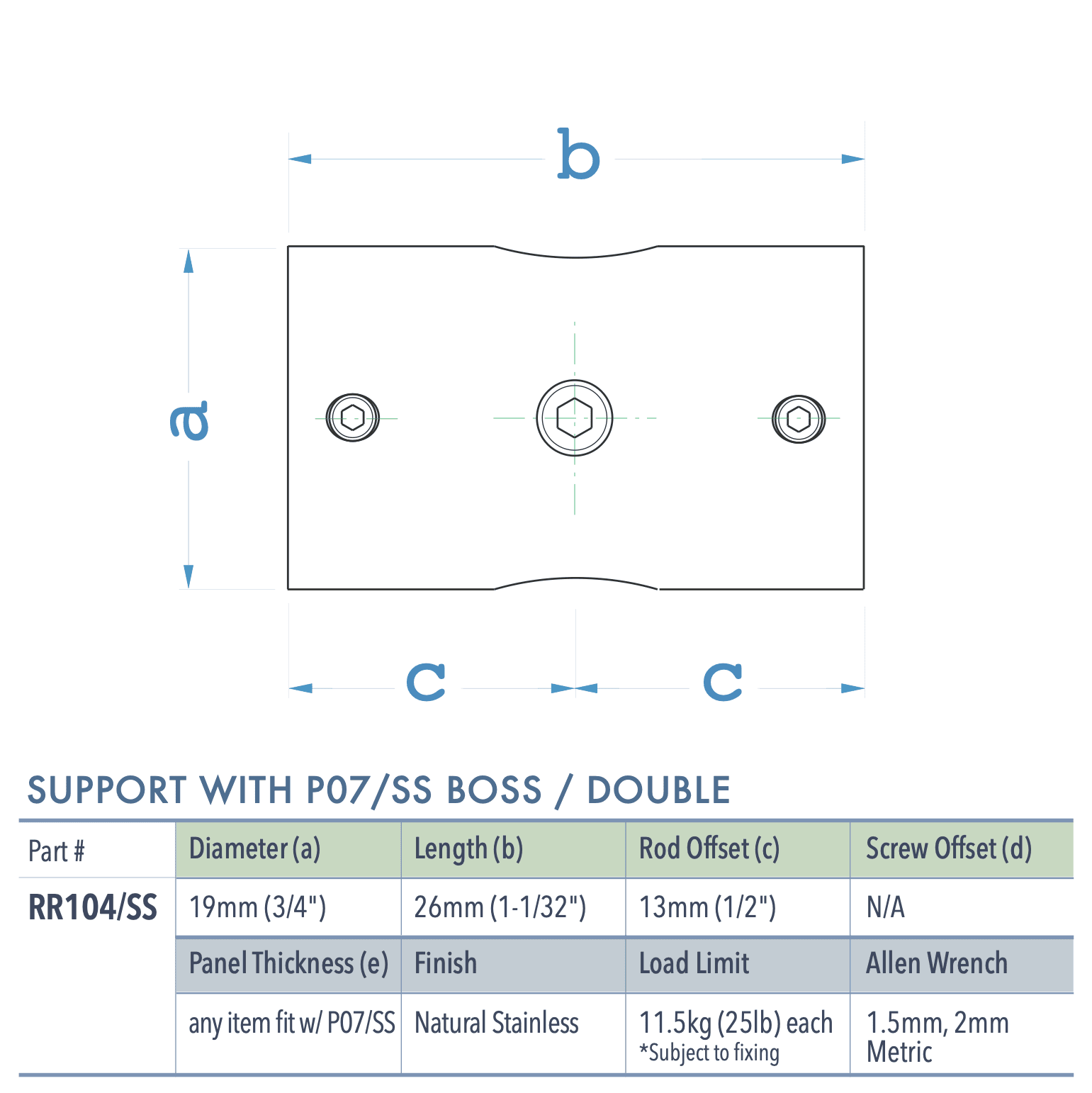

DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all rod display fittings, internal components, and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.
Colors/Finishes:
Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor and outdoor use. Our stainless steel rod system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 rods that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.
Quality/Warranty:
Rod fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
You may also consider these products...
-
CLOTHING RAIL for 6mm and 10mm Rod Display System
$29.40 – $85.90 Select options This product has multiple variants. The options may be chosen on the product page -
CEILING-TO-FLOOR ROD FIXING KIT with 10mm Rods – 4.5M (14’ 9”) Length
Original price was: $139.60.$118.66Current price is: $118.66. Add to cart -

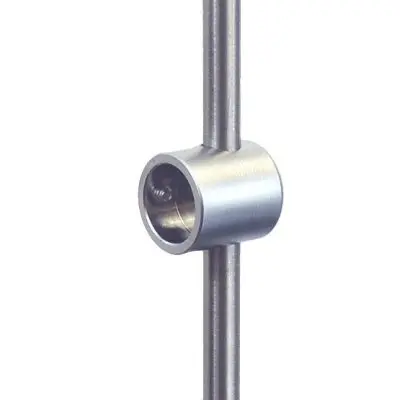

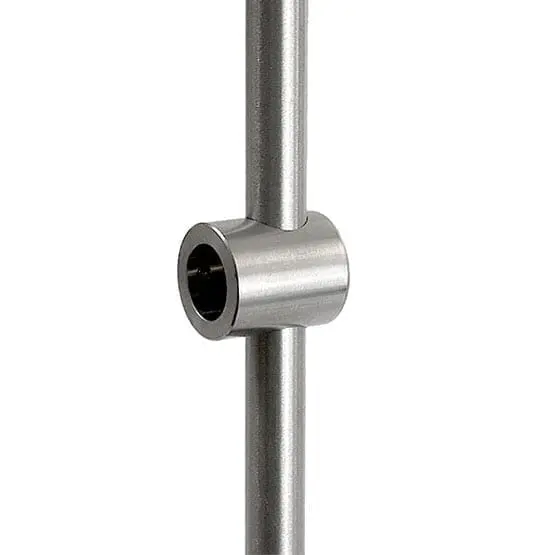

SUPPORT SINGLE for P07/SS Boss (*Use with 10mm Stainless Rod System)
