VERTICAL SUPPORT SINGLE – For panels up to 7mm (1/4″) thick. (*Use with 10mm Stainless Rod System)
Original price was: $8.70.$7.83Current price is: $7.83.
Ideal for supporting acrylic pockets, signs and graphic panels up to 7mm (1/4″) thick from sides. Use with 10mm (3/8″) Dia. Rod Suspensions in Stainless Steel Finish.
Availability: In stock
Product Description

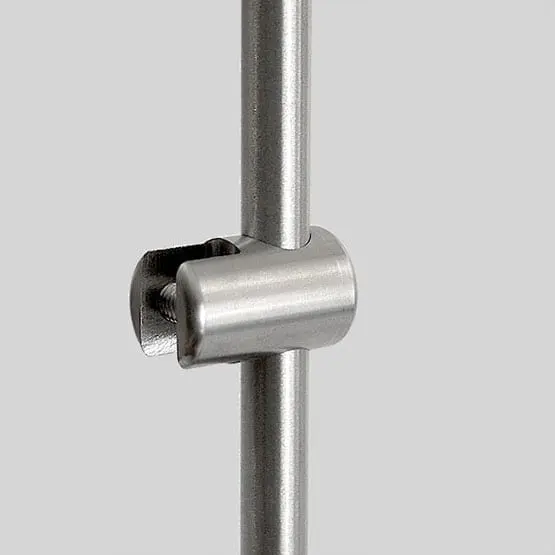

Rod Panel Support Single-Sided — Vertical Grip-Support / Non-Removable (#304 Stainless Steel)
The RP101/SS rod side clamp support features a 16mm (5/8″) diameter round profile fitting, designed for suspending medium to large size vertical panels up to 7mm (1/4″) thick. This high-quality single-sided panel display clamp is made of solid stainless steel and is compatible with our 10mm stainless steel rod display system / hanging hardware kits.

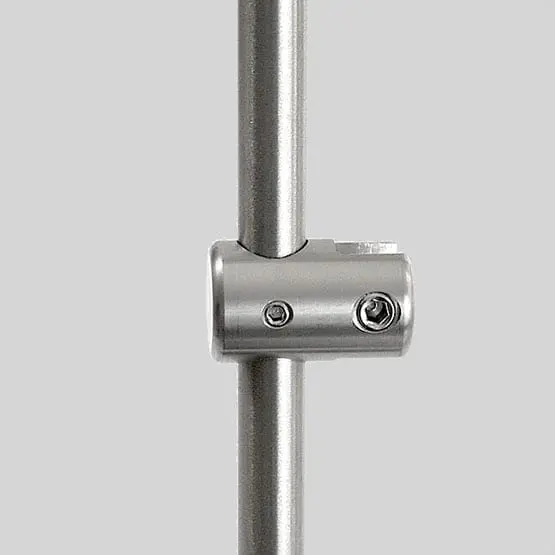

The side clamps are great for supporting info/poster acrylic holders, acrylic frames, literature acrylic holders, angled acrylic shelves, magazine/book acrylic holders, menu boards, window displays, sign blanks, and graphic panels from the sides. Attaching the clamp supports to panels is easily done by affixing them to substrate sides with the specially designed nylon-tipped grub screw. The entire assembly is then attached to suspended rods and securely locked into the desired position with the set screws and supplied hex key.
Key Features:
• Single-sided vertical-grip clamp support for non-drilled panels
• Use at least four clamp supports per panel (larger panels may require 3-4 supports per side)
• Made of stainless steel alloy with natural brushed stainless finish
• Clamp supports grip onto panels up to 7mm (1/4″) thickness
• Recommended Safety Load Limits per Fitting: 12kg (25lb)
• Nylon-tipped grub screws securely fasten the panels and protect the surfaces from damage
• Works with a wide range of materials, such as acrylic, tempered glass, PVC, foam-core, wood, etc.
• Compatible with 10mm (3/8″) diameter stainless steel rod suspension system
Attributes
| Load Limits | |
|---|---|
| Compatibility | Use with 10mm (3/8") Dia. Stainless Steel Rods to Suspend Acrylic Pockets, Signs or Graphic Panels. |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |

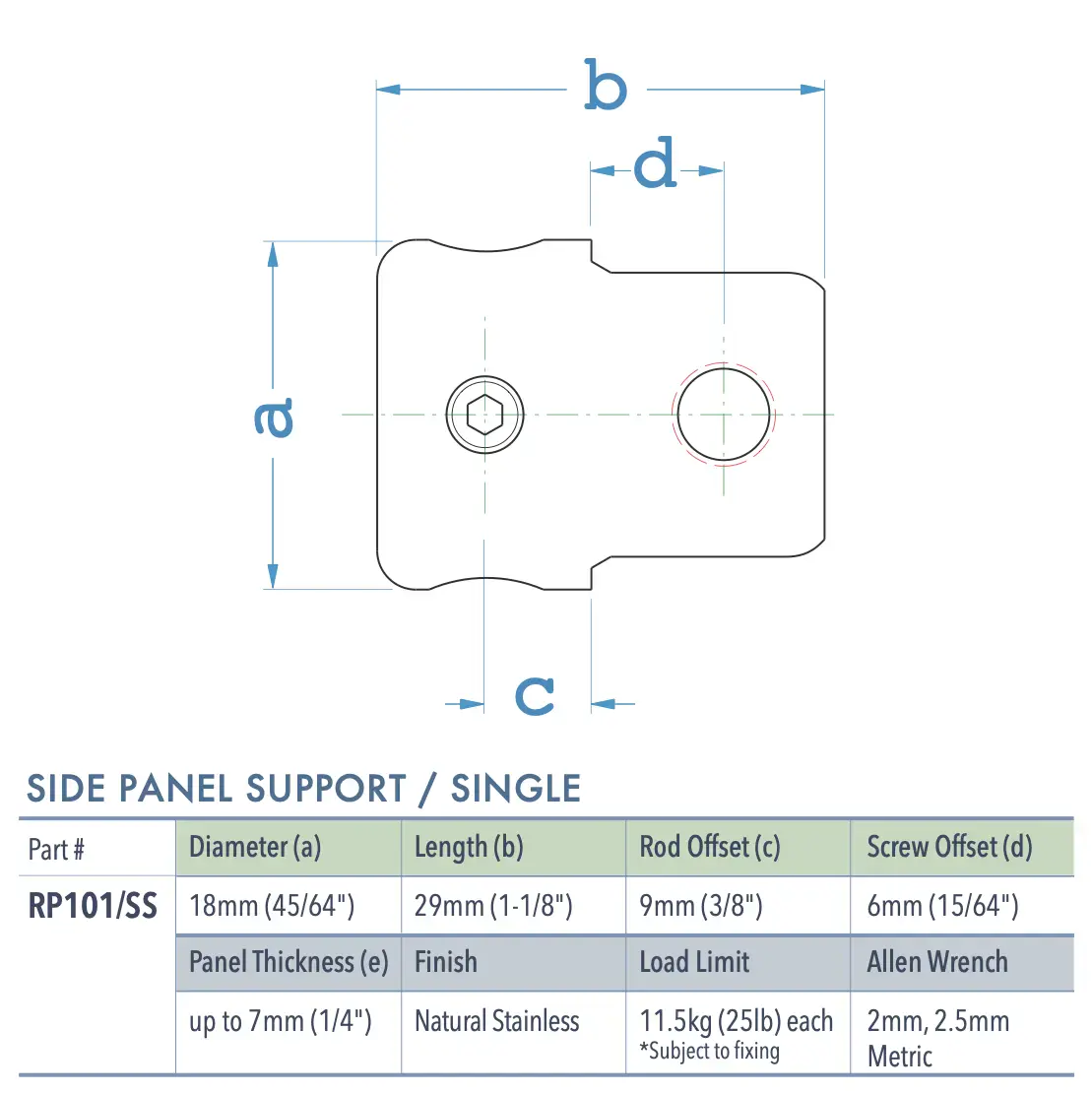

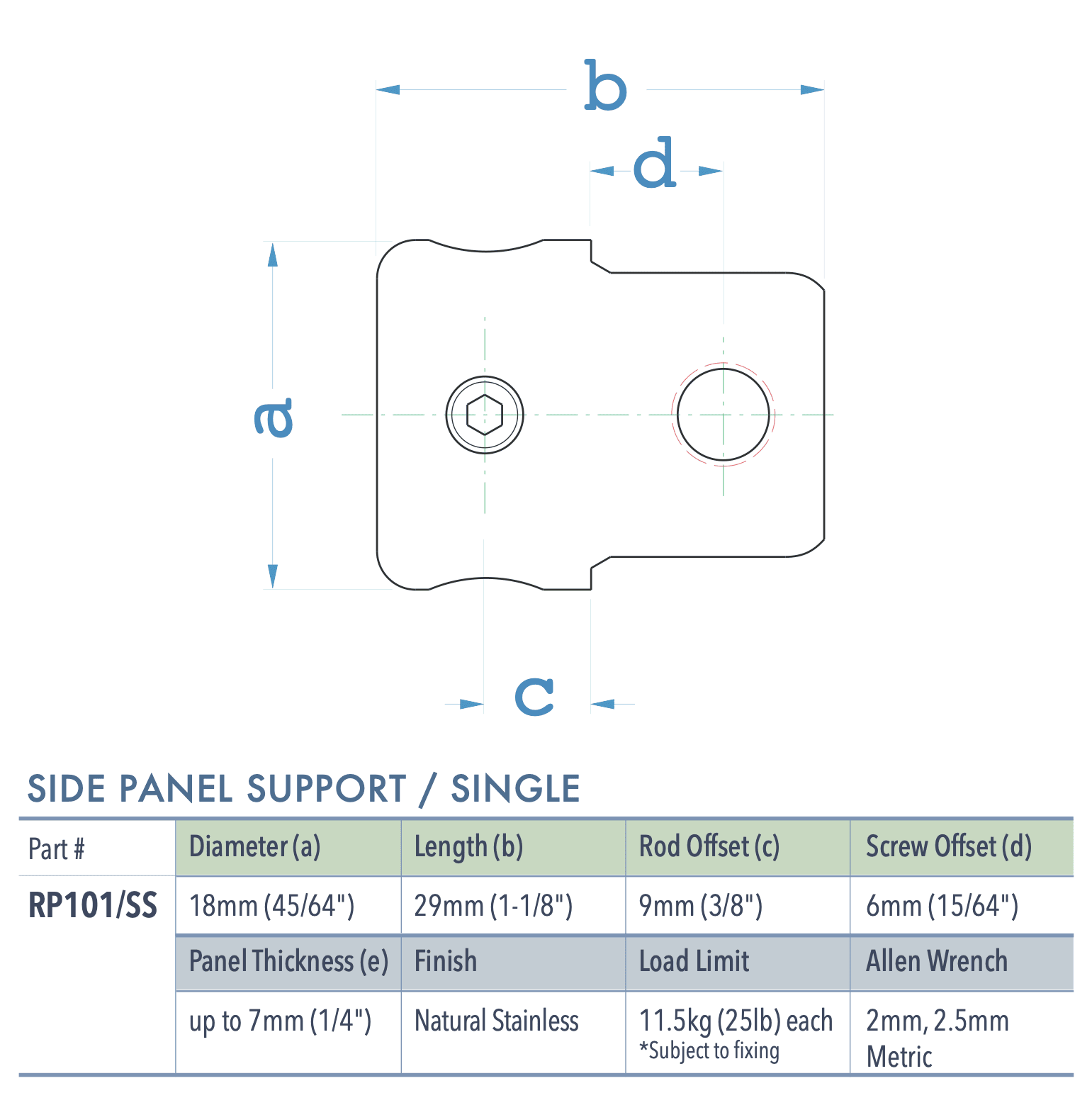

DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all rod display fittings, internal components, and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.
Colors/Finishes:
Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor and outdoor use. Our stainless steel rod system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 rods that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.
Quality/Warranty:
Rod fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
