SUPPORT w/SCREW-CAP – For 6-7mm (15/64″-1/4″) thick panels with holes. (*Use with 10mm Stainless Rod System)

Original price was: $7.20.Current price is: $6.48.

Use for supporting signs, graphic panels, and decorative screens 6-7mm (15/64”-1/4″) thick. Panel hole size diameter 7mm (1/4″). Use with 10mm (3/8″) Dia. Rod Suspensions in Stainless Steel Finish. *Supports for thicker panels are also available.

Frequently Bought Together with:

5/8" DIA PLASTIC WASHER SET for M6 Stud / 2 Pcs Set

16mm Dia. Nylon Washer for M6 Studs. Use with cable/rod fittings with threaded screw caps or modular standoffs (2 Pcs/Set)

SUPPORT w/SCREW-CAP – For 10mm (3/8″) thick panels with holes. (*Use with 10mm Stainless Rod System)

Use for supporting signs, graphic panels, and decorative screens up to 10mm (3/8″) thick. Panel hole size diameter 7mm (1/4″). Use with 10mm (3/8") Dia. Rod Suspensions in Stainless Steel Finish.

SUPPORT w/SCREW-CAP – For 12.7mm (1/2″) thick panels with holes. (*Use with 10mm Stainless Rod System)

Use for supporting signs, graphic panels, and decorative screens up to 12.7mm (1/2″) thick. Panel hole size diameter 7mm (1/4″). Use with 10mm (3/8") Dia. Rod Suspensions in Stainless Steel Finish.

Availability: In stock

Product Description

Rod Support with M6 Stud-Cap — Single-Sided Rod Standoff Support for Panels with Holes / Non-Removable (#304 Stainless Steel)

The RP108/SS rod standoff support features a 19mm (3/4″) diameter round profile fitting with an M6 stud-cap, designed for suspending medium to large-sized drilled panels up to 7mm (1/4″) thick or a combination of two panels 3mm (1/8″) thick each (*Supports for thicker panels are also available). This high-quality single-sided panel display standoff is made of solid stainless steel and is compatible with our 10mm stainless steel rod display system / hanging hardware kits.

These rod standoffs are ideal for supporting acrylic frames, decorative screens, partition walls, privacy screens, dividers, acoustic wall panels, window displays, signs, logo panels, and graphic panels. Supports attach to vertical or horizontal rods and are securely locked in place using set screws and the supplied hex key. All acrylic panels and accessories require 7mm (1/4″) diameter holes for use with M6 studs.

Key Features:
• Single-sided rod standoff support for drilled panels
• Recommended use of two to four supports per panel depending on size (larger panels may require 3-4 supports per side)
• Made of solid stainless steel alloy with natural brushed stainless finish
• Compatible with 6-7mm (15/64”-1/4″) thick panels (see options for thicker substrates)
• Recommended Safety Load Limit per Fitting: 12kg (25lb)
• Nylon washers available for use with glass panels
• Works with a wide range of materials, including acrylic, tempered glass, PVC, foam-core, wood, etc.
• Compatible with 10mm (3/8″) diameter stainless steel rod suspension system


Explore All Mounting Options

Attributes

Load Limits

Compatibility

Weight

Dimensions

Mounting Options

Material Thickness

Materials

Finish

Allen Wrench Size

Availability

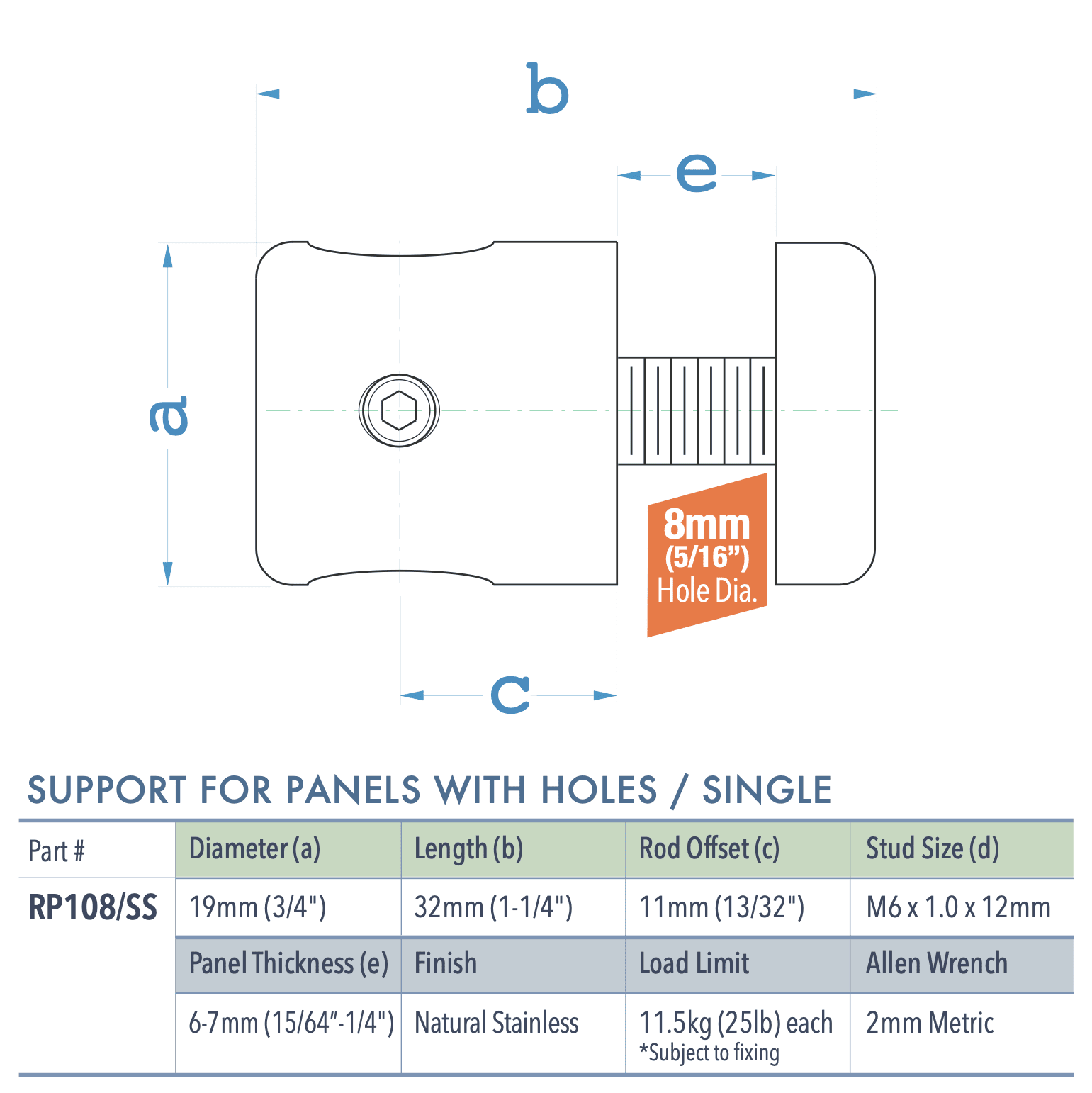

Specifications for RP108/SS

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all rod display fittings, internal components, and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.

Colors/Finishes:

Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor and outdoor use. Our stainless steel rod system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 rods that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.

Quality/Warranty:

Rod fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
