SUPPORT w/SCREW-CAP DOUBLE – For 6-7mm (15/64″-1/4″) thick panels with holes. (*Use with 10mm Stainless Rod System)

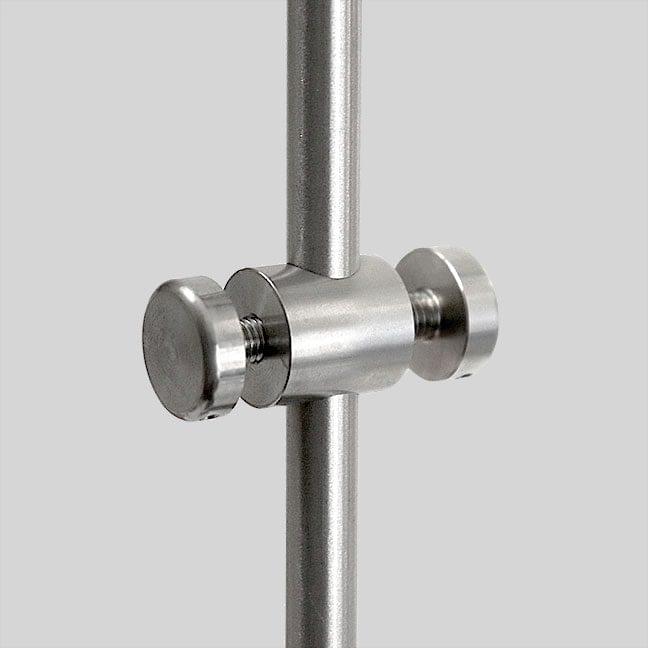

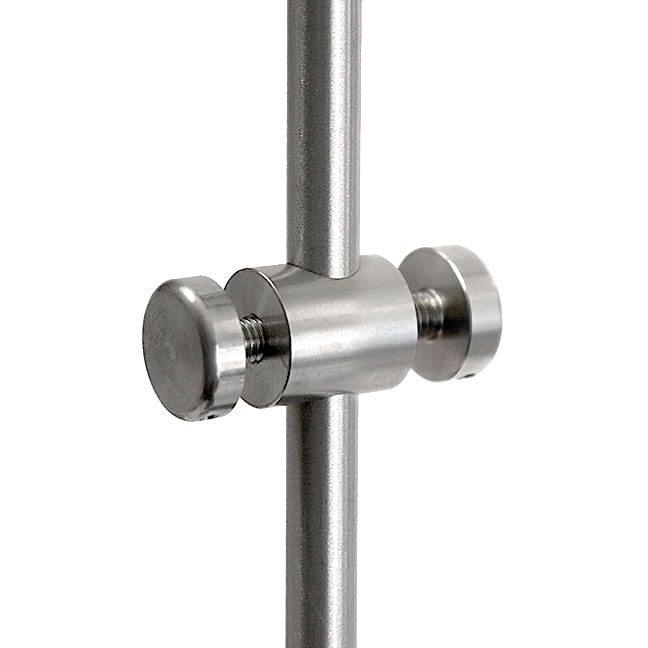

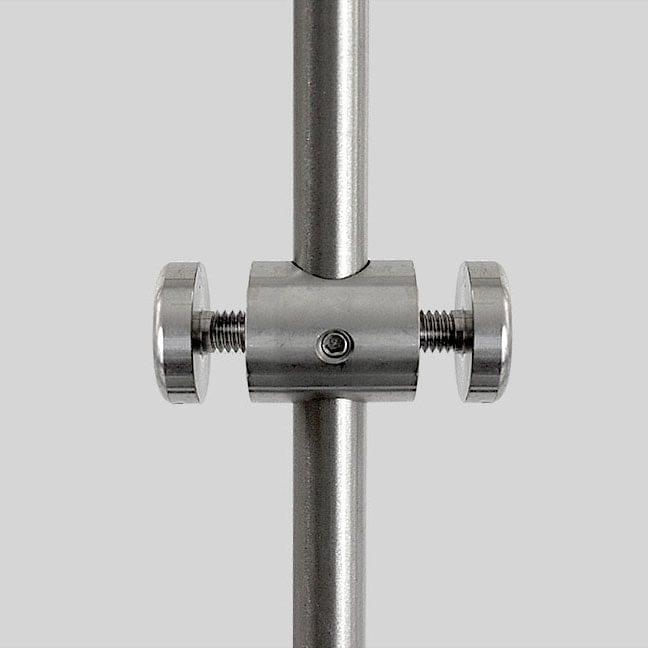

The RP109/SS rod standoff support features a 19mm (3/4″) diameter round profile fitting with an M6 stud-cap, designed for suspending medium to large-sized drilled panels up to 7mm (1/4″) thick or a combination of two panels 3mm (1/8″) thick each (*Supports for thicker panels are also available). This high-quality double-sided panel display standoff is made of solid stainless steel and is compatible with our 10mm stainless steel rod display system / hanging hardware kits.



These rod standoffs are ideal for supporting acrylic frames, decorative screens, partition walls, privacy screens, dividers, acoustic wall panels, window displays, signs, logo panels, and graphic panels. Supports attach to vertical or horizontal rods and are securely locked in place using set screws and the supplied hex key. All acrylic panels and accessories require 7mm (1/4″) diameter holes for use with M6 studs.



Key Features:
• Double-sided rod standoff support for drilled panels
• Recommended use of two to four supports per panel depending on size (larger panels may require 3-4 supports per side)
• Made of solid stainless steel alloy with natural brushed stainless finish
• Compatible with 6-7mm (15/64”-1/4″) thick panels (see options for thicker substrates)
• Recommended Safety Load Limit per Fitting: 12kg (25lb)
• Nylon washers available for use with glass panels
• Works with a wide range of materials, including acrylic, tempered glass, PVC, foam-core, wood, etc.
• Compatible with 10mm (3/8″) diameter stainless steel rod suspension system
