SHELF SUPPORT DOUBLE – For shelves up to 12.7mm (1/2″) thick. (*Use with 10mm Stainless Rod System)
Original price was: $12.80.$11.52Current price is: $11.52.
Ideal for supporting acrylic and glass shelves up to 12.7mm (1/2″) thick. Use with 10mm (3/8″) Dia. Rod Suspensions in Stainless Steel Finish.
Availability: In stock
Product Description

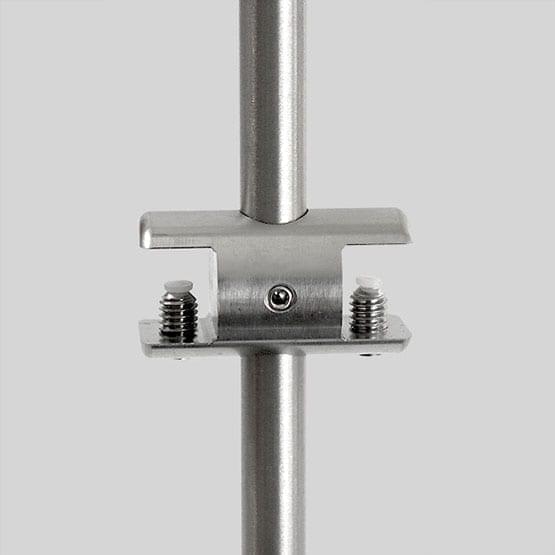

Rod Shelf Support Double-Sided — Horizontal Grip-Support / Non-Removable (#304 Stainless Steel)
The RS106/SS rod shelf clamp support features a 22mm (7/8″) diameter round profile fitting, designed for suspending acrylic or glass shelves up to 12.7mm (1/2″) thick. This high-quality double-sided shelf support is made of solid stainless steel and is compatible with our 10mm stainless steel rod display system / hanging hardware kits.
The side clamps are great for supporting lightweight acrylic shelves, flat tempered glass shelves, and other custom suspended acrylic fixtures. Attaching the clamp supports to shelves is easily done by affixing them onto the shelf edge with the specially designed nylon-tipped grub screw. The entire assembly is then attached to suspended rods and securely locked into the desired position with the set screws and supplied hex key. Use the double-sided supports to link together adjoining shelves that share a single rod.
Key Features:
• Double-sided shelf-grip clamp support for non-drilled shelves
• Use at least two clamp supports per shelf at the joined side
• Made of stainless steel alloy with natural brushed stainless finish
• Clamp supports grip onto shelves up to 12.7mm (1/2″) thickness
• Recommended Safety Load Limits per Fitting: 12kg (25lb)
• Nylon-tipped grub screws securely fasten the shelves and protect the surfaces from damage
• Works with a wide range of materials, such as acrylic, tempered glass, plywood, aluminum composite, etc.
• Compatible with 10mm (3/8″) diameter stainless steel rod suspension system
Attributes
| Load Limits | |
|---|---|
| Compatibility | Use with 10mm (3/8") Dia. Stainless Steel Rods to Suspend Acrylic and Glass Shelves |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all rod display fittings, internal components, and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.
Colors/Finishes:
Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor and outdoor use. Our stainless steel rod system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 rods that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.
Quality/Warranty:
Rod fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
