WALL-TO-WALL FIXING KIT with 10mm Rod (Short Projection) – 1.0M (3’ 3-3/8”) Length
Original price was: $41.70.$35.45Current price is: $35.45.
Wall-to-Wall Rod Fixing Kit – Includes two RWF-10-25/SS Wall Fixings and RD10-1.0M 10mm (3/8″) diameter threaded rod. Use with wall-to-wall suspended applications (finish ends or cut rod to size). Supported rods project from wall 16mm (5/8″) on center.
Availability: In stock
Product Description

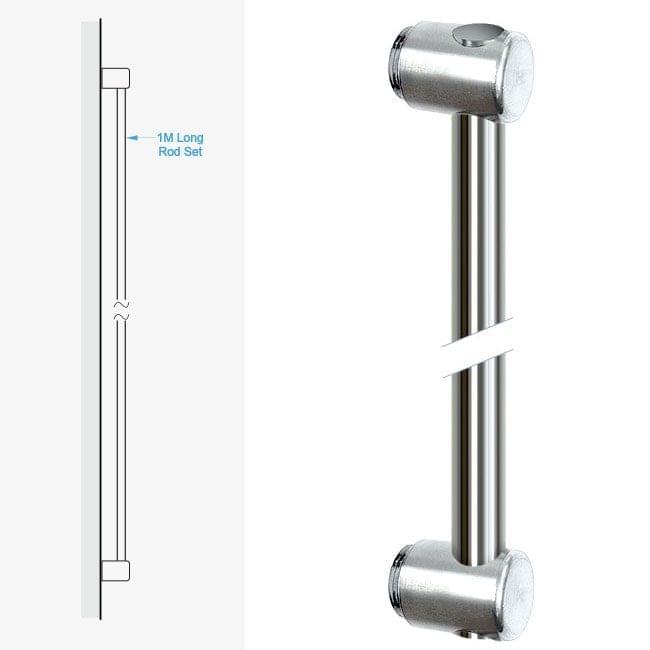

10mm (3/8″) Dia. Rod Suspension Kit with Wall-to-Wall Fixings and 1.0M (3’ 3-3/8”) Long Rod (#304 Stainless Steel)
The KRWF-10-25-1M stainless steel rod suspension kit includes wall fixings and a threaded rod. It is designed for typical wall-to-wall suspended applications and display installations. The kit comes with one 1.0M (3’ 3-3/8”) long threaded rod, which can be cut to size on-site during installation. For projects requiring longer lengths, additional rods and wall rod fixings can be purchased separately.
The KRWF-10-25-1M wall-to-wall rod hanging kit features a minimalist ergonomic design and is engineered for flexibility and durability. The wall fittings and rods are made of durable solid stainless steel alloy to provide exceptional weight support and stability. When properly secured to wall, the rods can support up to 120 kg (264 lbs) for vertical installations. However, for wall-mounted applications, we recommend adhering to a safety working load limit of 60 kg (132 lbs) per rod to ensure optimal security and longevity. The 10mm (3/8″) diameter stainless steel rods rods can be used with various standard or specialty supports for holding graphic panels, literature displays, acrylic shelves, decorative panels and screens, display showcases, aluminum or wood frames, graphic holders, horizontal rods for fabrics, and various other presentations. This versatility allows for creative and functional solutions in retail environments, exhibitions, office spaces, and other commercial or residential settings where sleek, adaptable display systems are desired.
Additionally, the KRWF-10-25-1M rod suspension kit is compatible with a range of accessories, such as info/poster acrylic holders, acrylic frames, backlit displays, brochure and literature acrylic holders, magazine and book acrylic holders, acrylic showcases, flat glass shelves, and sloped acrylic shelves.
Attributes
| Dimensions | |
|---|---|
| Rod Diameter | |
| Rod Length | |
| Load Limits | |
| Compatibility | Use with any 10mm rods for wall or fixture fixings for a variety of applications |
| Weight | |
| Mounting Options | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all rod display fittings, internal components, and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.
Colors/Finishes:
Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor and outdoor use. Our stainless steel rod system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 rods that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.
Quality/Warranty:
Rod fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
Installations Instructions
Installing RWF-10-25/SS Wall Fixing is similar to intalling WM11-10 Wall Fixing for Rods ❯ DOWNLOAD THE PDF HERE.
