WALL FIXING / SHORT for 10mm (3/8″) Dia. Rods (*Use with 10mm Stainless Rod System)
Original price was: $7.40.$6.29Current price is: $6.29.
Ideal for supporting wall mounted rod displays, signs, or other applications. Use with 10mm (3/8″) Dia. Rod Suspensions in Stainless Steel Finish. Includes Wall Plug and Wall Coupling Cap. Supported rods project from wall 16mm (5/8″) on center.
Availability: In stock
Product Description

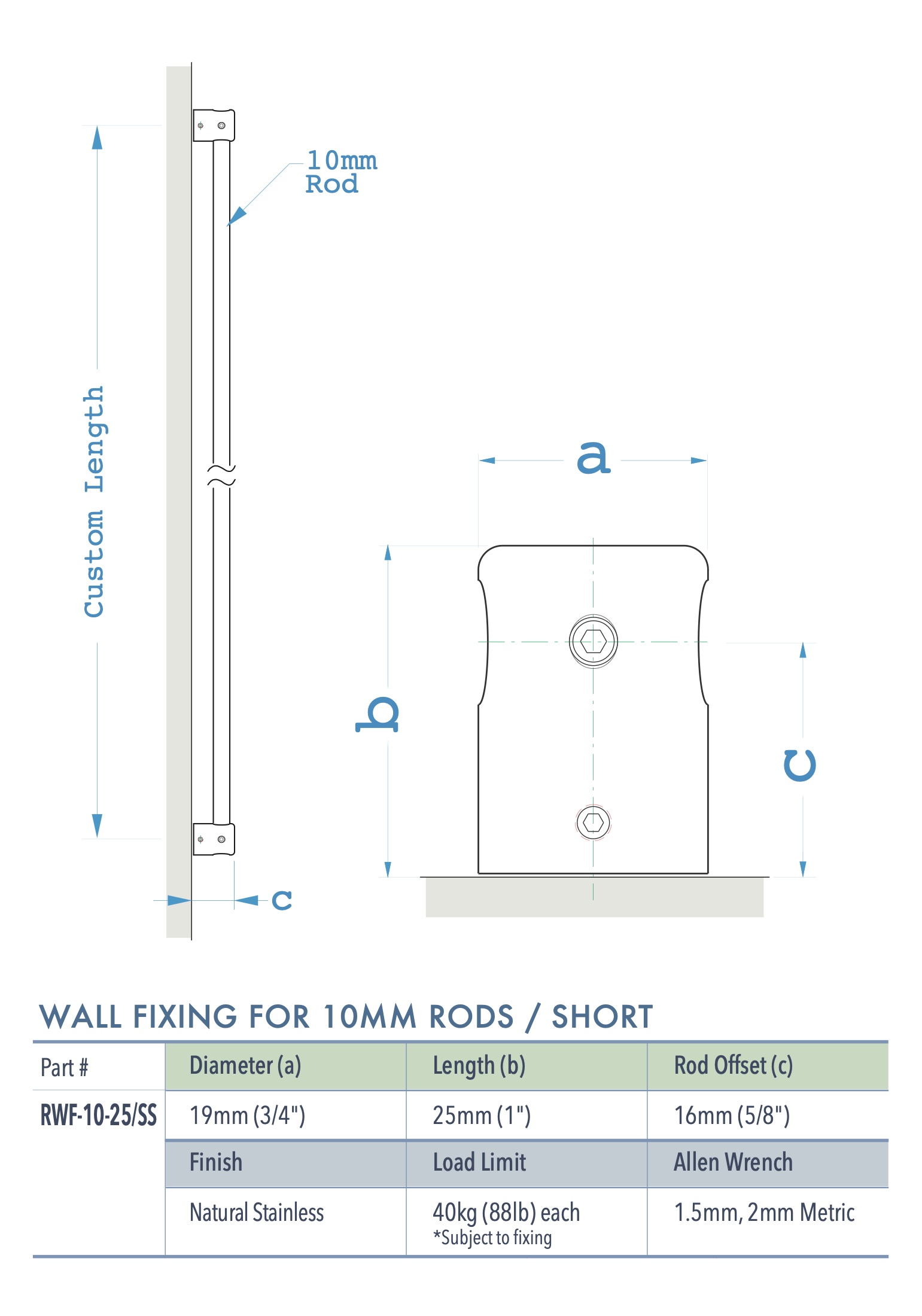

Wall Fixing with Non-Threaded Base for 10mm (3/8″) Dia. Rods (#304 Stainless Steel)
The RWF-10-25/SS wall rod fixing is designed for typical wall-to-wall suspended applications and display installations. It is compatible with our standard right-hand M6 threaded 10mm diameter stainless steel rods in lengths of 1.5m (4′ 11-1/16″), 1m (3′ 3-1/32″), and 0.5m (1′ 7-11/16″). Use the decorative end caps to finish the ends of threaded rods. For custom length rods, use a grinding wheel to cut them to the needed size and finish the ends.
The RWF-10-25/SS wall fixings are crafted from robust solid stainless steel alloy to provide exceptional weight support and stability. For wall-mounted applications, we recommend adhering to a safety working load limit of 60 kg (132lbs) per fixing point to ensure optimal security and longevity. The 10mm (3/8″) diameter stainless steel rods can be used with various standard or specialty supports for holding graphic panels, picture frames, acrylic holders, literature displays, acrylic shelves, decorative panels and screens, graphic holders, horizontal rods for fabrics, and various other presentations. This versatility allows for creative and functional solutions in retail environments, exhibitions, office spaces, and other commercial or residential settings where sleek, adaptable display systems are desired.
Attributes
| Load Limits | |
|---|---|
| Compatibility | Use with any 10mm rods for wall or fixture fixings for a variety of applications |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all rod display fittings, internal components, and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.
Colors/Finishes:
Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor and outdoor use. Our stainless steel rod system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 rods that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.
Quality/Warranty:
Rod fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
Installations Instructions
Installing RWF-10-25/SS Wall Fixing is similar to intalling WM11-10 Wall Fixing for Rods ❯ DOWNLOAD THE PDF HERE.
