TOP/CEILING FIXING KIT with 10mm Rod – 0.5M (1′ 7-11/16”) Length

$30.45

Top/Ceiling Fixing Kit with 10mm Rods – Includes RC-10/SS Top Fixing (1 ea) and RD10-0.5M/R 10mm (3/8″) diameter threaded rod with dome end (1 ea). Use for ceiling suspensions or wall projecting installations. Optional Base Supports in 25mm38mm or 50mm diameters are available.

Frequently Bought Together with:

VERTICAL SUPPORT DOUBLE – For panels up to 7mm (1/4") thick. (*Use with 10mm Stainless Rod System)

Ideal for supporting acrylic pockets, signs and graphic panels up to 7mm (1/4") thick from sides. Use with 10mm (3/8") Dia. Rod Suspensions in Stainless Steel Finish.

VERTICAL SUPPORT SINGLE – For panels up to 7mm (1/4") thick. (*Use with 10mm Stainless Rod System)

Ideal for supporting acrylic pockets, signs and graphic panels up to 7mm (1/4") thick from sides. Use with 10mm (3/8") Dia. Rod Suspensions in Stainless Steel Finish.

SUPPORT for Drilled or Slotted Shelf (*Use with 10mm Stainless Rod System)

Use for supporting drilled or slotted acrylic and glass shelves. Located under shelf. Hole Diameter – 12.5mm (1/2″). Use with 10mm (3/8") Dia. Rod Suspensions in Stainless Steel Finish.

Availability: In stock

Product Description

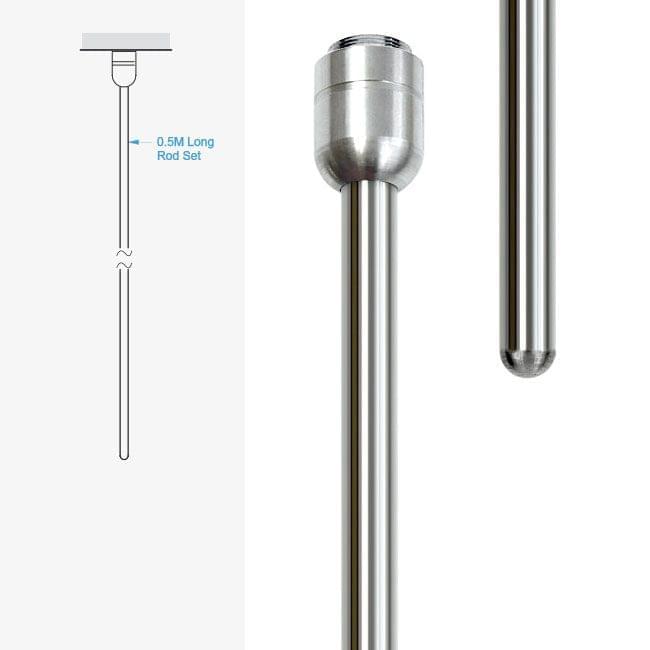

10mm (3/8″) Dia. Rod Suspension Kit with Top/Ceiling Fixing and 0.5M Long Rod w/Dome End (#304 Stainless Steel)

The KRC-10-0.5M stainless steel rod suspension kit includes a ceiling fixing and a threaded rod with dome finished end. The kit is supplied with standard base supports — optional base supports in 25mm, 38mm or 50mm diameter are also available. It is designed for typical ceiling-overhead suspended applications or wall projecting installations. The kit comes with one 0.5M (1′ 7-11/16”) long threaded rod.

The KRC-10-0.5M top/ceiling rod hanging kit features a minimalist ergonomic design and is engineered for flexibility and durability. The top fitting and rod are made of durable solid stainless steel to provide exceptional weight support and stability. When properly secured, the rods can support up to 200 kg (441 lbs) per fixing point (subject to fixing). The 10mm (3/8″) diameter stainless steel rods can be used with various standard or specialty supports for holding graphic panels, hanging overhead signs, acrylic or glass shelves, decorative partition panels, aluminum or wood frames, hanging clothes rails, graphic holders, horizontal rods for fabrics, and various other presentations.

Additionally, the KRC-10-0.5M rod suspension kit is compatible with a range of accessories, such as sign blanks, info/poster acrylic holders, acrylic frames, and acrylic or glass shelves.

Explore All Rod Fixing Kits

Attributes

Top Fixing

Rod Diameter

Rod Length

Load Limits

Compatibility

Weight

Mounting Options

,

Materials

Finish

Allen Wrench Size

Availability


Specifications for RC-10-SS

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all rod display fittings, internal components, and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.

Colors/Finishes:

Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor and outdoor use. Our stainless steel rod system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 rods that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.

Quality/Warranty:

Rod fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.

Installations Instructions

How to Install RC-10/SS Top/Ceiling Fixing for Rods – Screw Fit ❯ DOWNLOAD THE PDF HERE.
