TOP/CEILING ADJUSTABLE FIXING KIT with 10mm Rod – 1.5M (4′ 11-1/16”) Length
Original price was: $72.40.$61.54Current price is: $61.54.
Top/Ceiling Adjustable Fixing Kit with 10mm Rods – Includes KCB-38 38mm Diameter Angle Base Support with Ball-Joint Swivel Coupling (1 ea), PSM-Collar Ring (1 ea), RC-10/SS Top Fixing (1 ea), RD10-1.5M 10mm (3/8″) diameter threaded rod (1 ea), and REC-10/SS decorative end cap (1 ea). Use with sloped ceiling or angled wall suspended applications. Optional Base Support 50mm diameters are available.
Availability: In stock
Product Description

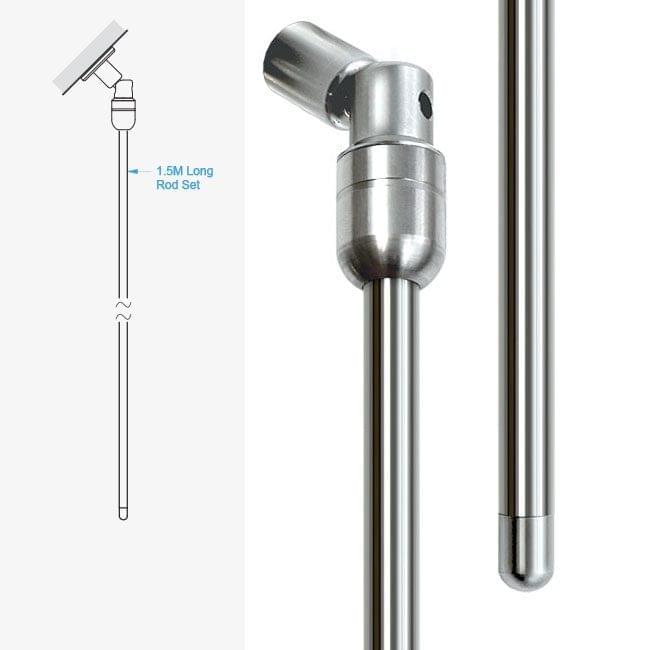

10mm (3/8″) Dia. Rod Suspension Kit with Adjustable Angle Top/Ceiling Fixing, 1.5M Long Rod, and Decorative End Cap (#304 Stainless Steel)
The KRCA-10-1.5M stainless steel rod suspension kit includes a ceiling fixing with ball-joint swivel coupling, a threaded rod, and a decorative end cap for rod. The kit is supplied with a standard 38mm diameter base support for ceiling attachment — optional base support in 50mm diameter are also available. It is designed for angled ceiling-overhead or tailored suspended applications, such as installations suspended from sloped ceilings (cathedral or vaulted ceilings). The kit comes with one 1.5M (4′ 11-1/16″) long threaded rod, which can be cut to size on-site during installation. For projects requiring longer lengths, additional rods can be purchased separately.
The KRCA-10-1.5M adjustable angle top/ceiling rod hanging kit features a minimalist ergonomic design and is engineered for flexibility and durability. The top fitting, swivel base, and rod are made of durable solid stainless steel to provide exceptional weight support and stability. When properly secured, the rods can support up to 200 kg (441 lbs) per fixing point (subject to fixing). The 10mm (3/8″) diameter stainless steel rods can be used with various standard or specialty supports for holding graphic panels, hanging overhead signs, acrylic or glass shelves, decorative partition panels, aluminum or wood frames, hanging clothes rails, graphic holders, horizontal rods for fabrics, and various other presentations.
Additionally, the KRCA-10-1.5M rod suspension kit is compatible with a range of accessories, such as sign blanks, info/poster acrylic holders, acrylic frames, and acrylic or glass shelves.
Attributes
| Top Fixing | |
|---|---|
| Rod Diameter | |
| Rod Length | |
| Load Limits | |
| Compatibility | |
| Weight | |
| Mounting Options | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all rod display fittings, internal components, and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.
Colors/Finishes:
Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor and outdoor use. Our stainless steel rod system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 rods that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.
Quality/Warranty:
Rod fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
Installations Instructions
How to Install RC-10/SS Top/Ceiling Fixing for Rods – Screw Fit ❯ DOWNLOAD THE PDF HERE.
