CEILING-TO-FLOOR ROD FIXING KIT with 10mm Rods – 3M (9’ 10”) Length
Original price was: $101.60.$86.36Current price is: $86.36.
Ceiling-to-Floor Fixing Kit with 10mm Rods – Includes RCF-10/SS Top/Bottom Fixings with Spring Tensioner (1 ea) and RD10-1.5M 10mm (3/8″) diameter threaded rods (2 ea). Use with ceiling-to-floor suspended application — Join to 3M (9’ 10”) total height and cut to size on-site during installation. Use with Optional Base Supports in 25mm, 38mm or 50mm diameters.
Availability: In stock
Product Description
10mm (3/8″) Dia. Rod Suspension Kit with Ceiling-to-Floor Fixings and two 1.5M Long Rods (#304 Stainless Steel) — 3M (9’ 10”) Total Length

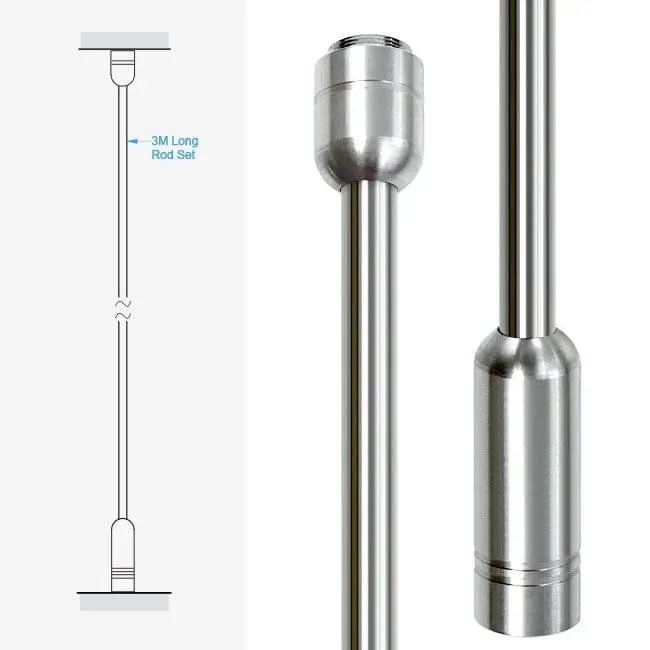

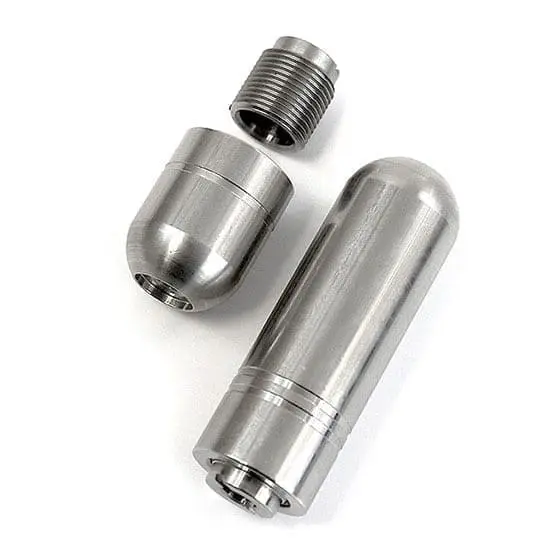

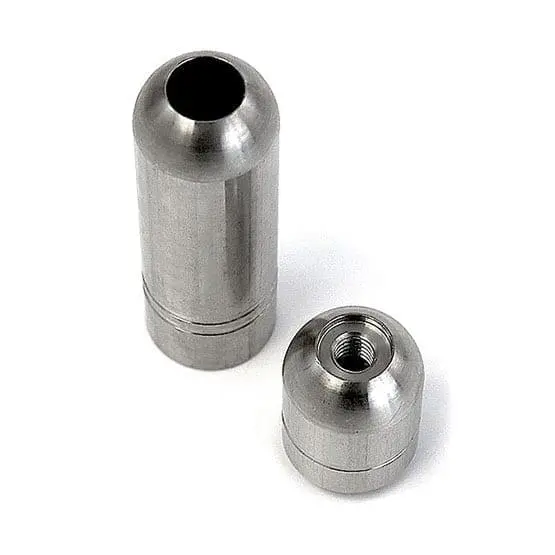

The KRCF-10-3M stainless steel rod suspension kit includes a ceiling fixing, a bottom/floor adjustable tensioner fixing, and two rods. The kit is supplied with standard base supports — optional base supports in 25mm, 38mm or 50mm diameter are also available. It is designed for typical ceiling-to-floor or tailored suspended applications, such as installations inside window frames, glass cabinets, and rails or tracks. The kit comes with two 1.5M (4′ 11-1/16″) long threaded rods, which can be joined to create a 3M (9′ 10″) total height and cut to size on-site during installation. Once screwed together, the rods appear continuous. For projects requiring longer lengths, additional rods can be purchased separately.
The KRCF-10-3M ceiling-to-floor rod hanging kit features a minimalist ergonomic design and is engineered for flexibility and durability. The top/bottom fittings and rods are made of durable solid stainless steel to provide exceptional weight support and stability. When properly secured, the rods can support up to 200 kg (441 lbs) per fixing point (subject to fixing). The 10mm (3/8″) diameter stainless steel rods can be used with various standard or specialty supports for holding graphic panels, acrylic or glass shelves, decorative partition panels, display showcases, aluminum or wood frames, hanging clothes rails, graphic holders, horizontal rods for fabrics, wine bottles, and various other presentations.
The KRCF-10-3M rod suspension kit can also be used with aluminum rails/tracks to enhance display flexibility and simplify installation. By using toggles affixed to the rod anchor, users can adjust the rods and move them sideways. Tracks are available in lengths of 4, 6, or 8 feet, with custom sizes or continuous runs available upon request. For installation, rail or track systems must be securely mounted to a solid structure or blocking, which includes attaching tracks to ceiling struts, structures above the ceiling line, or wall studs.
Additionally, the KRCF-10-3M rod suspension kit is compatible with a range of accessories, such as info/poster acrylic holders, acrylic frames, backlit displays, brochure and literature acrylic holders, magazine and book acrylic holders, acrylic showcases, flat glass shelves, and sloped acrylic shelves.
Attributes
| Top Fixing | |
|---|---|
| Bottom Fixing Tensioner | |
| Rod Diameter | |
| Rod Length | |
| Load Limits | |
| Compatibility | Use with any 10mm threaded rods for top/ceiling to floor fixings for a variety of applications |
| Weight | |
| Mounting Options | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all rod display fittings, internal components, and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.
Colors/Finishes:
Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor and outdoor use. Our stainless steel rod system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 rods that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.
Quality/Warranty:
Rod fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
Installations Instructions
How to Install RCF-10/SS Top/Ceiling & Bottom Fixing Kit for Rods ❯ DOWNLOAD THE PDF HERE.
