CEILING-TO-FLOOR ADJUSTABLE ROD FIXING KIT with 10mm Rods – 4.5M (14’ 9”) Length

Original price was: $161.00.Current price is: $136.85.

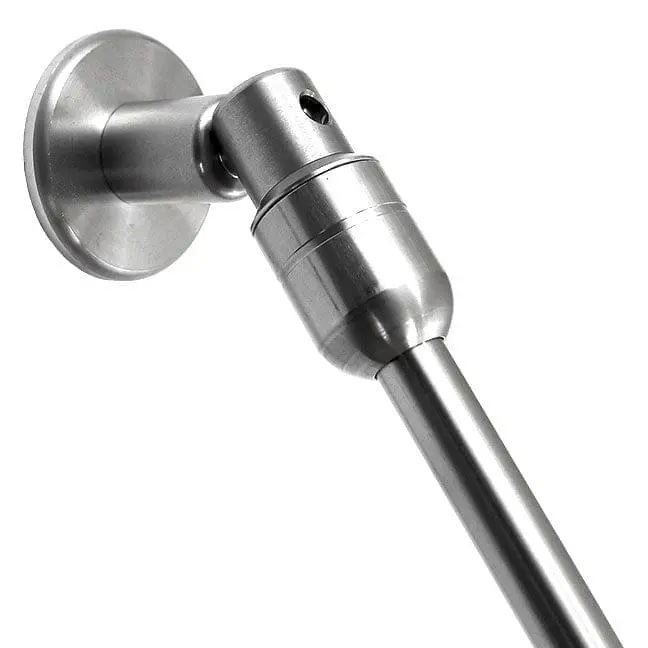

Ceiling-to-Floor Adjustable Fixing Kit with 10mm Rods – Includes KCB-38 38mm Diameter Angle Base Support with Ball-Joint Swivel Coupling for Ceiling (1 ea), PSM-Collar Ring (1 ea), RCF-10/SS Top/Bottom Fixings with Spring Tensioner (1 ea), and RD10-1.5M 10mm (3/8″) diameter threaded rods (3 ea). Use with sloped ceiling-to-floor suspended applications — Join to 4.5M (14’ 9”) total height and cut to size on-site during installation. Use with Optional Base Support in 50mm diameter.

Frequently Bought Together with:

VERTICAL SUPPORT DOUBLE – For panels up to 7mm (1/4") thick. (*Use with 10mm Stainless Rod System)

Ideal for supporting acrylic pockets, signs and graphic panels up to 7mm (1/4") thick from sides. Use with 10mm (3/8") Dia. Rod Suspensions in Stainless Steel Finish.

VERTICAL SUPPORT SINGLE – For panels up to 7mm (1/4") thick. (*Use with 10mm Stainless Rod System)

Ideal for supporting acrylic pockets, signs and graphic panels up to 7mm (1/4") thick from sides. Use with 10mm (3/8") Dia. Rod Suspensions in Stainless Steel Finish.

Availability: In stock

Product Description

10mm (3/8″) Dia. Rod Suspension Kit with Ceiling-to-Floor Adjustable Fixing and three 1.5M Long Rods (#304 Stainless Steel) — 4.5M (14’ 9”) Total Length

The KRAT-10-4.5M stainless steel rod suspension kit includes a ceiling fixing with ball-joint swivel coupling, a bottom/floor adjustable tensioner fixing with spring, and three rods. The kit is supplied with a standard 38mm diameter base support for ceiling attachment — optional base support in 50mm diameter are also available. It is designed for angled ceiling-to-floor, wall-to-floor, or tailored suspended applications, such as installations suspended from sloped ceilings (cathedral or vaulted ceilings). The kit comes with three 1.5M (4′ 11-1/16″) long threaded rods, which can be joined to create a 4.5M (14’ 9”) total height and cut to size on-site during installation. Once screwed together, the rods appear continuous. For projects requiring longer lengths, additional rods can be purchased separately.

The KRAT-10-4.5M angled ceiling-to-floor rod hanging kit features a minimalist ergonomic design and is engineered for flexibility and durability. The top/bottom fittings and rods are made of durable solid stainless steel to provide exceptional weight support and stability. When properly secured, the rods can support up to 200 kg (441 lbs) per fixing point (subject to fixing). The 10mm (3/8″) diameter stainless steel rods can be used with various standard or specialty supports for holding graphic panels, acrylic or glass shelves, decorative partition panels, display showcases, aluminum or wood frames, hanging clothes rails, graphic holders, horizontal rods for fabrics, wine bottles, and various other presentations.

The KRAT-10-4.5M rod suspension kit can also be used with aluminum rails/tracks to enhance display flexibility and simplify installation. By using toggles affixed to the rod anchor, users can adjust the rods and move them sideways. Tracks are available in lengths of 4, 6, or 8 feet, with custom sizes or continuous runs available upon request. For installation, rail or track systems must be securely mounted to a solid structure or blocking, which includes attaching tracks to ceiling struts, structures above the ceiling line, or wall studs.

Additionally, the KRAT-10-4.5M rod suspension kit is compatible with a range of accessories, such as info/poster acrylic holders, acrylic frames, backlit displays, brochure and literature acrylic holders, magazine and book acrylic holders, acrylic showcases, flat glass shelves, and sloped acrylic shelves.

Explore All Rod Fixing Kits

Attributes

Top Fixing

Bottom Fixing Tensioner

Rod Diameter

Rod Length

Load Limits

Compatibility

Weight

Mounting Options

,

Materials

Finish

Allen Wrench Size

,

Availability


Specifications for RCF-10-SS

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all rod display fittings, internal components, and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.

Colors/Finishes:

Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor and outdoor use. Our stainless steel rod system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 rods that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.

Quality/Warranty:

Rod fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.

Installations Instructions

How to Install RCF-10/SS Top/Ceiling & Bottom Fixing Kit for Rods ❯ DOWNLOAD THE PDF HERE.
