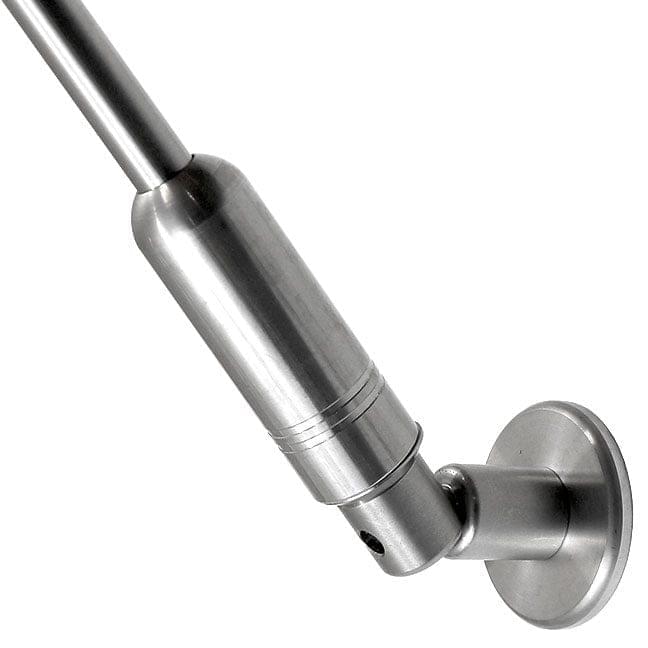

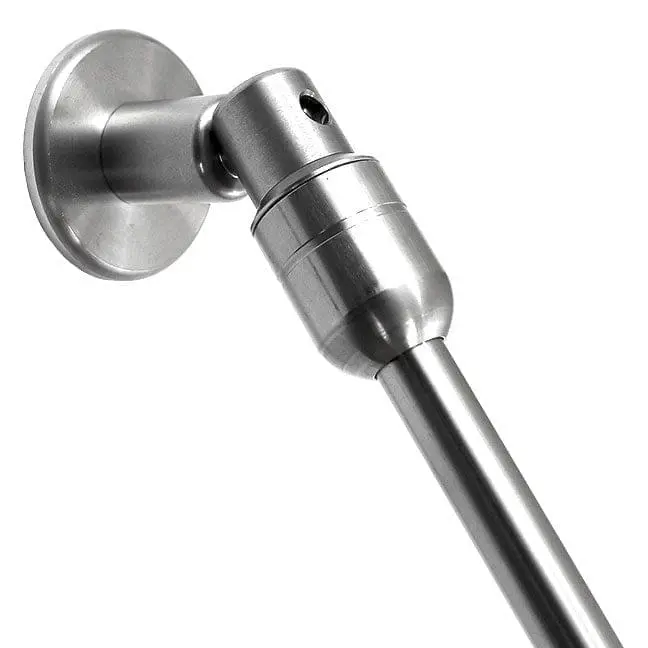

38mm (1-1/2″) Dia. Base Support with Ball-Joint Swivel Coupling for Rods *Stainless Steel*
Original price was: $23.85.$20.27Current price is: $20.27.
Availability: In stock
Product Description
Top/Bottom Base Support with Ball-Joint Swivel Coupling for Rod Systems – 38mm (1-1/2″) Diameter Base (*Stainless Steel)
Optional Base Support with Adjustable Angle Coupling for use with 10mm diameter rod ceiling/floor fixings (RC-10/SS and RCF-10/SS). *Use with rod fixings in stainless steel finish only.
Attributes
| Top Fixing | |
|---|---|
| Load Limits | |
| Compatibility | Use with 10mm (3/8") Dia. Stainless Steel Rods to Suspend Acrylic Pockets, Signs or Graphic Panels. |
| Weight | |
| Mounting Options | |
| Materials | |
| Finish | |
| Availability |

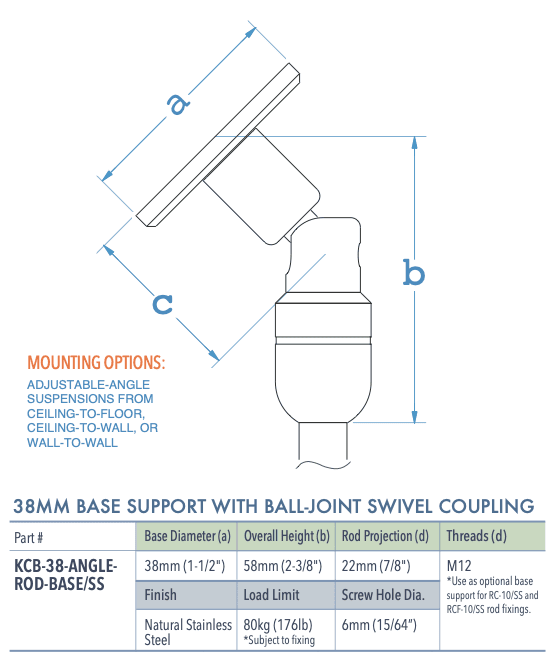

DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all cable display fittings and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.
Colors and Finishes:
Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor and outdoor use. Our stainless steel cable system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.
Quality/Warranty:
Cable fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
