VS45-1 HORIZONTAL EXTRUSION + CONNECTORS
$70.33 – $113.95
24″ long aluminum extrusion for modular stand assembly
*Aluminum Modular Extrusions/Profiles & Accessories are Made-to-Order Only (punched, drilled, machined, cut, etc.) – Both standard and custom size profiles are cut to specified lengths when we process the order. All sales are final, no returns, no exchanges. Please read our WebStore “Terms & Conditions Policy“.
Product Description
Aluminum Profile / Horizontal Extrusion with Connectors

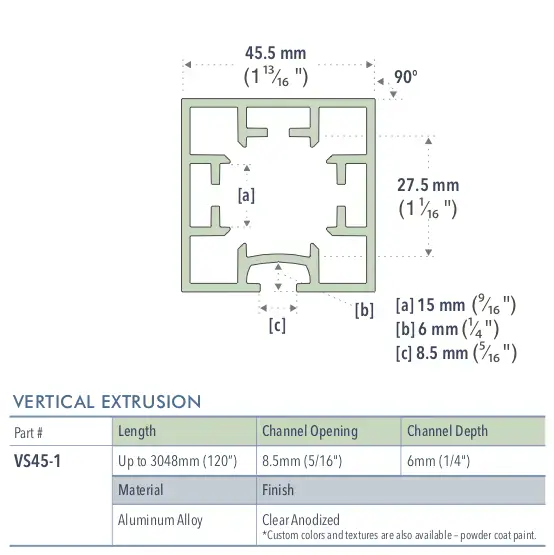

45.5mm (1-13/16″) x 45.5mm (1-13/16″) Section with Channel Opening on one side. Supplied with two CBX44 Connectors.
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Profile Length | |
|---|---|
| Profile Section | |
| Connectors | Supplied with CBX44 Connectors (ref. 320 44) and M10 screws on each end. |
| Extrusion Compatibility | Use with any Vertical Extrusion with 8.5mm (5/16") channel opening and 6mm (1/4") depth |
| Insert Compatibility | |
| Accessory Compatibility | |
| Weight | |
| Mounting Options | |
| Materials | |
| Finish | |
| Allen Wrenches | |
| Availabilty | |
| Profile Type |
Composition and Materials:
All aluminum profiles and most interlocking components are manufactured of high-grade aluminum alloy by method of cold extrusion. They have a high strength, close tolerance and a sturdy surface finish.
Colors/Finishes:
Standard finish is clear satin anodized. Color powder coating is also available at request.
Product Limitations
Aluminum extrusions and components are suggested for both interior and exterior use. Aluminum components are characterized by their lightness, strength, corrosion resistance, and high durability leading to a wide range of product forms and extensive use in engineering applications. However, despite its high durability and corrosion resistance, some simple steps should be employed when handling and cleaning aluminum to avoid staining and damage. To protect against damage to the surface of aluminum, avoid scraping against hard or sharp surfaces, do not drag or throw components on their surfaces, and use soft slings when lifting heavy components. Clean regularly to remove any build up or dirt. If left for an extended period of time, grime may cause staining. Clean with plain water with mild soap/detergent or non-etching chemical cleaner.
Quality/Warranty:
Aluminum profiles and interlocking components have a 12 month warranty. This warranty does not cover damage due to external causes, including accident, abuse, misuse, failure to follow installation requirements and problems caused by use of parts and components not supplied by Nova Display Systems.
