SUPPORT DOUBLE FOR 6mm ROD. (Use with 3mm Cables)
$15.84
Use with 3mm Cable Hanging System to support hook-on acrylic holders, fabrics, banners or signs on horizontal rods.
Out of stock
Product Description

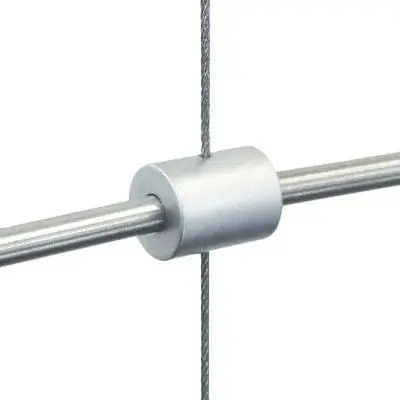

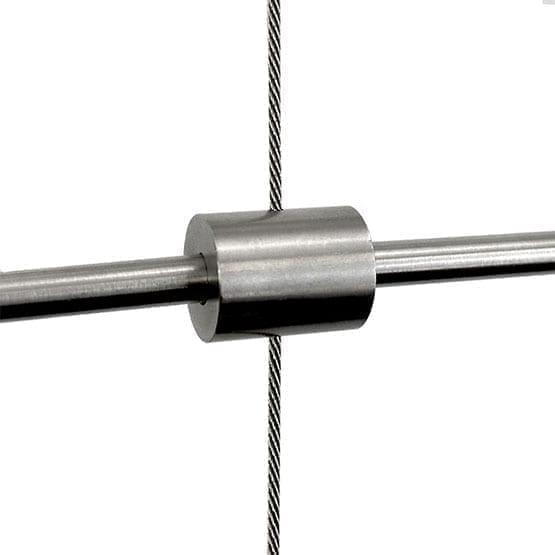

Cable Support for 6mm Rod Double-Sided — Support for Horizontal Rod
The CS06-3 cable rod support features a 16mm (5/8″) diameter round profile fitting, designed for holding a 6mm (1/4″) rod horizontally between two cables. This high-quality double-sided rod support is made of solid brass and is compatible with our 3mm cable display system / hanging hardware kits.
The horizontal rods suspended on cables are suitable for a wide range of applications. They are versatile and can be used for displaying art, craft, fabrics, flags, banners, or hanging photos and information. Attaching the rods to cables is easily accomplished by inserting the rods into the cable support fitting and securing them with the set screw. The entire assembly is then attached to cables and securely locked into the desired position with set screws and the supplied hex key. Use the double-sided rod supports to link together adjoining horizontal rods that share a single cable.
Key Features:
• Double-sided rod supports are recommended for use with non-threaded rods in lengths of 0.5m (1′ 7-11/16”) and 1.0m (3′ 3-3/8”).
• Use the 6mm horizontal rods with lightweight items only (to display heavier merchandise, use 10mm rods or hanging rails)
• Ideal for hanging fabrics, banners, acrylic photo holders, acrylic info/poster holders, etc.
• Made of solid brass alloy with a satin chrome finish
• Compatible with 3mm (1/8″) diameter cable suspension system
Explore All Mounting Options ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Load Limits | |
|---|---|
| Compatibility | |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |

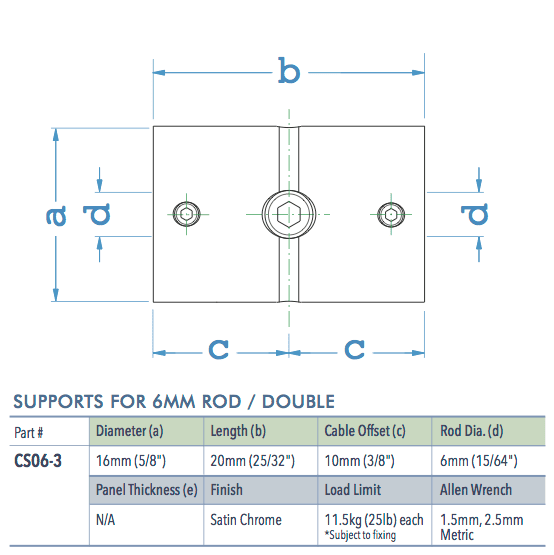

DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all cable display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors and Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Cable fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components
Installations Instructions
How to Install CS06-3 Support Double-Sided for Rod ❯ DOWNLOAD THE PDF HERE.
