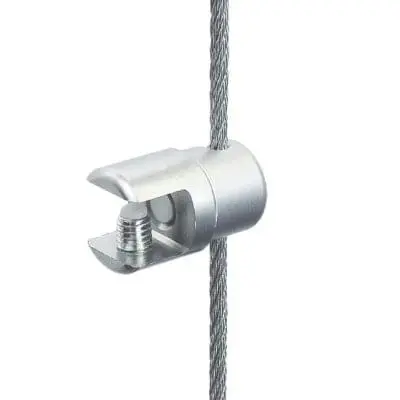

MULTI-POSITION SUPPORT SINGLE – For panels/shelves up to 7mm (1/4″) thick. (Use with 3mm Cables)
Original price was: $9.10.$8.19Current price is: $8.19.
Use for supporting glass shelves, sloped acrylic shelves or angled presentations. For panels/shelves up to 7mm (1/4″) thick. Adjustable to any angle. Can be locked into position. Use with 3mm (1/8″) Dia. Cables Suspensions.
Availability: In stock
Product Description
Cable Support with Pivoting/Adjustable Angle — Multi-Position Panel/Shelf Clamp Support Single-Sided

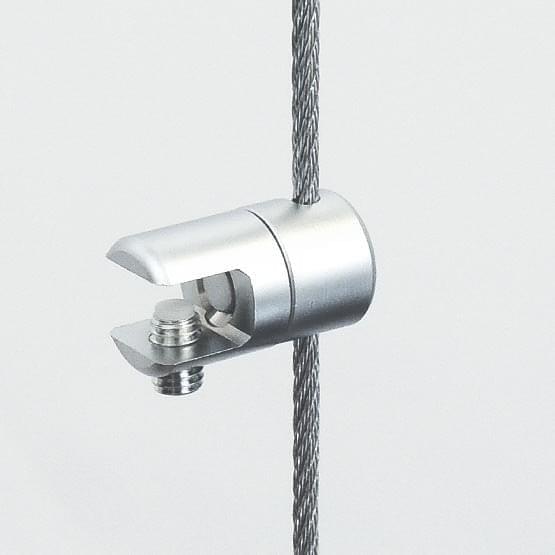

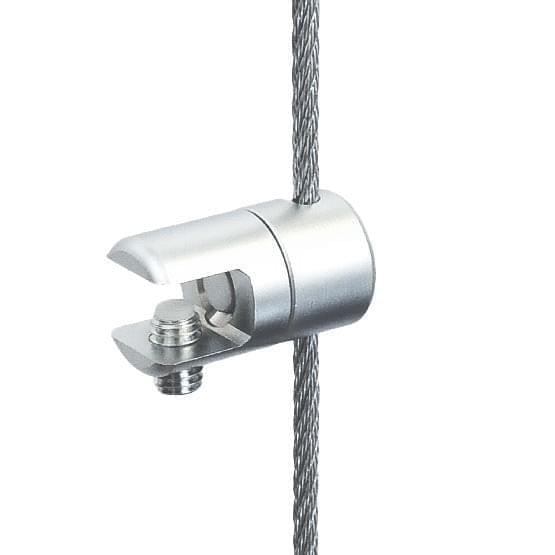

The CG11-3 cable multi-position panel/shelf support features a 16mm (5/8″) diameter round profile fitting, designed for creating suspended angled presentations using panels and shelves up to 7mm (1/4″) thick. This high-quality single-sided panel/shelf support is made of solid brass and is compatible with our 3mm cable display system / hanging hardware kits.

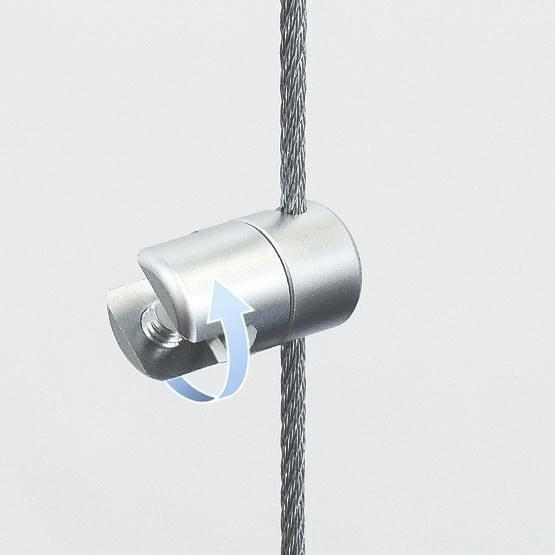

The pivoting angle side clamps are ideal for supporting lightweight acrylic shelves, tempered glass shelves, sloped acrylic shelves, reclined literature holders, and other custom suspended fixtures. Attaching the clamp supports to panels and shelves is easily accomplished by affixing them to edges using the specially designed nylon-tipped grub screw. The entire assembly is then attached to suspended cables and securely locked into the desired position with set screws using the supplied hex key. The supports swivel to any angle and are locked in place by a set screw.
Key Features:
• Single-sided multi-position clamp support for non-drilled panels and shelves
• Recommended use of at least four clamp supports per panel/shelf
• Made of solid brass alloy with satin chrome finish
• Clamp supports grip onto panels or shelves up to 7mm (1/4″) thickness
• Recommended Safety Load Limit per Fitting: 12kg (25lb)
• Nylon-tipped grub screws securely fasten the panels/shelves and protect surfaces from damage
• Works with a wide range of materials, such as acrylic, tempered glass, plywood, aluminum composite, etc.
• Compatible with 3mm diameter cable suspension system
Explore All Mounting Options ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

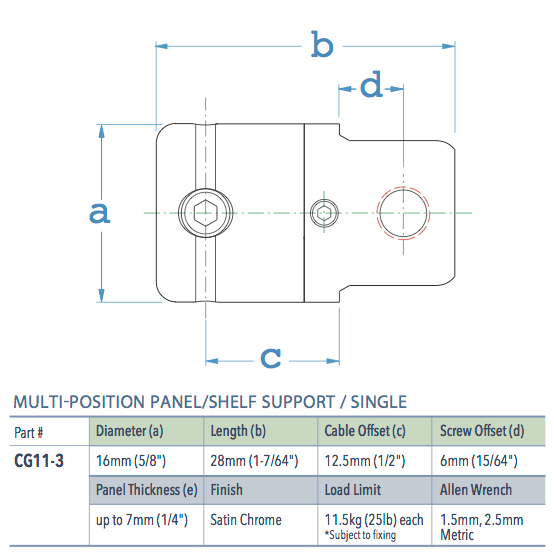

Attributes
| Load Limits | |
|---|---|
| Compatibility | Use with 3mm (1/8") Dia. Cables to Suspend Shelves, Graphic Panels, or Angled Presentations |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all cable display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors and Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Cable fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components
Installations Instructions
How to Install CG11-3 Multi-Position Support Single-Sided ❯ DOWNLOAD THE PDF HERE.
