Product Description

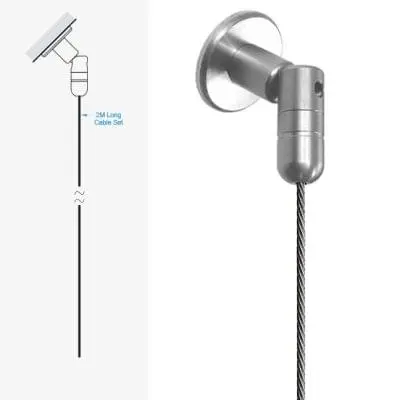

3mm (1/8″) Dia. Cable Suspension Kit with Ceiling Fixing – 2.0M (6′ 5-3/4″) Long

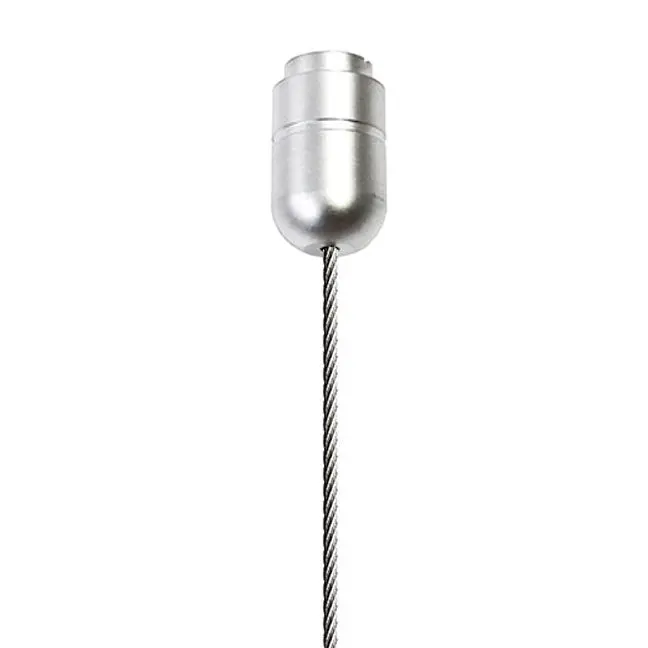

The C300-2M cable suspension/wire hanging kit includes a factory top-crimped cable and a ceiling fixing. The kit is supplied with standard base supports — optional base supports in 25mm, 38mm or 50mm diameter are also available. It is primarily designed for typical ceiling-overhead suspended applications. The kit comes with cables available in 2 meters (6′ 5-3/4″), which can be conveniently adjusted or trimmed on-site during installation. For projects requiring longer lengths, we also offer replacement cables or kits with extended cable options of up to 10 meters (32′ 8″) or more upon request.
The C300-2M cable suspension/wire hanging kit features a minimalist ergonomic design and is engineered for flexibility and durability. The cables, crafted from robust galvanized steel, are designed to resist fraying, kinking, and snapping. Each cable consists of 49 steel strands encasing a single steel wire core, resulting in a strong yet flexible assembly with excellent abrasion resistance, capable of supporting up to 200 kg (441 lbs). The 3mm (1/8″) diameter cable can be utilized with a variety of standard, multi-position, or specialty supports for holding graphic panels, hanging overhead signs, acrylic or glass shelves, decorative partition panels, aluminum or wood frames, hanging clothes rails, graphic holders, horizontal rods for fabrics, and various other presentations.
Additionally, the C300-2M cable suspension/wire hanging kit is compatible with a range of accessories, such as sign blanks, info/poster acrylic holders, acrylic frames, and acrylic or glass shelves.
Explore All Cable Fixing Kits ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Cable Length | |
|---|---|
| Top Fixing | |
| Load Limits | |
| Compatibility | Use with 3mm (1/8") Dia. Cables to Suspend Shelves, Graphic Panels, or Angled Presentations |
| Weight | |
| Mounting Options | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |

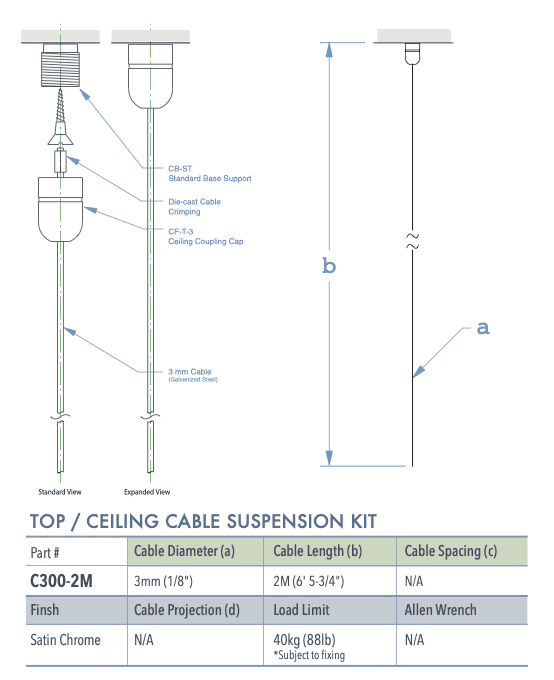

DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
Cables used in assemblies are made from stainless steel and are resistant to fraying, kinking or snapping. Cables have a 7 × 7 configuration: seven individual wires twisted into seven different layers/rows to make a total construction composed of 49 wires. This creates a durable construction with high flexibility and abrasion resistance. Cable fixings and internal components are made from #SS303 stainless steel alloy. Cables are provided with spring tensioners—cable will not slacken with temperature changes; easily adjusted without tools. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.
Colors and Finishes:
Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor and outdoor use. Our stainless steel cable system performs well in both closed and open environments as long as it is not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Cables are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
Installations Instructions
How to Install the 3mm (1/8″) DIA. CABLE w/Ceiling Fixing ❯ DOWNLOAD THE PDF HERE.
