SUPPORT SINGLE for P07/SS Boss (*Use with 1.5mm Stainless Cables)
Original price was: $4.20.$3.36Current price is: $3.36.
Use with 1.5mm Cable Hanging System in stainless steel finish to support wood panels and shelves, display cases, or clothing/hanging rails.
Availability: In stock
Product Description
Cable Support for P07/SS Boss Single-Sided — Wood Panel/Shelf Support (#304 Stainless Steel)

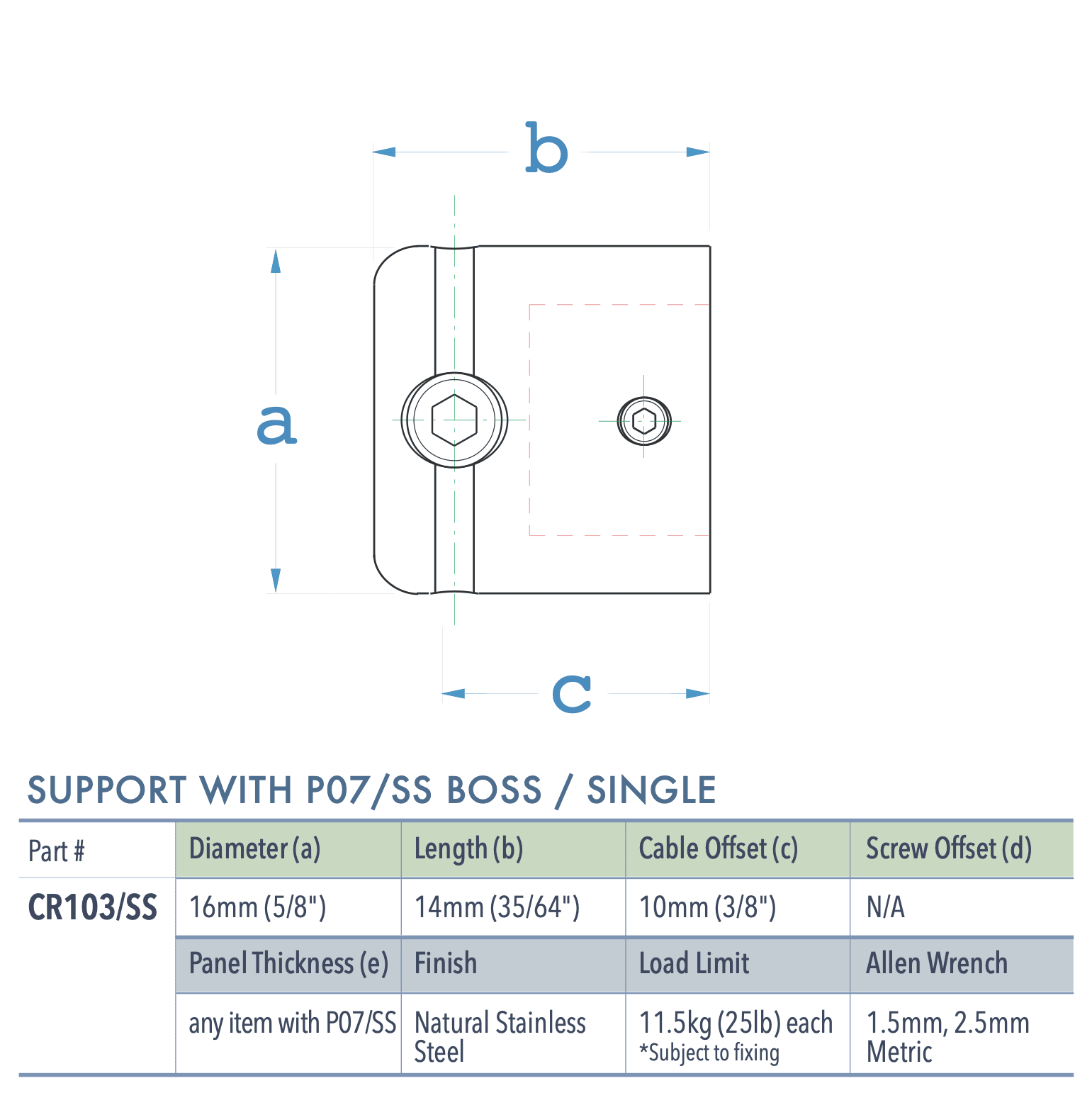

The CR103/SS cable boss support features a 16mm (5/8″) diameter round profile fitting, designed for suspending wood panels, shelves, or any item fitted with a boss and screw (ref. P07/SS). This high-quality single-sided panel/shelf support is made of solid stainless steel and is compatible with our 1.5mm stainless steel cable display system / hanging hardware kits.
The boss supports are excellent for hanging wooden panels, shelves, display cases, cabinets, and other custom suspended wood or metal fixtures. Attaching the boss supports to suspended panels or shelves is easily accomplished by affixing them to the edges of the panels or shelves with the P07/SS boss and a #10 screw or bolt. The entire assembly is then attached to cables and securely locked into the desired position with set screws and the supplied hex key.
Key Features:
• Single-sided boss support for wooden panels and shelves
• Ideal for hanging thick panels, shelves, or display cases
• Use at least four boss supports per panel/shelf (longer shelves may require multiple supports fixed to the front and back of the shelf)
• Made of stainless steel alloy with natural brushed stainless finish
• Boss supports are recommended for panels or shelves that are over 20mm (3/4″) in thickness
• Recommended safety load limit per fitting: 12kg (25lb)
• Works with a wide range of materials, such as wood, plywood, metal, aluminum composite, etc.
• Compatible with 1.5mm (1/16″) diameter stainless steel cable suspension system
Attributes
| Load Limits | |
|---|---|
| Compatibility | |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all cable display fittings and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.
Colors and Finishes:
Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor and outdoor use. Our stainless steel cable system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.
Quality/Warranty:
Cable fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
