TOP PANEL SUPPORT – For panels up to 10mm (3/8″) thick (*Use with 1.5mm Stainless Cables)

Original price was: $7.80.Current price is: $7.02.

Ideal for supporting overhead signs and graphic panels from top. For panels up to 10mm (3/8″) thick. Use with 1.5mm (1/16″) Diameter Cable Suspensions in Stainless Steel Finish.

Frequently Bought Together with:

1.5mm Cable Suspension Kit with Ceiling Fixing – 2.0M (6' 5-3/4") Long (*Stainless Steel)

Cable Suspension Kit includes: Cable and Top Fixing w/Standard Base Support in Stainless Steel Finish. Use with Optional Base Supports in 25mm, 38mm or 50mm diameters.

Availability: In stock

Product Description

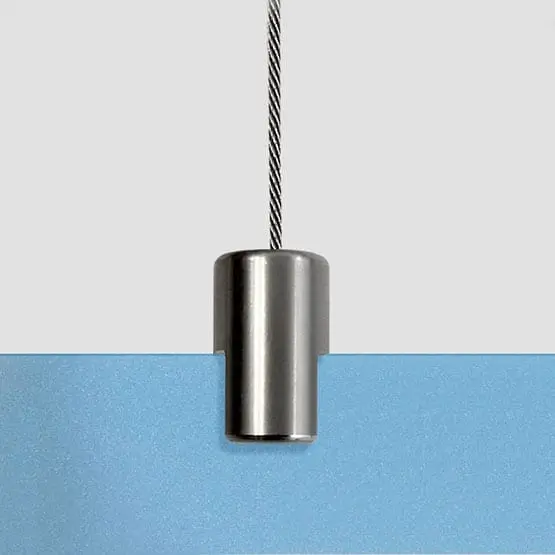

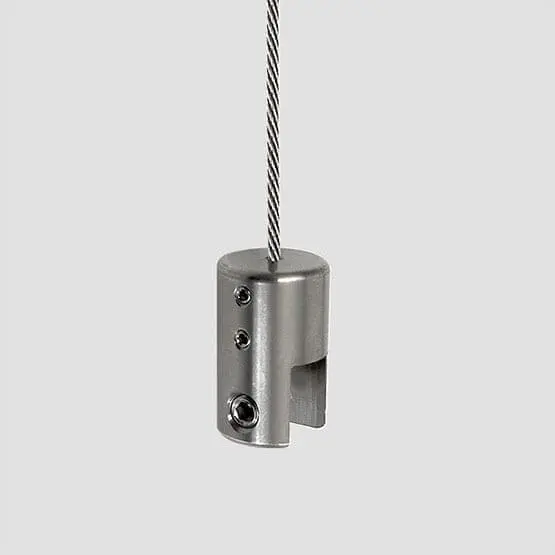

Cable Panel Grip-Support — Top Clamp Support for Overhead Panels (#304 Stainless Steel)

The CP107/SS cable top clamp support features a 18mm (11/16″) diameter round profile fitting, designed for suspending small to medium-sized overhead sign panels up to 10mm (3/8″) thick. This high-quality panel display clamp is made of solid stainless steel and is compatible with our 1.5mm stainless steel cable display system / hanging hardware kits.

The top clamps are great for supporting acrylic holdersacrylic frames, menu boards, decorative screens, partition walls, privacy screens, dividers, acoustic wall panels, window displays, sign blanks, and graphic panels from the top. Attaching the clamp supports to panels is easily done by affixing them to substrate top with the specially designed nylon-tipped grub screw. The entire assembly is then attached to suspended cables and securely locked into the desired position with the set screws and supplied hex key.

Key Features:
• Top-grip clamp support for non-drilled panels
• Use at least two clamp supports per panel (wider panels may require additional supports)
• Made of stainless steel alloy with natural brushed stainless finish
• Top clamp supports grip onto panels up to 10mm (3/8″) thickness
• Recommended Safety Load Limits per Fitting: 12kg (25lb)
• Nylon-tipped grub screws securely fasten the panels and protect the surfaces from damage
• Works with a wide range of materials, such as acrylic, PVC, foam-core, wood, etc.
• Compatible with 1.5mm (1/16″) diameter stainless steel cable suspension system

Explore All Mounting Options

Attributes

Load Limits

Compatibility

Weight

Dimensions

Mounting Options

Material Thickness

Materials

Finish

Allen Wrench Size

Availability

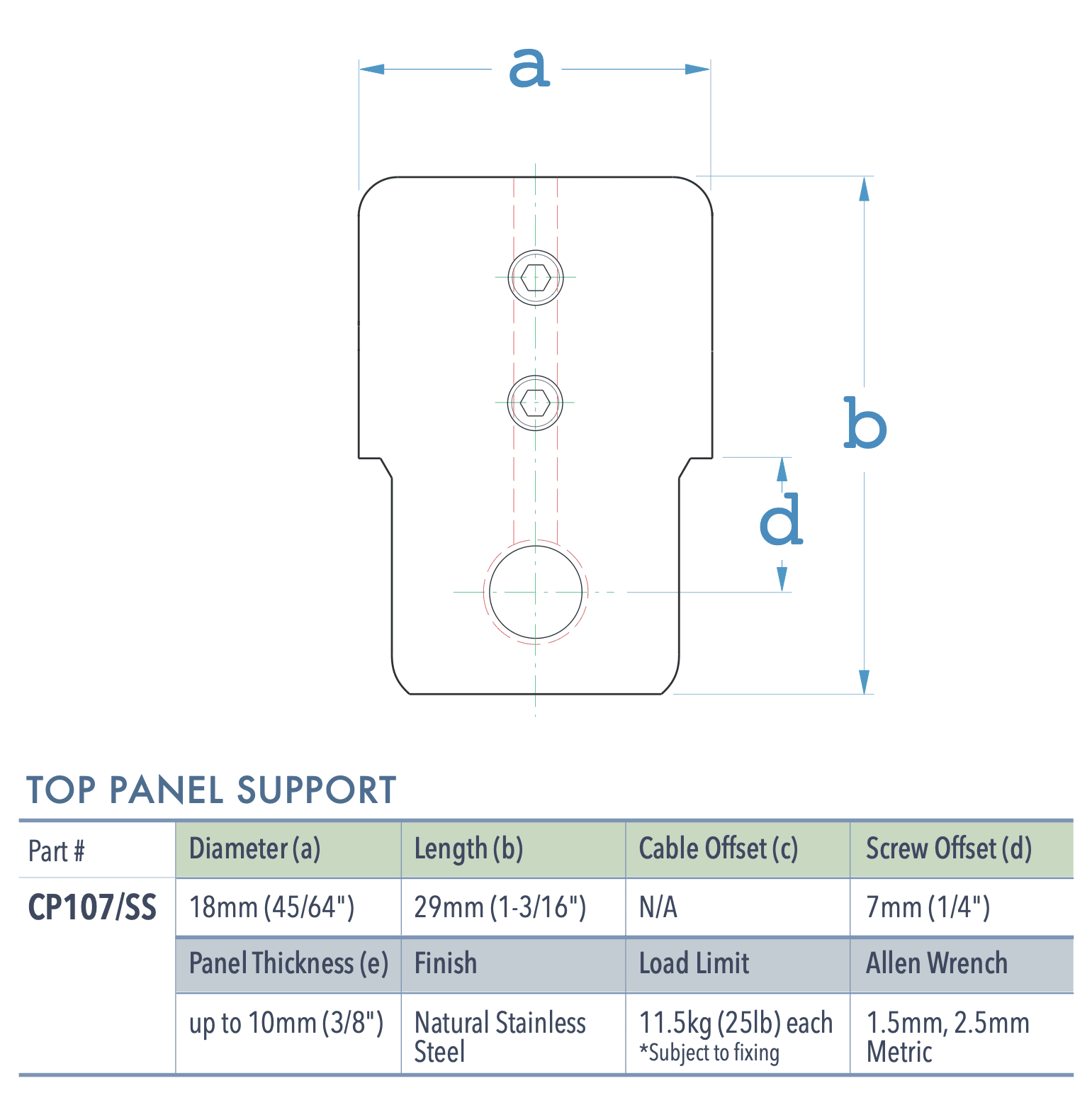

Specifications for CP107-SS

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all cable display fittings and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.

Colors and Finishes:

Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor and outdoor use. Our stainless steel cable system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.

Quality/Warranty:

Cable fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
