SHELF SUPPORT SINGLE – For shelves up to 10mm (3/8″) thick (*Use with 1.5mm Stainless Cables)
Original price was: $6.80.$6.12Current price is: $6.12.
Use with 1.5mm Stainless Steel Cable Hanging System to support acrylic and glass shelves up to 10mm (3/8″) thick.
Availability: In stock
Product Description
Cable Shelf Support Single-Sided — Horizontal Grip-Support (#304 Stainless Steel)

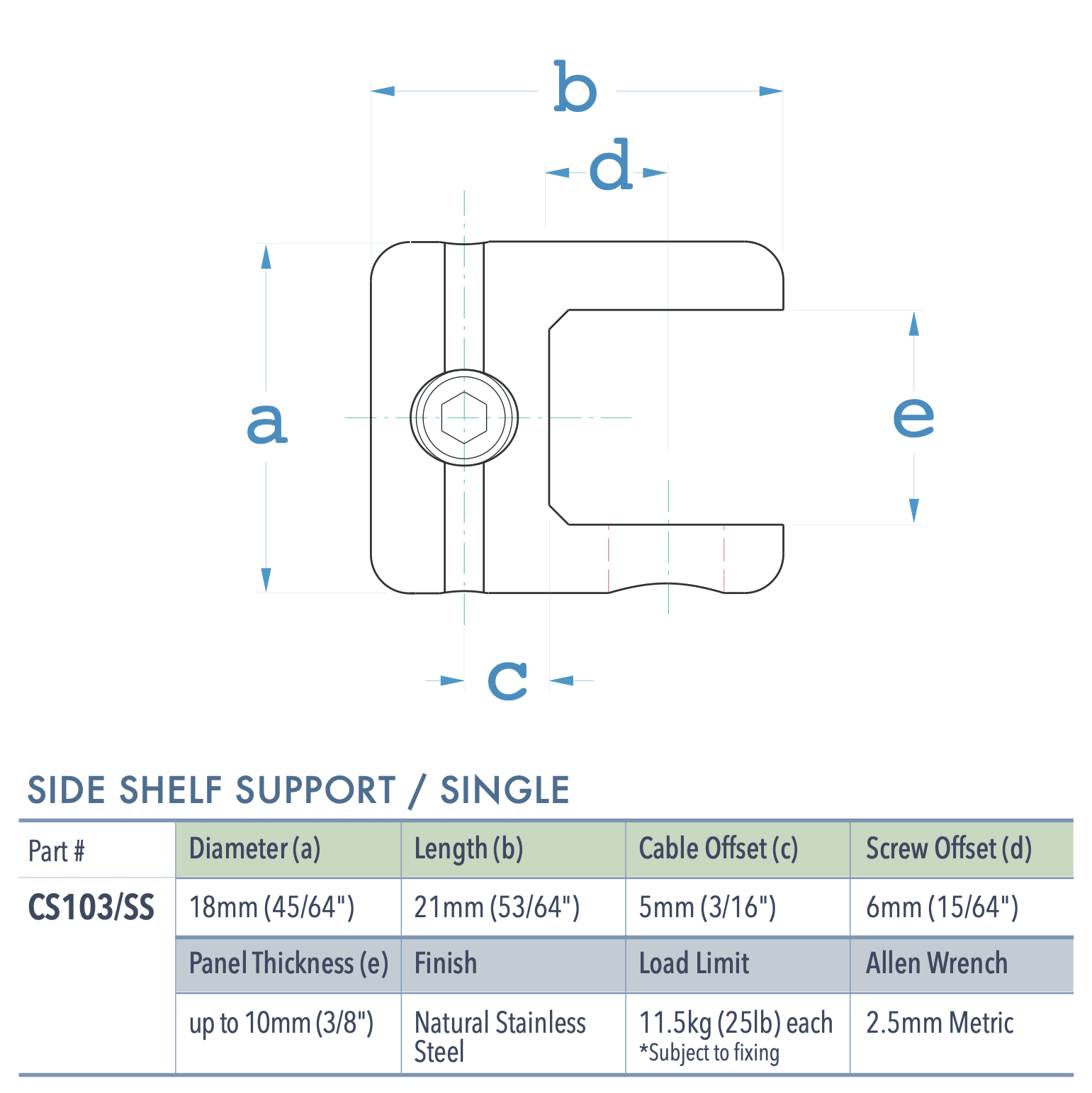

The CS103/SS cable shelf clamp support features a 18mm (45/64″) diameter round profile fitting, designed for suspending acrylic or glass shelves up to 10mm (3/8″) thick. This high-quality single-sided shelf support is made of solid stainless steel and is compatible with our 1.5mm stainless steel cable display system / hanging hardware kits.
The side clamps are great for supporting lightweight acrylic shelves, flat tempered glass shelves, and other custom suspended acrylic fixtures. Attaching the clamp supports to suspended shelves is easily done by affixing them onto the shelf edge with the specially designed nylon-tipped grub screw. The entire assembly is then attached to cables and securely locked into the desired position with the set screws and supplied hex key.
Key Features:
• Single-sided shelf-grip clamp support for non-drilled shelves
• Use at least four clamp supports per shelf (longer shelves may require multiple supports fixed to front and back of the shelf)
• Made of stainless steel alloy with natural brushed stainless finish
• Clamp supports grip onto shelves up to 10mm (3/8″) thickness
• Recommended Safety Load Limits per Fitting: 12kg (25lb)
• Nylon-tipped grub screws securely fasten the shelves and protect the surfaces from damage
• Works with a wide range of materials, such as acrylic, tempered glass, plywood, aluminum composite, etc.
• Compatible with 1.5mm (1/16″) diameter stainless steel cable suspension system
Attributes
| Load Limits | |
|---|---|
| Compatibility | Use with 1.5mm (1/16") Dia. Cables in Stainless Steel Finish to Suspend Acrylic and Glass Shelves. |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all cable display fittings and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.
Colors and Finishes:
Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor and outdoor use. Our stainless steel cable system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.
Quality/Warranty:
Cable fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
