-15%

38mm (1-1/2″) Dia. Base Support with Ball-Joint Swivel Coupling for Cables *Stainless Steel*

Original price was: $20.10.Current price is: $17.09.

Optional Top/Bottom Base Support with Adjustable Angle Coupling for use with 1.5mm and 3mm diameter cable suspension sets (C100-2M/SS, C101-4M/SS, and C301-4M/SS). *Use for cable fixing sets in stainless steel finish only.

Frequently Bought Together with:

1.5mm Cable Suspension Kit with Ceiling Fixing – 2.0M (6' 5-3/4") Long (*Stainless Steel)

Cable Suspension Kit includes: Cable and Top Fixing w/Standard Base Support in Stainless Steel Finish. Use with Optional Base Supports in 25mm, 38mm or 50mm diameters.

1.5mm Cable Suspension Kit with Ceiling-to-Floor Fixings – 4.0M (13' 1-1/2") Long (*Stainless Steel)

Cable Suspension Kit includes: Top and Bottom Fixings with Spring Tensioner and Standard Base Supports in Stainless Steel Finish. Use with Optional Base Supports in 25mm, 38mm or 50mm diameters.

3mm Cable Suspension Kit with Ceiling-to-Floor Fixings – 4.0M (13' 1-1/2") Long (*Stainless Steel)

Cable Suspension Kit includes: Top and Bottom Fixings with Spring Tensioner and Standard Base Supports in Stainless Steel Finish. Use with Optional Base Supports in 25mm, 38mm or 50mm diameters.

#10 x 2 in, Flat Head, Stainless Steel Screw

Use with 25mm, 38mm or 50mm diameter base supports for cable/rod systems, or wall mounts, standoffs and edge grips.

Availability: In stock

Product Description

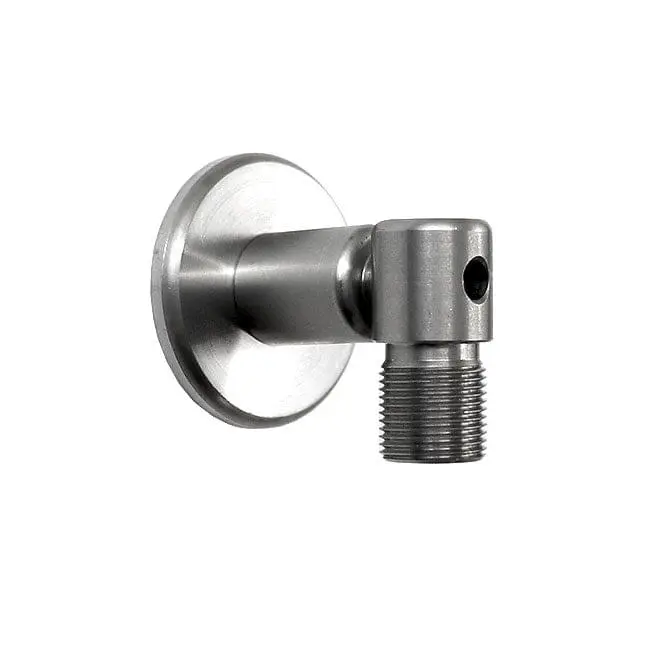

Top/Bottom Base Support with Ball-Joint Swivel Coupling for Cable Systems – 38mm (1-1/2″) Diameter Base (*Stainless Steel)

Optional Base Support with Adjustable Angle Coupling for use with 1.5mm and 3mm diameter cable suspension sets (C100-2M/SS, C101-4M/SS, and C301-4M/SS). *Use for cable fixing sets in stainless steel finish only.

Attributes

Top Fixing

Load Limits

Compatibility

Weight

Mounting Options

Materials

Finish

Availability


Specifications for CB-50/SS

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all cable display fittings and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.

Colors and Finishes:

Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor and outdoor use. Our stainless steel cable system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.

Quality/Warranty:

Cable fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
