1.5mm Cable with Top-Crimp – 8M (26′-2″) Long (*Stainless Steel)

$23.80

Use as cable replacement for overhead or ceiling-to-floor cable fixing kits.

Out of stock

Product Description

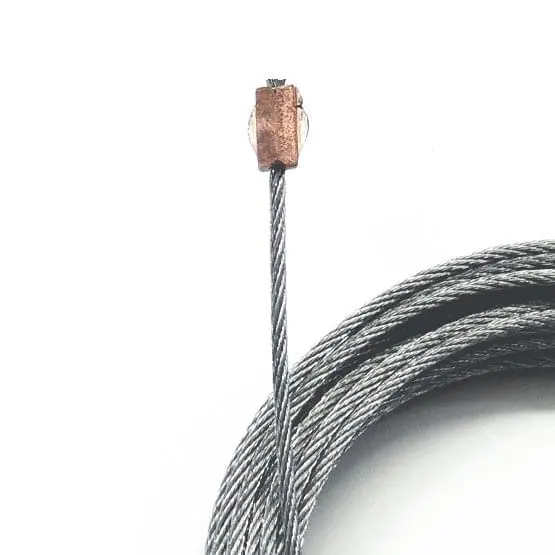

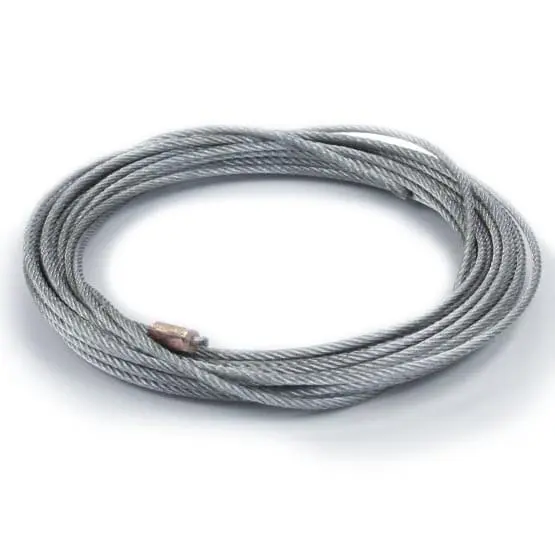

1.5mm (1/16″) Diameter Stainless Steel Cable with Hexagonal Die-Cast Crimping at one end — 8M (26′-2″) Long

The BC8/SS replacement wire/cable is supplied with a factory crimped end and comes in 8 meters (26′ 2″) length, which can be conveniently adjusted or trimmed on-site during installation. Crafted from high-quality stainless steel, the cables are designed to withstand fraying, kinking, and snapping, ensuring long-lasting performance. Each cable’s construction features 19 steel strands encasing a single steel wire core, resulting in a strong yet flexible assembly with superior abrasion resistance. This design allows for an impressive weight capacity of up to 120 kg (264 lbs) for vertical installations.

Explore All Cable Fixing Kits

Attributes

Cable Length

Load Limits

Compatibility

Weight

Mounting Options

Material Thickness

Materials

,

Finish

Allen Wrench Size

Availability


Specifications for BC8

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

Cables used in assemblies are made from galvanized steel and are resistant to fraying, kinking or snapping. Cables have a 7 × 7 configuration: seven individual wires twisted into seven different layers/rows to make a total construction composed of 49 wires. This creates a durable construction with high flexibility and abrasion resistance. Cable fixings are made from a brass alloy, UNS C37710/ASTM B124. Cables are provided with spring tensioners—cable will not slacken with temperature changes; easily adjusted without tools.

Colors and Finishes:

Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Quality/Warranty:

Cables are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
