1.5mm Cable Suspension Kit with Wall-to-Floor Fixings – 3.0M (9′ 10″) Long (*Stainless Steel)
$54.80
Availability: In stock
Product Description

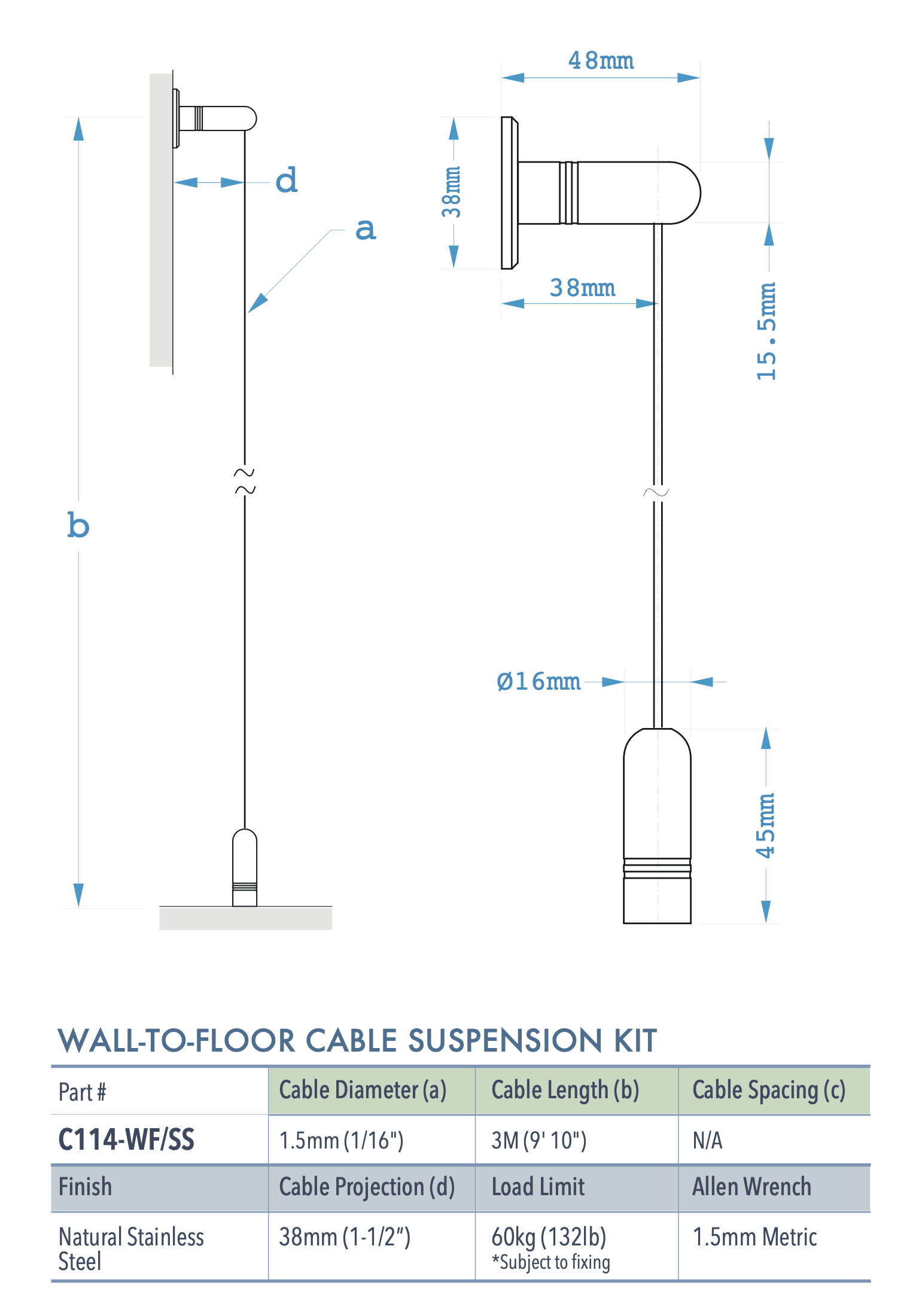

1.5mm (1/16″) Dia. Cable Suspension Kit with Wall-to-Floor Fixings – 3.0M (9′ 10″) Long (#304 Stainless Steel)
The C114-WF/SS stainless steel cable suspension/wire hanging kit includes a factory top-crimped cable, a wall fixing with 38mm (1-1/2″) diameter base, and a bottom/floor adjustable spring tensioner base. It is primarily designed for typical wall-to-floor suspended applications and display installations. The kit comes with cables available in 4 meters (13′ 1-1/2″), which can be conveniently adjusted or trimmed on-site during installation.
The C114-WF/SS cable suspension/wire hanging kit combines minimalist aesthetics with robust engineering, offering both flexibility and durability. Crafted from high-quality stainless steel, the cables are designed to withstand fraying, kinking, and snapping, ensuring long-lasting performance. Each cable’s construction features 19 steel strands encasing a single steel wire core, resulting in a strong yet flexible assembly with superior abrasion resistance. This design allows for an impressive weight capacity of up to 120 kg (264 lbs) for vertical installations. However, for wall-mounted applications, we recommend adhering to a safety working load limit of 60 kg (132 lbs) per cable to ensure optimal security and longevity. The versatile 1.5mm (1/16″) diameter cable is compatible with a wide range of standard or specialty supports, making it ideal for various display and presentation needs. It can effectively hold graphic panels, literature displays, decorative panels and screens, aluminum or wood frames, graphic holders, and horizontal rods for fabrics. This versatility allows for creative and functional solutions in retail environments, exhibitions, office spaces, and other commercial or residential settings where sleek, adaptable display systems are desired.
Additionally, the C114-WF/SS cable suspension/wire hanging kit is compatible with a range of accessories, such as info/poster acrylic holders, acrylic frames, brochure and literature acrylic holders, magazine and book acrylic holders, and sloped acrylic shelves.
Attributes
| Cable Length | |
|---|---|
| Top Fixing | |
| Bottom Fixing Tensioner | |
| Load Limits | |
| Compatibility | Use with any 1.5mm Stainless Steel Cable Panel, Frame or Specialty Support Fittings |
| Weight | |
| Mounting Options | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
Cables used in assemblies are made from stainless steel and are resistant to fraying, kinking or snapping. Cables have a 7 × 7 configuration: seven individual wires twisted into seven different layers/rows to make a total construction composed of 49 wires. This creates a durable construction with high flexibility and abrasion resistance. Cable fixings and internal components are made from #SS303 stainless steel alloy. Cables are provided with spring tensioners—cable will not slacken with temperature changes; easily adjusted without tools. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.
Colors and Finishes:
Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor and outdoor use. Our stainless steel cable system performs well in both closed and open environments as long as it is not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Cables are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
