PANEL SUPPORT SINGLE – For panels up to 10mm (3/8″) thick. (Use with 1.5mm Cables)
Original price was: $6.40.$5.76Current price is: $5.76.
Use with 1.5mm Cable Hanging System to support acrylic pockets, signs and graphic panels from sides.
Availability: In stock
Product Description

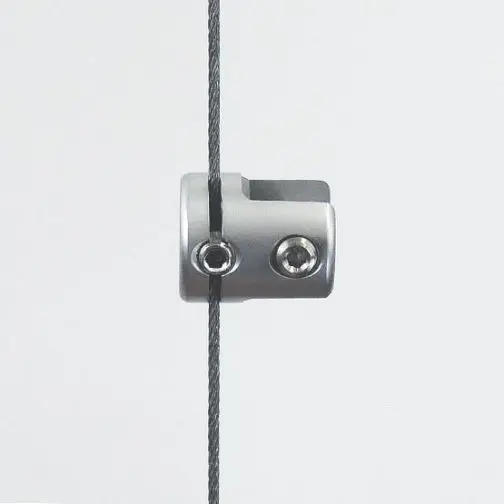

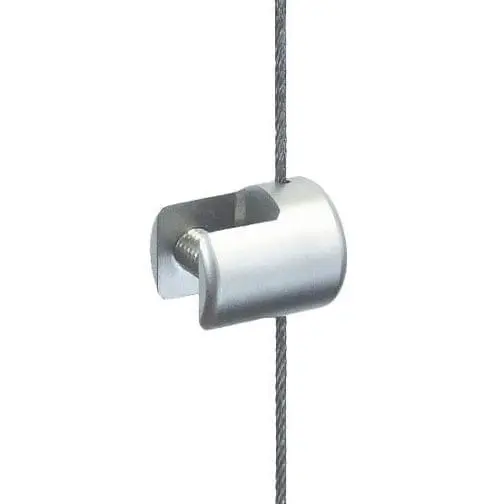

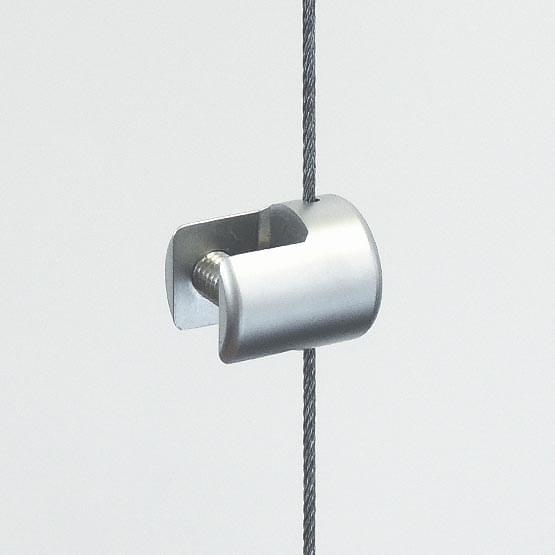

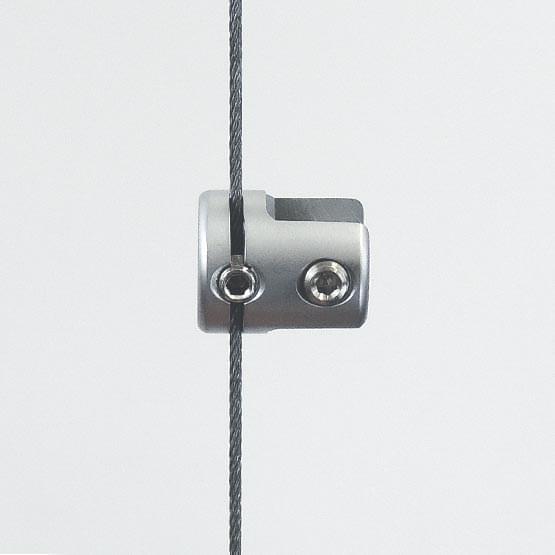

Cable Panel Support Single-Sided — Vertical Grip-Support
The CP103 cable side clamp support features a 18mm (45/64″) diameter round profile fitting, designed for suspending medium to large size vertical panels up to 10mm (3/8″) thick. This high-quality single-sided panel display clamp is made of solid brass and is compatible with our 1.5mm cable display system / hanging hardware kits.
The side clamps are great for supporting acrylic frames, decorative screens, partition walls, privacy screens, dividers, acoustic wall panels, window displays, sign blanks, logo panels, and large graphic panels from the sides. Attaching the clamp supports to suspended panels is easily done by affixing them to substrate sides with the specially designed nylon-tipped grub screw. The entire assembly is then attached to cables and securely locked into the desired position with the set screws and supplied hex key.
Key Features:
• Single-sided vertical-grip clamp support for non-drilled panels
• Use at least four clamp supports per panel (larger panels may require 3-4 supports per side)
• Made of solid brass alloy with satin chrome finish
• Clamp supports grip onto panels up to 10mm (3/8″) thickness
• Recommended Safety Load Limits per Fitting: 12kg (25lb)
• Nylon-tipped grub screws securely fasten the panels and protect the surfaces from damage
• Works with a wide range of materials, such as acrylic, laminated glass, tempered glass, felt panels, PVC, foam-core, wood, etc.
• Compatible with 1.5mm (1/16″) diameter cable suspension system
Explore All Mounting Options ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Load Limits | |
|---|---|
| Compatibility | Use with 1.5mm (1/16") Dia. Cables to Suspend Acrylic Pockets, Signs or Graphic Panels. |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |

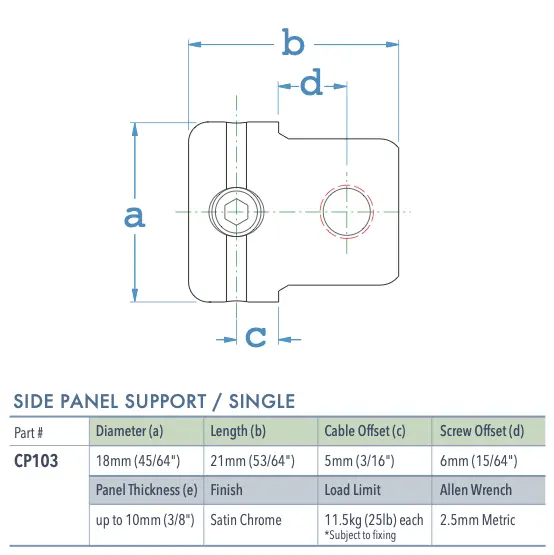

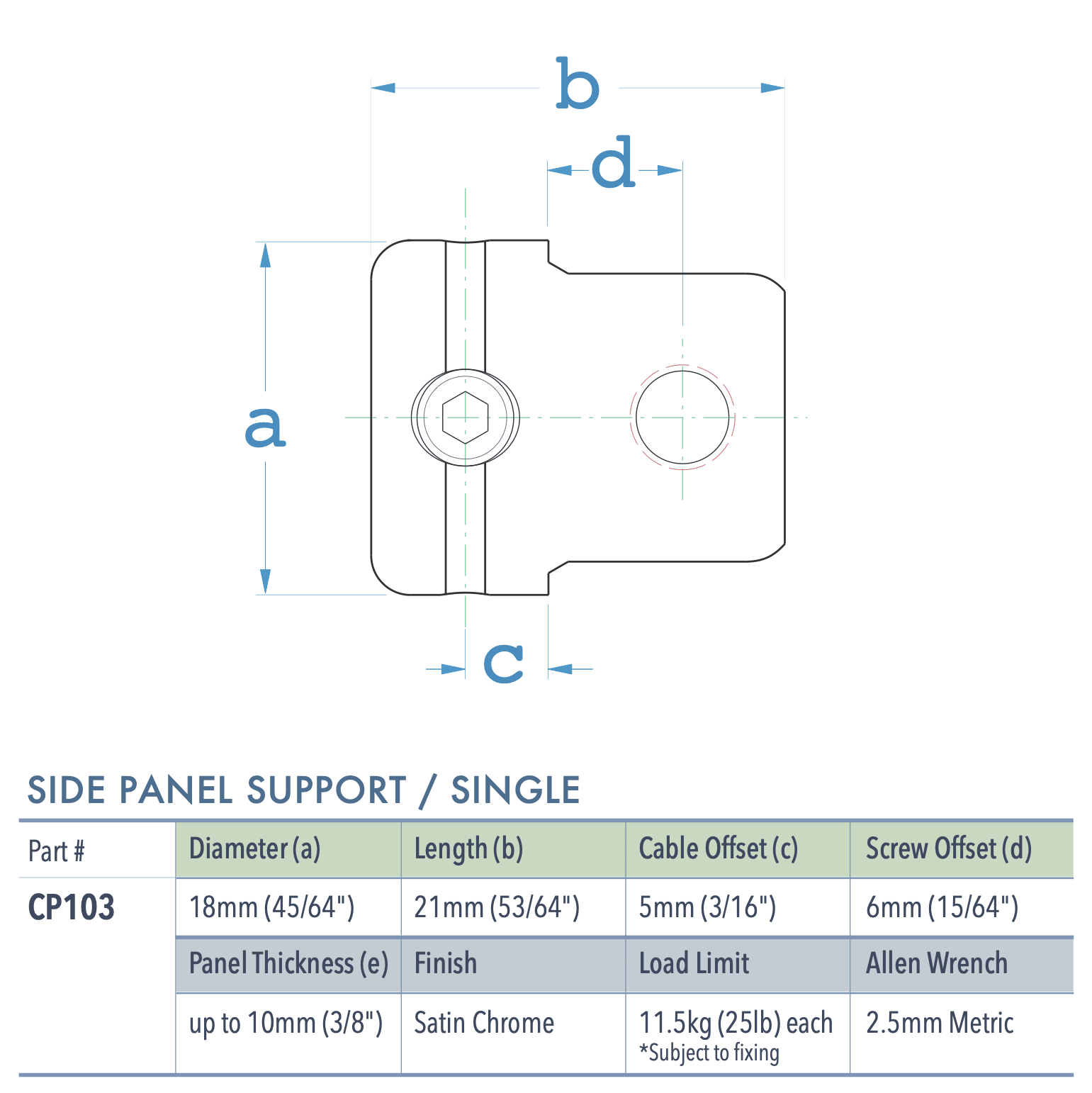

DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all cable display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors and Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Cable fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components
