PANEL SUPPORT DOUBLE – For panels up to 4mm (5/32″) thick. (Use with 1.5mm Cables)
Original price was: $5.15.$4.12Current price is: $4.12.
Use with 1.5mm Cable Hanging System to support acrylic pockets, signs and graphic panels from sides.
Availability: In stock
Product Description

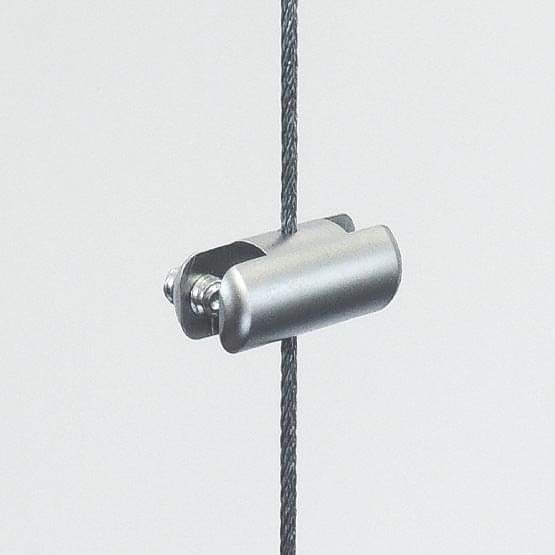

Cable Panel Support Double-Sided — Vertical Grip-Support
The CG04 cable side clamp support features a 10mm (3/8″) diameter round profile fitting, designed for suspending small size vertical panels up to 4mm (5/32″) thick. This high-quality double-sided panel display clamp is made of solid brass and is compatible with our 1.5mm cable display system / hanging hardware kits.
The side clamps are great for supporting info/poster acrylic holders, acrylic frames, literature acrylic holders, menu boards, window displays, sign blanks, and small graphic panels from the sides. Attaching the clamp supports to suspended panels is easily done by affixing them to substrate sides with the grub screw. The entire assembly is then attached to cables and securely locked into the desired position with the set screws and supplied hex key. Use the double-sided supports to link together adjoining panels that share a single cable.
Key Features:
• Double-sided vertical-grip clamp support for non-drilled panels
• Use at least two clamp supports per panel at the joined side
• Made of solid brass alloy with satin chrome finish
• Clamp supports grip onto panels up to 4mm (5/32″) thickness
• Recommended Safety Load Limits per Fitting: 6.8kg (15lb)
• Grub screws with cup point securely fasten the panels
• Works with a wide range of materials, such as acrylic, PVC, styrene, gator-board, foam-core, etc.
• Compatible with 1.5mm (1/16″) diameter cable suspension system
Explore All Mounting Options ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Load Limits | |
|---|---|
| Compatibility | Use with 1.5mm (1/16") Dia. Cables to Suspend Acrylic Pockets, Signs or Graphic Panels. |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all cable display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors and Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Cable fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components
Installations Instructions
How to Install CG04 Vertical Support Double-Sided ❯ DOWNLOAD THE PDF HERE.
