SUPPORT FOR PANELS WITH HOLES DOUBLE – For panels up to 5-6mm (3/16″-15/64″) thick. (Use with 1.5mm Cables)
Original price was: $9.60.$8.64Current price is: $8.64.
Use for supporting signs and graphic panels 5-6mm (3/16″-15/64″) thick. Panel hole size diameter 6mm (15/64″). Use with 1.5mm (1/16″) Dia. Cables Suspensions. *Supports for thicker panels are also available.
Availability: In stock
Product Description
Cable Support with M4 Stud-Cap — Double-Sided Cable Standoff Support for Panels with Holes
• Double-sided cable standoff support for drilled panels
• Recommended use of two to four supports per panel depending on size (larger panels may require 3-4 supports per side)
• Made of solid brass alloy with satin chrome finish
• Compatible with 5-6mm (3/16″-15/64″) thick panels (see options for thicker substrates)
• Recommended Safety Load Limit per Fitting: 12kg (25lb)
• Nylon washers available for use with glass panels
• Works with a wide range of materials, including acrylic, tempered glass, PVC, foam-core, wood, etc.
• Compatible with 1.5mm diameter cable suspension system
Explore All Mounting Options ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Load Limits | |
|---|---|
| Compatibility | Use with 1.5mm (1/16") Dia. Cables to Suspend Signs and Graphic Panels. |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |

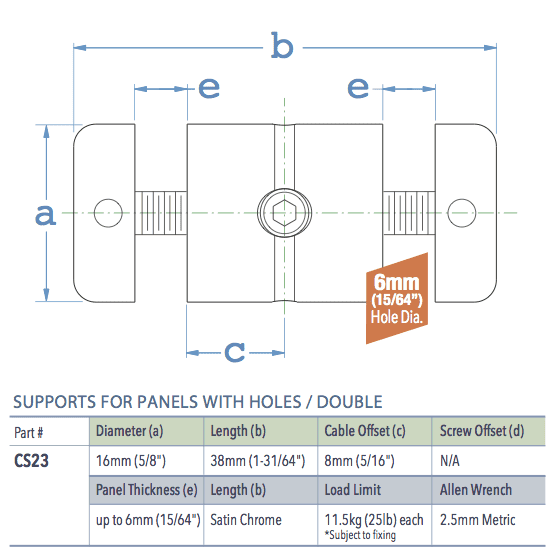

DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all cable display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors and Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Cable fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components
