SUPPORT DOUBLE for P02 Boss (Use with 1.5mm Cables)

$8.20

Use with 1.5mm Cable Hanging System to support wood panels, shelves or display cases.

Frequently Bought Together with:

SUPPORT SINGLE for P02 Boss (Use with 1.5mm Cables)

Use with 1.5mm Cable Hanging System to support wood panels and shelves, display cases, or clothing/hanging rails.

BOSS for use with Supports

Use with CS03, CS04, CS03-3, CS04-3, RS03, RS04, RS03-10, or RS04-10 Cable/Rod Fittings

Availability: In stock

Product Description

Cable Support for P02 Boss Double-Sided — Wood Panel/Shelf Support

The CS04 cable boss support features a 16mm (5/8″) diameter round profile fitting, designed for suspending wood panels, shelves, or any item fitted with a boss and screw (ref. P02). This high-quality double-sided panel/shelf support is made of solid brass and is compatible with our 1.5mm cable display system / hanging hardware kits.

The boss supports are excellent for hanging wooden panels, shelves, display cases, cabinets, and other custom suspended wood or metal fixtures. Attaching the boss supports to suspended panels or shelves is easily accomplished by affixing them to the edges of the panels or shelves with the P02 boss and a #10 screw or bolt. The entire assembly is then attached to cables and securely locked into the desired position with set screws and the supplied hex key. Use the double-sided boss supports to link together adjoining shelves that share a single cable.

Key Features:
• Double-sided boss support for wooden panels and shelves
• Ideal for hanging thick panels, shelves, or display cases
• Use at least two clamp supports per shelf at the joined side
• Made of solid brass alloy with a satin chrome finish
• Boss supports are recommended for panels or shelves that are over 20mm (3/4″) in thickness
• Recommended safety load limit per fitting: 12kg (25lb)
• Works with a wide range of materials, such as wood, plywood, metal, aluminum composite, etc.
• Compatible with 1.5mm (1/16″) diameter cable suspension system

Explore All Mounting Options

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

Attributes

Load Limits

Compatibility

Weight

Dimensions

Mounting Options

Material Thickness

Materials

Finish

Allen Wrench Size

Availability

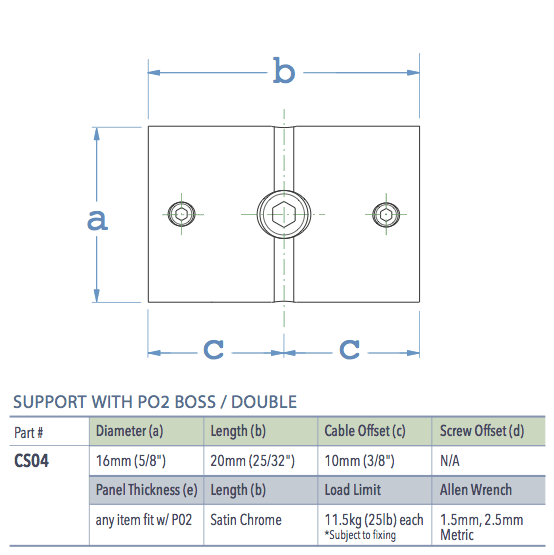

Specifications for CS04

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all cable display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.

Colors and Finishes:

Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Quality/Warranty:

Cable fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components

Installations Instructions

How to Install CS04 Support Double-Sided for P02 Boss ❯ DOWNLOAD THE PDF HERE.
