MULTI-POSITION SUPPORT for 6mm Sloped Rod (Use with 1.5mm Cables)
Original price was: $10.80.$9.72Current price is: $9.72.
Use with 1.5mm Cable Hanging System to create angled presentations or support custom design fixtures.
Availability: In stock
Product Description
Multi-Position Cable Support for 6mm Rod / Front Mount — Support for Sloped Rod

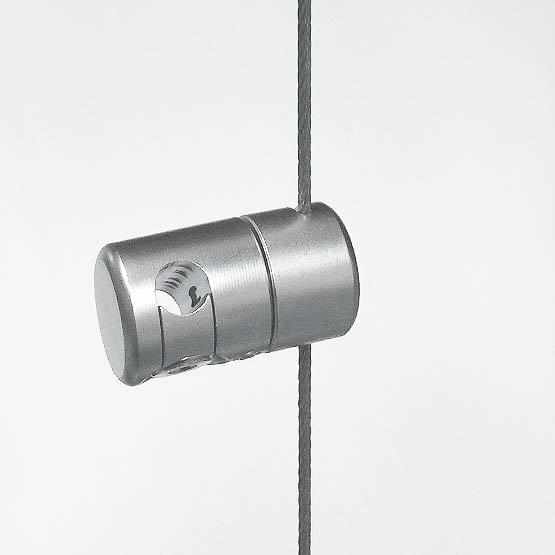

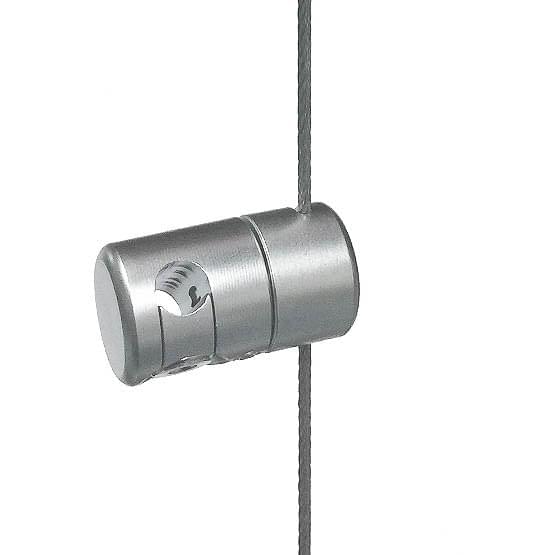

The CS07 multi-position cable rod support features a 16mm (5/8″) diameter round profile fitting, designed for holding a 6mm (1/4″) rod horizontally or at an angle between two vertically suspended cables. The fittings are adjustable to any angle and can be locked into position. This high-quality rod support is made of solid brass and is compatible with our 1.5mm cable display system / hanging hardware kits.

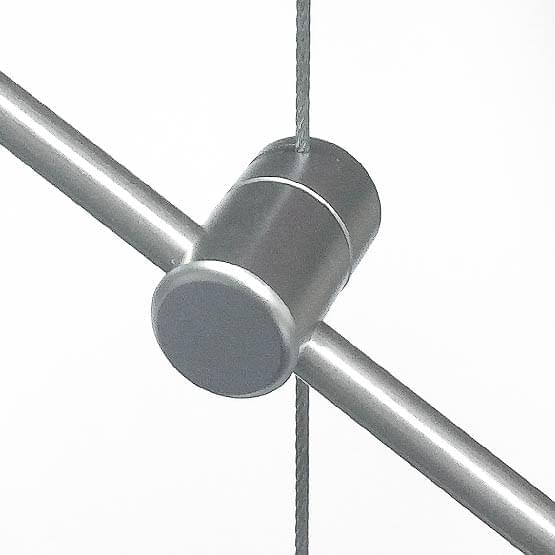

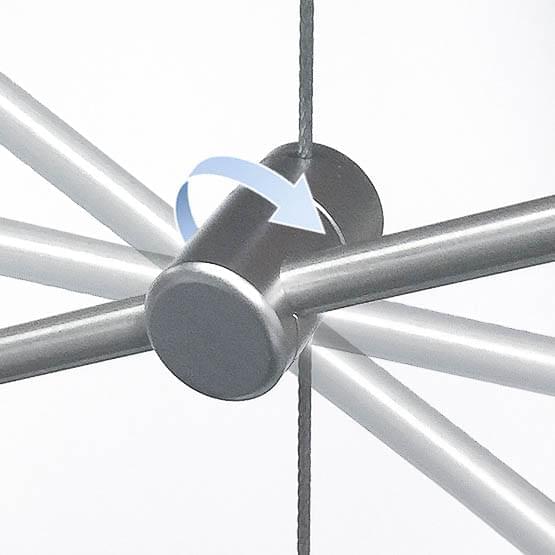

The pivoting angle rod supports with rods are ideal for creating angled presentations or supporting custom design fixtures and exhibit items. Attaching the rods to cables is easily accomplished by inserting the rods into the cable support fitting and securing them with the set screw. The entire assembly is then attached to cables and securely locked into the desired position with set screws and the supplied hex key. The supports swivel to any angle and are locked in place by a set screw.
Key Features:
• Multi-position rod supports for cables are recommended for use with non-threaded or threaded rods in lengths of 0.5m (1′ 7-11/16”), 1.0m (3′ 3-3/8”), and 1.5m (4′ 11-1/16”).
• Use threaded rods joined together to create long displays (that will require multiple cable supports along the length).
• Use the 6mm horizontal rods with lightweight items only (to display heavier merchandise, use 10mm rods or hanging rails).
• Ideal for hanging angled presentations or supporting custom design fixtures.
• Made of solid brass alloy with a satin chrome finish.
• Compatible with 1.5mm (1/16″) diameter cable suspension system.
Explore All Mounting Options ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Load Limits | |
|---|---|
| Compatibility | Use with 1.5mm (1/16") Dia. Cables to Suspend Banners, Signs or Garments on Horizontal Rods |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
Graphic Holders used with cable/rod display systems are made from extruded high-grade aluminum alloy AL6063. They are sturdy, lightweight and easy to use—just snap aluminum sign holder open and closed to change the substrate.
Colors and Finishes:
Outer-Shell standard finish is Clear Satin Anodized. Gotcha-Insert comes in clear plastic.
Graphic Thickness:
AnoGotcha Graphic Holders works with substrates, including finishes and protective laminates, up to 80 points thick (3/32″, 2 mm).
Product Limitations:
For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Installations Instructions
How to Install CS07 Multi-Position Single-Sided Support for Rod / Front Mount ❯ DOWNLOAD THE PDF HERE.
