TOP PANEL SUPPORT – For panels up to 10mm (3/8″) thick. (Use with 1.5mm Cables)
Original price was: $7.80.$7.02Current price is: $7.02.
Ideal for supporting overhead signs and graphic panels from top. For panels up to 10mm (3/8″) thick. Use with 1.5mm (1/16″) Dia. Cable Suspensions.
Availability: In stock
Product Description
Cable Panel Grip-Support — Top Clamp Support for Overhead Panels
The CP107 cable top clamp support features a 18mm (11/16″) diameter round profile fitting, designed for suspending small to medium-sized overhead sign panels up to 10mm (3/8″) thick. This high-quality panel display clamp is made of solid brass and is compatible with our 1.5mm cable display system / hanging hardware kits.
The top clamps are great for supporting acrylic holders, acrylic frames, menu boards, decorative screens, partition walls, privacy screens, dividers, acoustic wall panels, window displays, sign blanks, and graphic panels from the top. Attaching the clamp supports to panels is easily done by affixing them to substrate top with the specially designed nylon-tipped grub screw. The entire assembly is then attached to suspended cables and securely locked into the desired position with the set screws and supplied hex key.
Key Features:
• Top-grip clamp support for non-drilled panels
• Use at least two clamp supports per panel (wider panels may require additional supports)
• Made of solid brass alloy with satin chrome finish
• Top clamp supports grip onto panels up to 10mm (3/8″) thickness
• Recommended Safety Load Limits per Fitting: 12kg (25lb)
• Nylon-tipped grub screws securely fasten the panels and protect the surfaces from damage
• Works with a wide range of materials, such as acrylic, PVC, foam-core, wood, etc.
• Compatible with 1.5mm (1/16″) diameter cable suspension system
Explore All Mounting Options ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Load Limits | |
|---|---|
| Compatibility | Use with 1.5mm (1/16") Dia. Cables to Suspend Overhead Signs and Graphic Panels. |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all cable display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors and Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Cable fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components
Installations Instructions

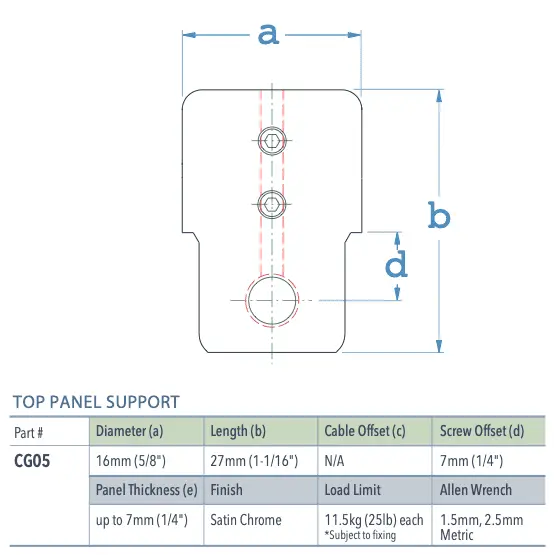

How to Install CG05 Top Panel Support ❯ DOWNLOAD THE PDF HERE.
