SHELF SUPPORT SINGLE – For shelves up to 12.7mm (1/2″) thick. (Use with 1.5mm Cables)
Original price was: $7.90.$6.72Current price is: $6.72.
Use with 1.5mm Cable Hanging System to support acrylic and glass shelves up to 12.7mm (1/2″) thick.
Availability: In stock
Product Description

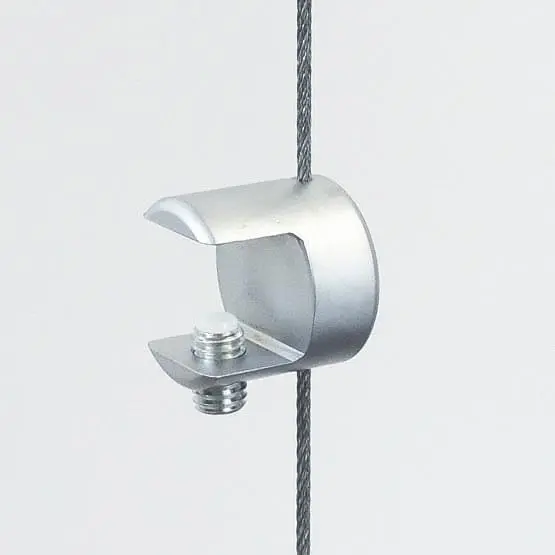

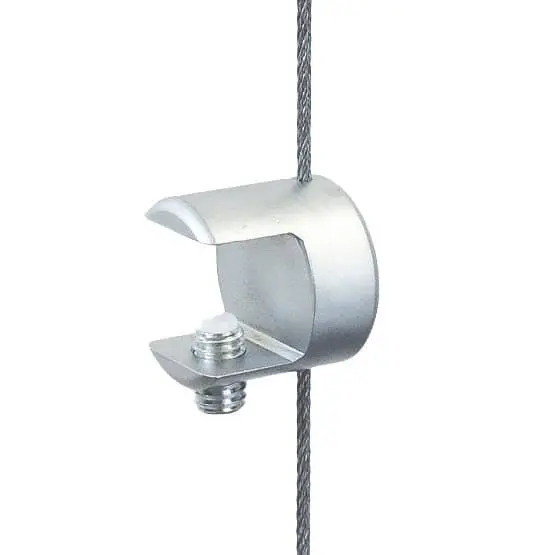

Cable Shelf Support Single-Sided — Horizontal Grip-Support
The CG15 cable shelf clamp support features a 20mm (3/4″) diameter round profile fitting, designed for suspending acrylic or glass shelves up to 12.7mm (1/2″) thick. This high-quality single-sided shelf support is made of solid brass and is compatible with our 1.5mm cable display system / hanging hardware kits.

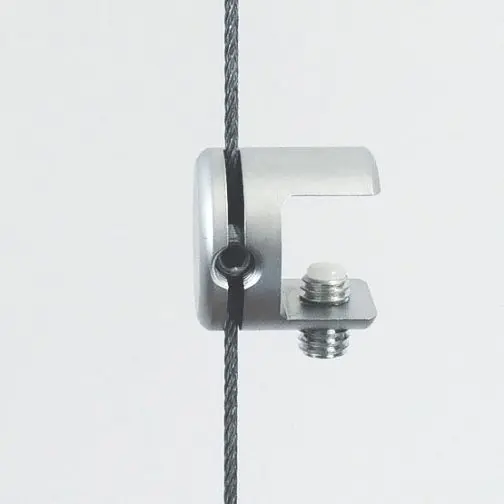

The side clamps are great for supporting lightweight acrylic shelves, flat tempered glass shelves, and other custom suspended acrylic fixtures. Attaching the clamp supports to suspended shelves is easily done by affixing them onto the shelf edge with the specially designed nylon-tipped grub screw. The entire assembly is then attached to cables and securely locked into the desired position with the set screws and supplied hex key.
Key Features:
• Single-sided shelf-grip clamp support for non-drilled shelves
• Use at least four clamp supports per shelf (longer shelves may require multiple supports fixed to front and back of the shelf)
• Made of solid brass alloy with satin chrome finish
• Clamp supports grip onto shelves up to 12.7mm (1/2″) thickness
• Nylon-tipped grub screws securely fasten the shelves and protect the surfaces from damage
• Works with a wide range of materials, such as acrylic, tempered glass, plywood, aluminum composite, etc.
• Compatible with 1.5mm (1/16″) diameter cable suspension system
Explore All Mounting Options ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

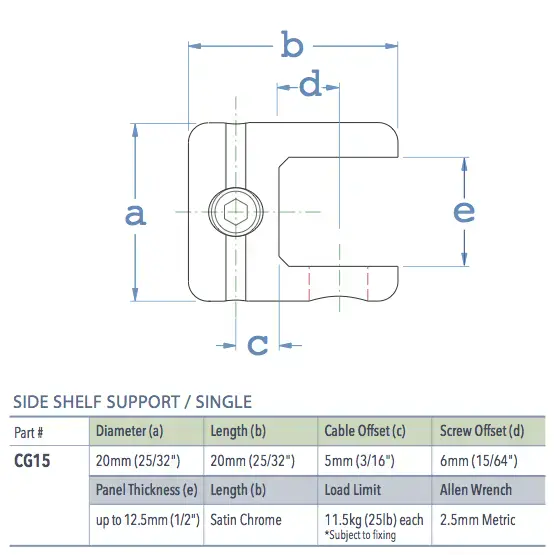

Attributes
| Load Limits | |
|---|---|
| Compatibility | Use with 1.5mm (1/16") Dia. Cables to Suspend Acrylic and Glass Shelves. |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all cable display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors and Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Cable fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components
Installations Instructions
How to Install CG15 Shelf Support Single-Sided ❯ DOWNLOAD THE PDF HERE.
