MULTI-POSITION TOP/BOTTOM SUPPORT SINGLE – For panels up to 7mm (1/4″) thick. (Use with 1.5mm Cables)
Original price was: $7.80.$7.02Current price is: $7.02.
Ideal for supporting signs and graphic panels. For panels up to 7mm (1/4″) thick. Use with panels wider than the distance between cables. Use with 1.5mm (1/16″) Dia. Cables Suspensions.
IMPORTANT: Standard Set Screws (M6 x 0.7 x 8mm) included with CG12 supports can hold 3mm (1/8″) to 6mm (1/4″) thick substrates. To accommodate thiner or thicker substrates order suitable replacement Set Screws w/Teflon Tip.
Availability: In stock
Product Description
Cable Panel Edge-Grip Support Single-Sided — Multi-Position Top/Bottom Support

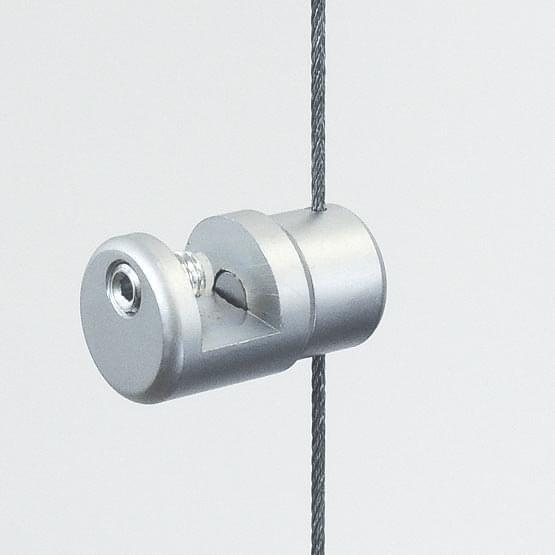

The CG12 cable multi-position edge-grip support features an 18mm (45/64″) diameter round profile fitting, designed for suspending small to medium-sized vertical panels up to 7mm (1/4″) thick. This high-quality single-sided panel gripping support is made of solid brass and is compatible with our 1.5mm cable display system / hanging hardware kits.

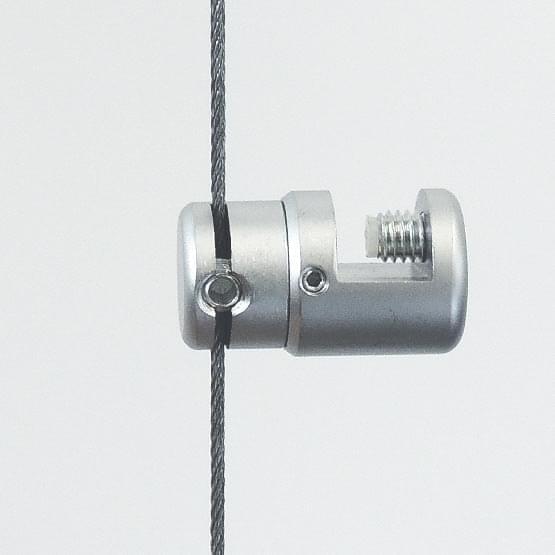

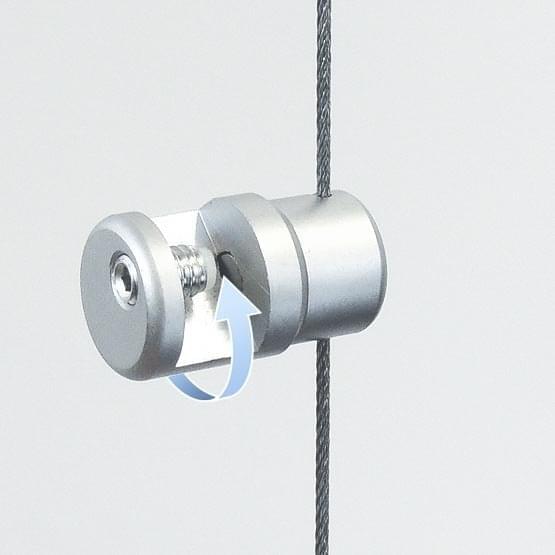

The adjustable angle edge-grip supports are ideal for supporting acrylic frames, window displays, signs, logo panels, sign blanks, and graphic panels. Attaching the edge-grip supports to panels is easily accomplished by affixing them to the top/bottom or sides of the substrate using the specially designed nylon-tipped grub screw. The entire assembly is then attached to suspended cables so the panel is mounted in front of the cables, securely locked into the desired position with set screws using the supplied hex key.
Key Features:
• Single-sided multi-position edge-grip support for non-drilled panels
• Recommended use of at least four supports per panel (larger panels may require additional supports per panel width)
• Made of solid brass alloy with satin chrome finish
• Clamp supports grip onto panels up to 7mm (1/4″) thickness
• Recommended Safety Load Limit per Fitting: 12kg (25lb)
• Nylon-tipped grub screws securely fasten the panels and protect surfaces from damage
• Works with a wide range of materials, such as acrylic, tempered glass, PVC, foam-core, wood, etc.
• Compatible with 1.5mm (1/16″) diameter cable suspension system
Explore All Mounting Options ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Load Limits | |
|---|---|
| Compatibility | Use with 1.5mm (1/16") Dia. Cables to Suspend Signs and Graphic Panels. |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |

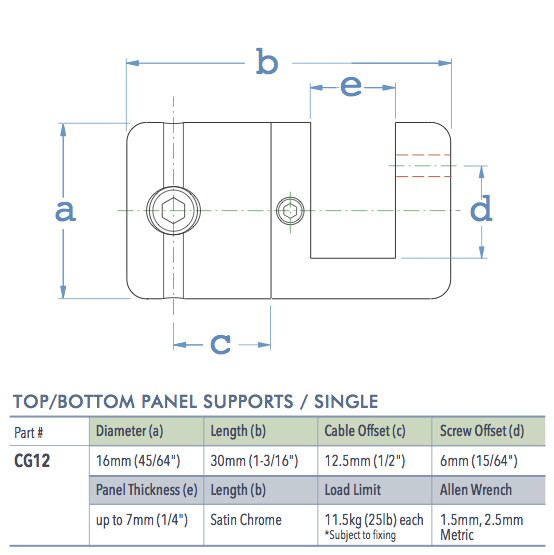

DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all cable display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors and Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Cable fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components
