Product Description

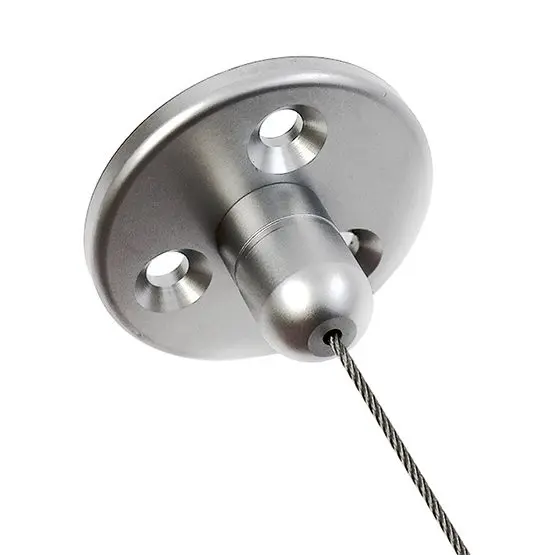

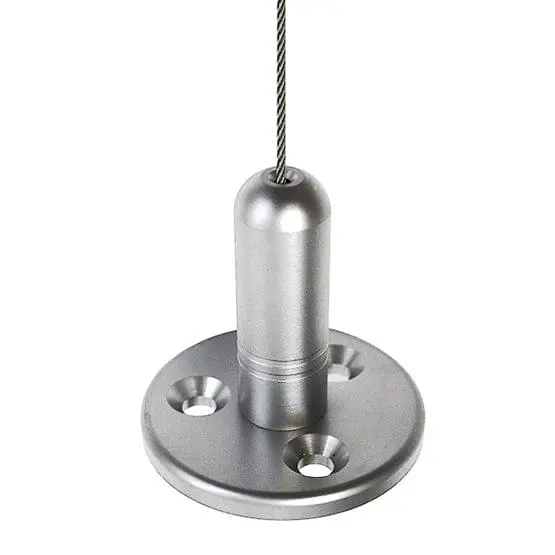

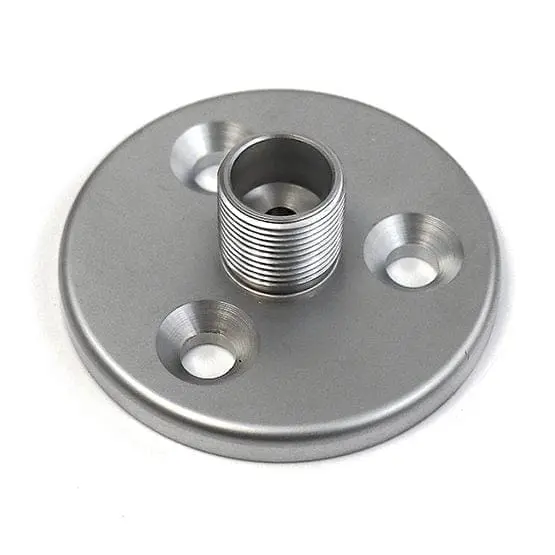

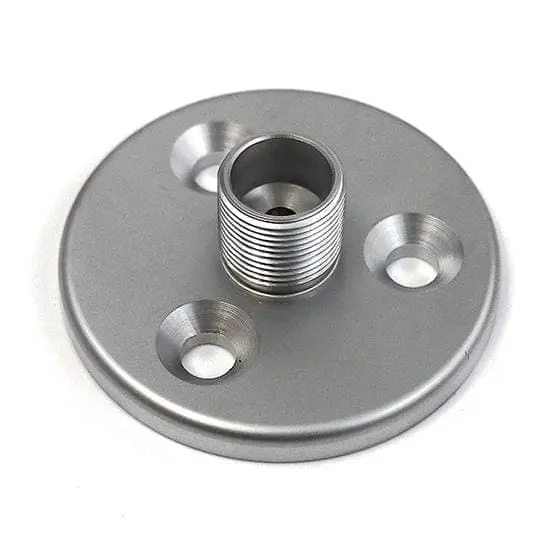

Heavy-Duty Base Support – 50mm (2″) Dia.
The CB-50 heavy-duty base support is compatible with our expo style cable fittings and cable kits. The base supports are made of robust solid brass alloy. When properly secured to the ceiling, they can provide exceptional weight support and stability. The entire assembly with connected cables or rods can support up to 200 kg (441 lbs) per fixing point (for ceiling applications, subject to fixing to studs or solid structure). Optional base supports are available in 25mm (1″) and 38mm (1-1/2″) diameters.
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Top Fixing | |
|---|---|
| Load Limits | |
| Compatibility | Use as optional base support for C100-2, C101-4 and C113-3 cable sets |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Materials | |
| Finish | |
| Availability |

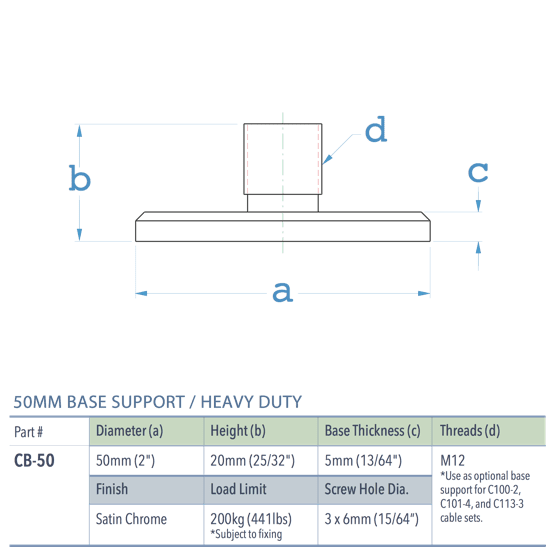

DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all cable display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors and Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Cable fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components
